Home > Products > Keystone Jack > UTP Female to Female Cat6 keystone jack

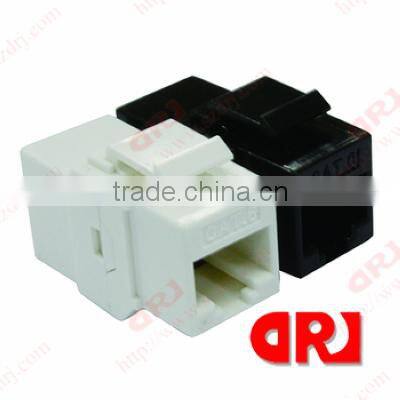

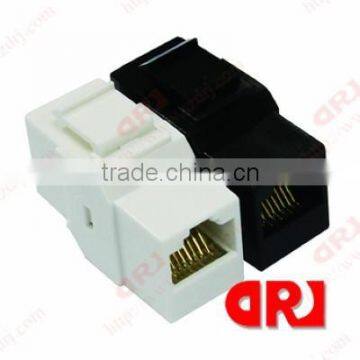

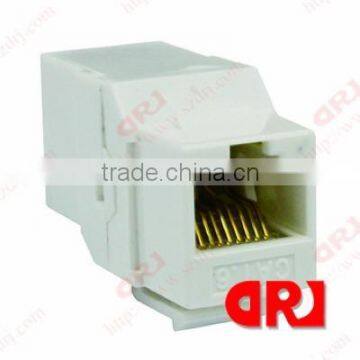

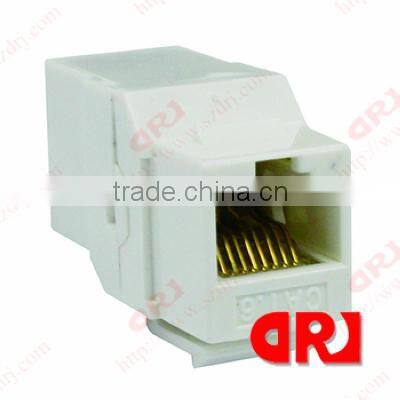

UTP Female to Female Cat6 keystone jack
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DRJ | Model Number: | K6U-034 |
Type: | RJ45 | Application: | Other, Microwave, Computer/cabling system | Gender: | Female |
Product Description
keystone jack Feature:
Coupler Industry standard:
1)Coupler meet TIA-568-A and TIA/A-568-B
2)Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
3)High reliability and superior performance
Electrical:
1. Voltage rating: 125 vac RMS
2. Current rating: 1.5 amp
3. Contact resistance: 100 milliohms max
4. Insulation resistance: 1000 megohms min @ 500 vdc
5. Dielectric strength: 750 vac RMS 60Hz, 1min
Environmental:
1. Storage: -40° To +85°
2. Operation: 0° To 70°
Conform to tia/eia 568b category 3
Mates with modular plug conforming to FCC part 68, subpart f.
Mechanical:
1. Housing material: PC UL94v-0
2. Insert material: Flame retardancy ABS UL94v-0
3. PCB material: Fr-4 thickness: 1.6mm
4. Contact material: Phosphor bronze stamp pin t=0.35mm
5. Idc contact material: Phosphor bronze t=0.50mm with nickel plating
6. Wire: Awg 24-26
cat6/cat6A | black,white | rj45 to rj45 |
more than 250mhz | 3u",15u",30U'50u"gold plating | print customer's logo |

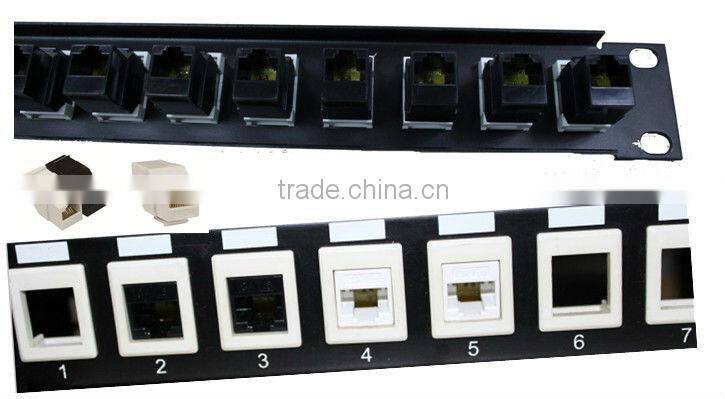

Match with blank patch panel

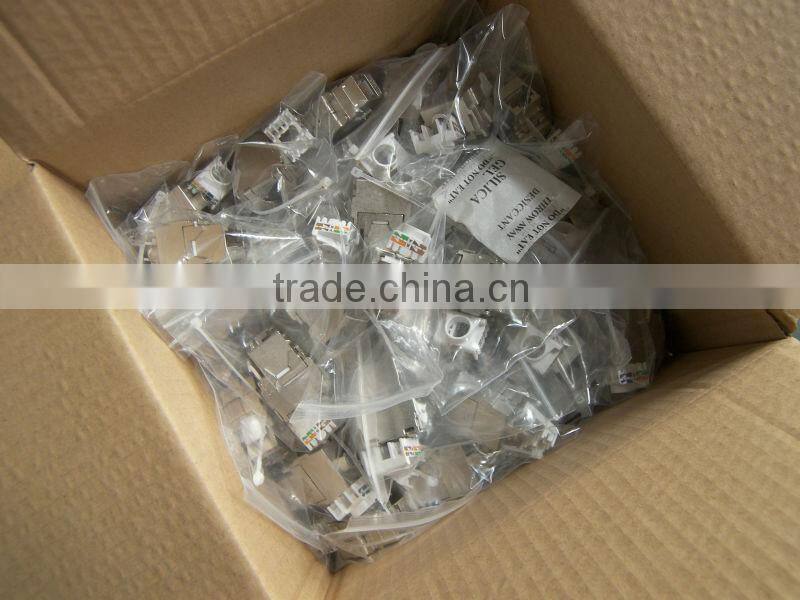

Packing Picture:
