180 Degree RJ45 Cat5e UTP Keystone Jack
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | DRJ | |
| Model Number | K5U-021 | Type | RJ45 | |
| Application | Microwave | Gender | Female |
Product Description

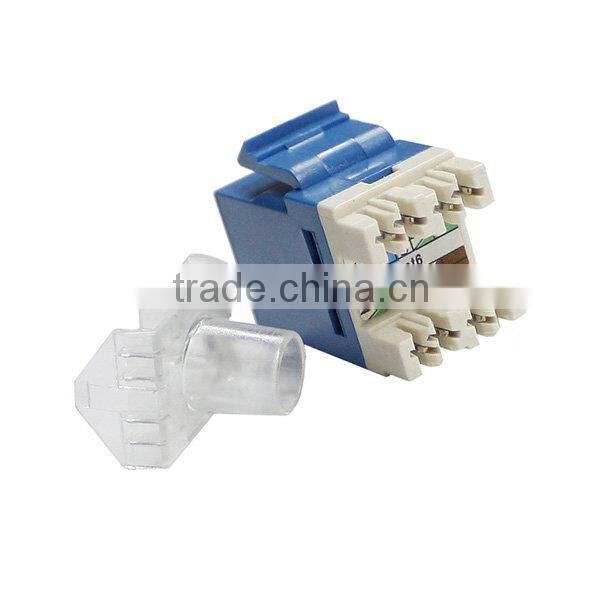

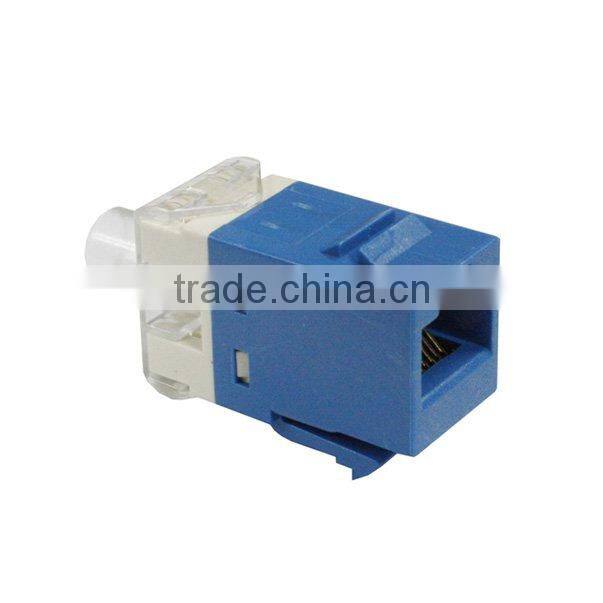

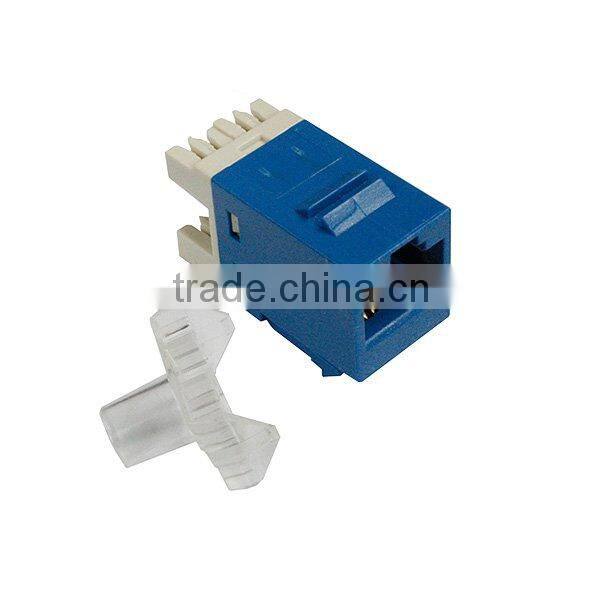

180 degree Cat5e UTP keystone jack
Discription:
Industry standard:
1)Modular jack meet TIA-568-A and TIA/A-568-B
2)Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
3)High reliability and superior performance
Electrical:
| Voltage rating: | 125 vac RMS |
| Current rating: | 1.5 amp |
| Contact resistance: | 100 milliohms max |
| Insulation resistance: | 1000 megohms min @ 500 vdc |
| Dielectric strength: | 750 vac RMS 60Hz, 1min |
Environmental:
1. Storage: -40° To +85°
2. Operation: 0° To 70°
Conform to tia/eia 568b category 3
Mates with modular plug conforming to FCC part 68, subpart f.
Mechanical:
1. Housing material: PC UL94v-0
2. Insert material: Flame retardancy ABS UL94v-0
3. PCB material: Fr-4 thickness: 1.6mm
4. Contact material: Phosphor bronze stamp pin t=0.35mm
5. Idc contact material: Phosphor bronze t=0.50mm with nickel plating
6. Wire: Awg 24-26

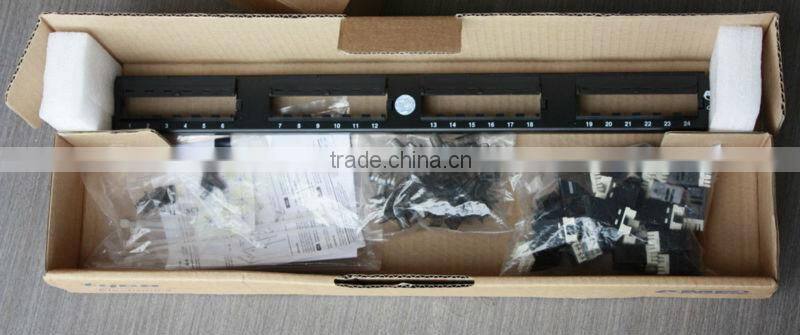

AMP Connector match with Blank Patch panel
