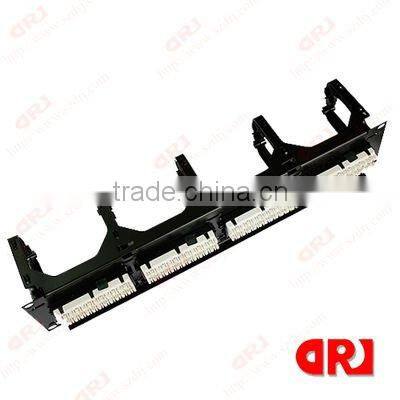

UTP cat5e 1U Distributing Frame with organizer
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | DRJ | |
| Model Number | C5U-24-KP | Type | Cat 5e | |
Product Description
Distributing Frame Description:
1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.

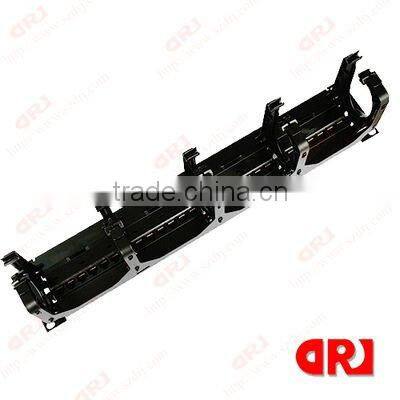

2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.
3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
| Angle: | 90,180 Degree |
| Termination: | 110 Type |
| Current rating: | 1.5 Amp Max |
| Voltage rating: | 150 Volts |
| Contact resistance: | 20 m-ohm |
| Insulation Resistance: | 500M-ohm |
| Dielectric Withstand Voltage: | 1000 V AC RMS, 60Hz 1min |
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" Gold plating on contact area.
