Specifications
electronics pcb assembly pcb printed circuit board assemblytop quality
fast delivery
12 months garantee
Reasons of choosing PCB Assembly service from ONLITEX
1.We offer all type of assembly technologies
2.We also offer manual assembly and hand soldering
3.High speed placement
4.BGA and Micro BGA capabilities
5.Fine Pitch
6.Double-sided SMT
7.Wire harness and cable assembly
8.Competitive price and low cost
9.Component range (0201,0402,0603,0805,1206)
10.Flexible and fast delivery
11.ISO9001,ROHS certified
12.Strict ESD control
| Speciafication For PCBA&pcb assembly circuit board assembly | |
| Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers |
| Number of Layer | 1,2,4 or 6,upto 18 layer |
| Board thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper thickness | 1.0oz to 2.0oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Surface Finish | HASL,Immersion Gold,Immersion Tin,Aluminum |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Max Board Dimension | 20 inch*20inch or 500mm*500mm |
| Board thickness Tolerance | ±10% |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| circuit board assemlby manufacture &PCBA OEM capabilities | |
| Type of assembly | SMT assembly ,Through hole assembly |
| Solder Type | Lead free |
| Components | 0201 upto Micro BGA |
| Files | gerber file and BOM |
| Test Provide | Yes |
| Lead time | Same day service to 15 daytime service |

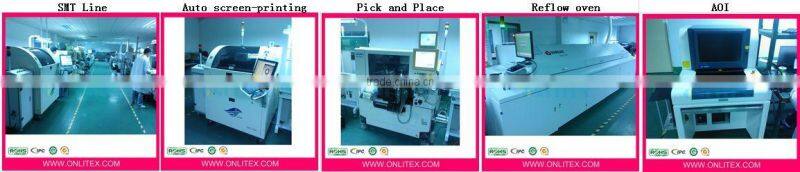

Assembly production machines
1.2x SMT Line
(6x JUKI SMT machines;2x reflow oven ;1x AOI machine;3x automatic screen-printing )
2.2x DIP Line
PCB Assembly capabilities
1.PCB Layer : 1-12L
2.PCB thickness :0.2mm-2.4mm
3.PCB material : FR4
4.Rigid and flexible PCB
5.Three High Speed JUKI Lines
6.0201 SMT placement with Micro BGA
7.Double-side PCB assembly
8.Automatic SMT
9.Strict ESD control
10.High Speed with High yield offer
11.IPC-A-610 standard
12.100% Function Test
13.More than ten years experience
PCB assembly for carton box package
Our customer give us more confidence to make our service better and better
