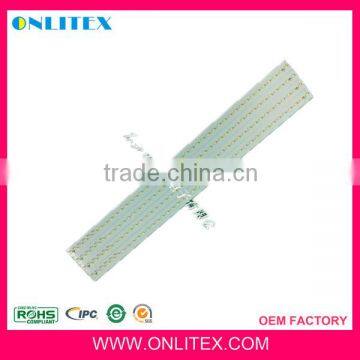

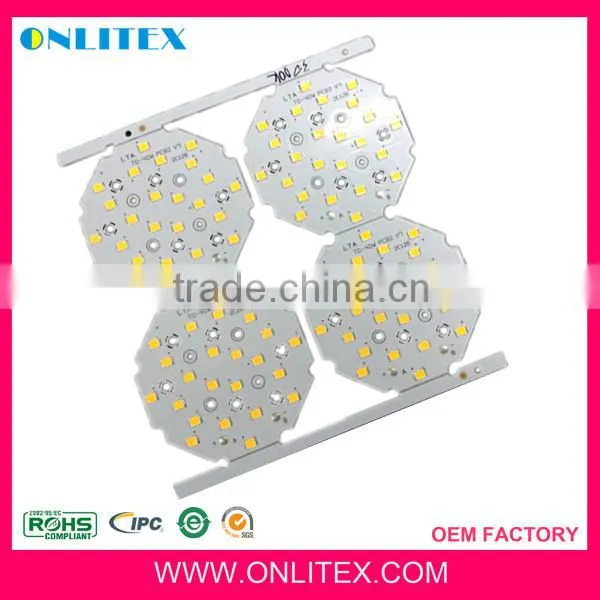

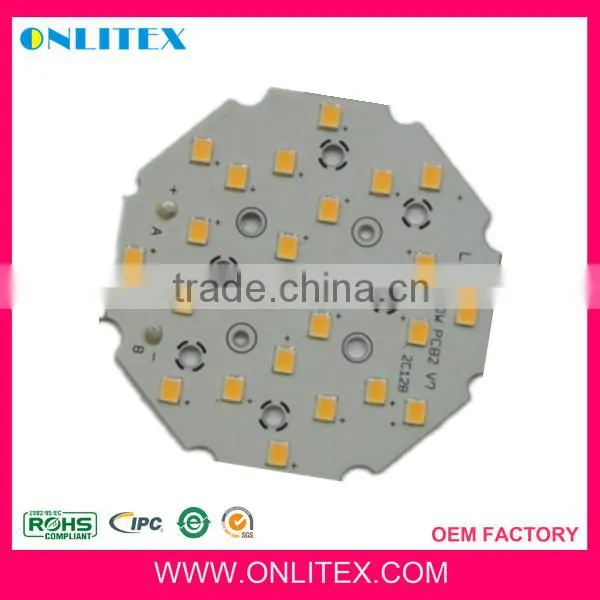

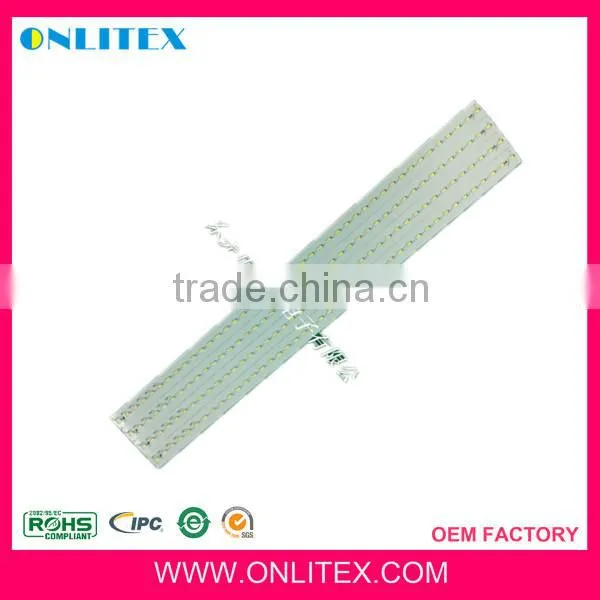

ONLITEX provide SMT led PCB aluminum Assembly manufacturing service
- Full assembly capacity to offer module and/or finished products to customer
- printed circuit board assembly experienced QC and inspector
- Strong sourcing ability in relative parts and components
- Experienced technical staffs in charge of product design
- Circuit boards 1 to 28 layers PCB layout, fabrication, PCB assembly and box build
- Enclosure cabinet case plastic injection molding, metal stamping, manufacturing and assembly
- High-precision 0201 size components SMT technology and lead-free
- RoHS compiant SMT, DIP process
- IC pre-program
- High-precision E-Tesing include: ICTin circuit, function tesst, etc.
SMT PCB aluminum Assembly Manufacturing capability
- PCB Size: 457x567cm(max);4x3cm(Min)
- IC Pitch(min):0.2mm
- Chip Size(min):0402 /1005(1.0x0.5mm)
- BGA Size:8x6mm~37x37mm
- BGA Pin Count: 48pin~600pin
- Package: SOP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA
- u-BGA Ball diameter: 0.2mm
SMT PCB Assembly Line for Production Line Overview

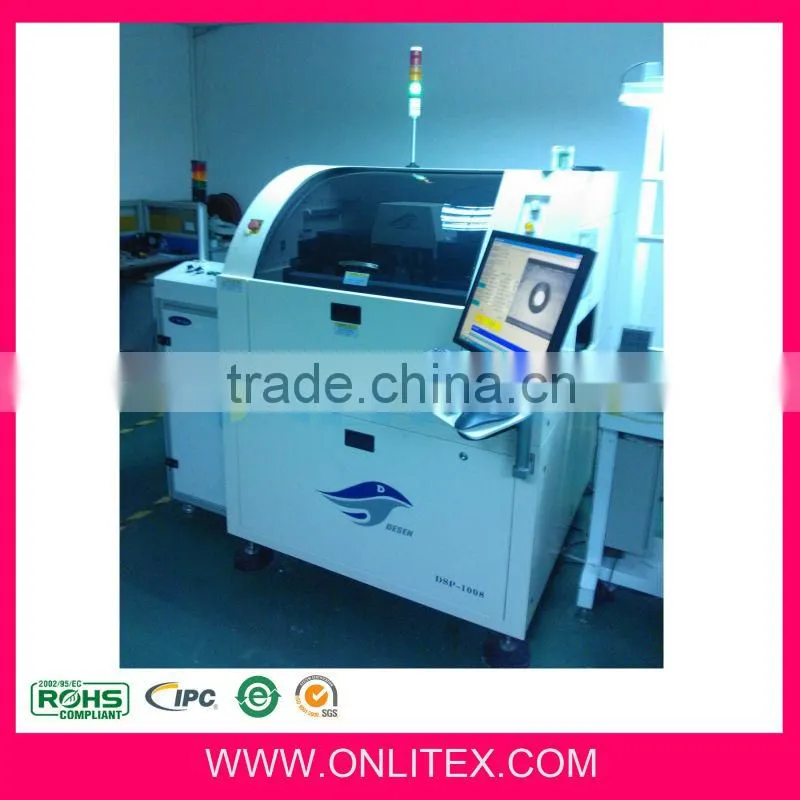

-- SMT PCB Assembly use automated screen printing machine
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

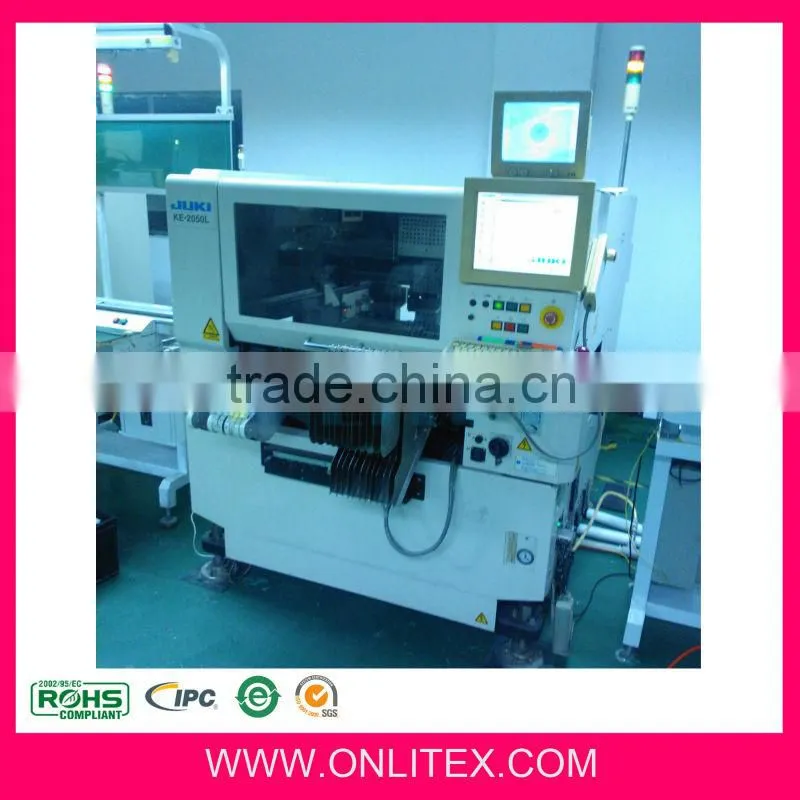

- SMT aluminum PCB assembly use high speed pick and place machines
------------------------------------------SMT aluminum PCB Assembly Line overview ------------------------------------------------------
----------------------------------------SMT aluminum PCB assembly reflow machine-------------------
-------------------------------PCB aliminum assembly Line for Hand soldering ( lead free )--------------------

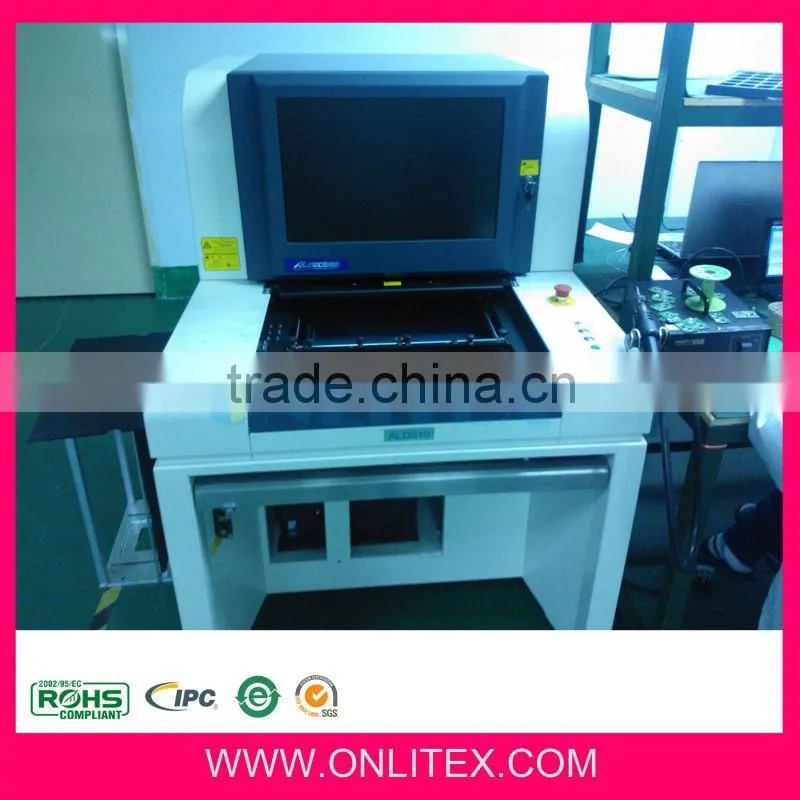

--------------------------------SMT PCB aluminum assembly Line for AOI inspection -----------------------------
our smt pcb assembly factory package
our smt pcb assembly ISO9001 certification
our smt pcb assembly factory express
Trade Term @ONLITEX Electronic
1. Payment: T/T, LC,DA,DP,Paypal.
2. Lead time: 10 working days for normal products(components less than 100pcs on pcb board).
3. Sample can be available within 8~10working days
4. Shipping freight is quoted under your requests
5. Shipping port: Shenzhen or HongKong
6. Discount is offered at large order quantities
