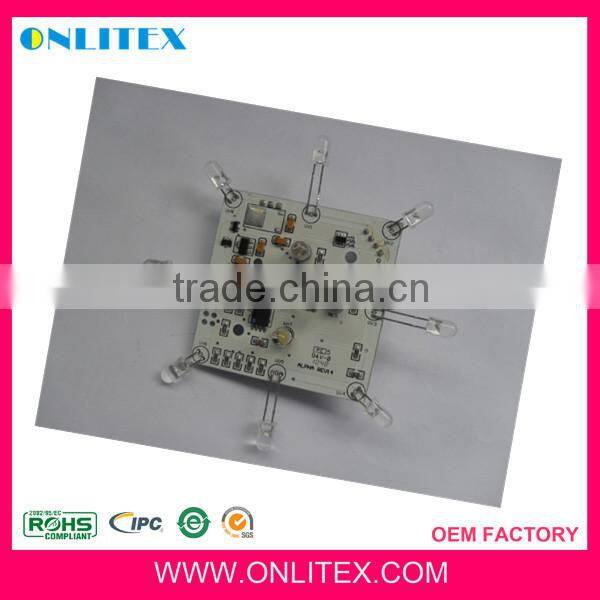

Pcba Smt Pcb Assembly,LED,Machine for Odd Form
US$ 2 - 10
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM Factory
Model Number:
LED PCBA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electronics Pcb Assembly Pcb Printed Circuit Board AssemblyUS$ 0.5 - 10MOQ: 50 Pieces -
Electronic Pcba Pcb Assembly Contract Manufacturing Printed Circuit Board Assembly ServiceUS$ 0.5 - 10MOQ: 50 Pieces
-
LED Branch Pcb Assembly Factory Offer Various Led Branch Pcb AssemblyUS$ 5 - 30MOQ: 10 Pieces
-
One-Stop SMT LED Pcb Assembly Manufacturer Provide Components Purchasing and Final AssemblyNegotiableMOQ: 100 Pieces
-
ISO Electronics PCB Assembly ServicesUS$ 0.9 - 15MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OEM Factory
Model Number
LED PCBA
Base Material
FR4
Copper Thickness
1.0oz
Board Thickness
1.6mm
Min. Hole Size
0.15mm
Min. Line Width
0.15mm
Min. Line Spacing
0.15mm
Surface Finishing
HASL
LED PCBA Assembly Factory / LED PCB Assembly / LED pcba bom gerber files
Product Description
| PCB Assembly Capability | ||
| Items | Capability | |
| 1 | Min. IC Pitch | 0.30mm(12mil) |
| 2 | Foot Pin | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
| 3 | Min. Chip Placement | 01005 |
| 4 | Max. PCB Size | 456mm x 560mm |
| 5 | Min. PCB Thickness | 0.35mm(13.8mil) |
| 6 | Maximum BGA Size | 74mm x 74mm(2.9" x 2.9") |
| 7 | BGA Ball Pitch | 1mm ~ 3mm(4mil ~ 12mil) |
| 8 | BGA Ball Diameter | 0.2mm ~ 1mm(16mil ~ 40mil) |
| 9 | QFP Lead Pitch | 0.38mm ~ 2.54mm(15mil ~ 100mil) |
| 10 | Package | Anti-static Bubble Bag & Carton |
| PCB Capability | ||
| Items | Capability | |
| 1 | Layers | 1 ~ 10 layers |
| 2 | Base Material | FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium |
| 3 | Finished Board Thickness | 0.2mm ~ 7.0mm(8mil-276mil) |
| 4 | Copper Thickness | 1/3oz ~ 7oz |
| 5 | Surface Finishing | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc. |
| 6 | Reference Standard | IPC-A-600H Class 2, Class 3, TS16949 |
| 7 | Certificate | UL, ISO9001, ROHS, SGS |
| 8 | Package | Vacuum & Carton |
| FPC Capability | ||
| Items | Capability | |
| 1 | Types | Single-sided, Double-sided, Multi-layers (max 6 layers) and Flex-Rigid PCB |
| 2 | Surface Finishing | HASL(LF), Gold plating, Electroless nickel immersion gold,Immersion Tin, OSP(Entek) |
| 3 | Base Material | Polyimide(Kapton), Polyester(PET), FR4 |
| 4 | Soldering Thermal Resistance | 300°C/10 seconds |
| 5 | Performance Test |
100% electrical and electricity performance test
|
Product show
Packaging & Shipping
Package: Inner packing: Vacuum Package
Outer packing: Standard Carton ( K=K) 46*46*26MM
Delivery time: 3-4weeks after received deposit
Our Services
| Our service |
| 1. Your inquiry related to our products or prices will be responded within 24 hours. |
| 2. Well-trained and experienced staffs to answer all your enquiries professional. |
| 3. OEM & ODM are welcomed, ODM brand is available. |
Company Information
ONLITEX privides high quality service for the OEMs to develop and implement electronics assembly program,our services are targeted globally OEMs who wish to improve profitability,flexibility,quality and return on investment by our manufacturing operations.we ensure that clients secure maximum benefit from ONLITEX service,while minimizing and overcoming unforeseen rish and issue.
Quality Policy
- Zero defect is our goal
-Satisfying customer is our responsibility
Business Policy
-Reasonable price
-Guaranteed quality
-On time delivery
-Flexible service
SMT& DIP Lines
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
