Gold washing plant spiral chute Zhengzhou Henan
Overview
1.Spiral chute separator is widely used to the separation for mineral particles, the size of which
ranges from 0.3 to 0.02 mm.
2.It can be suitable for dealing with different kinds of ores, such as iron ore, limonite, chromite, pyretic,rutile, monazite, tungsten ore, tin ore, tantalum ore, colombite ore as well as other nonferrous metal,
rare metal and nonmetal minerals of different proportions.
Working principle

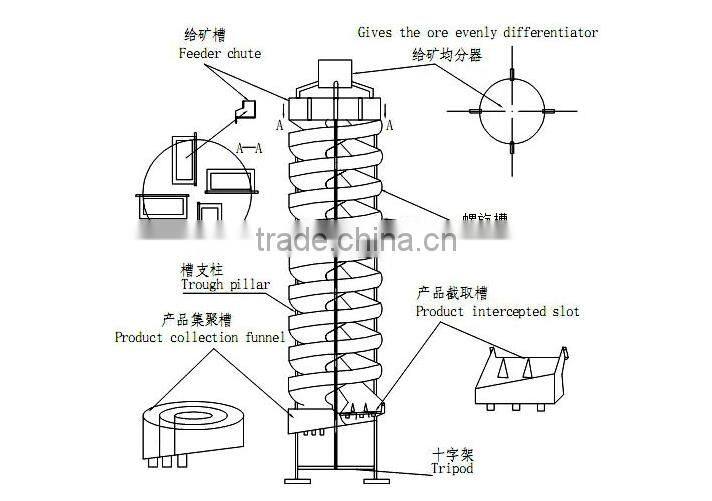

Spiral chute separator is made up of distributor ,feed chute , spiral chute, intercept chute,receiving
hopper and bracket(include cross bracket or triangle bracket)six parts etc.
Erect the spiral chute, calibrate the perpendicular line and fix it in a proper position with iron structure
or wood. Send the mineral sand with the sand pump to the two feeding mouth on the top of the spiral
chute, add makeup water to adjust the density of the ore pulp, and the ore pulp will naturally rotational
flow down and produce an inertial centrifugal force in the rotary slant flow. The gravity and the
centrifugal force will separate the ores and sand according to the proportion, granularity and shape of
the ore sand, and the ore concentrate will flow into the concentrate funnel and be discharged with the
pipe and the tailings will flow to the tailing funnel and be discharged to the sand tank with the pipe
anddrained by the sand pump to complete the whole separation process.
Basic structure and application
This equipment is suitable for separating non-ferrous metals, rare metals and non-metal ores whose granularity is 0.3--0.02 mm such as iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum and niobium ore. It is the ideal equipment for mining and ore beneficiation and especially for the mining of sand ore in the coast, riverside, beach and brook.
Features and Advantages
1.Reasonable structure, simple installation, small floor space, simple and easy operation.
2.Stable and clear classification, big processing capacity, high dressing and concentration ratio.
3.Damp-proof, rust-proof and corrosion resisting.
Technical Data
Packaging and Shipping
Our payment Term:
1. We usually accept T/T, L/C;
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Ways of Packing:
1. Sand blasting, coat with high quality paint;
2. Product wrap by PP-Bubble;
3. Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE;
3. We will remind you before boat arrival.
Company Information
Henan Fote Heavy Machinery Co., Ltd covers an area of 100,000 square meters which includes 60,000 square meters of heavy duty workshops. We have more than 200 sets of large and medium sized metal processing equipments. The Maximum lifting capacity is 300 tons.
Quality Control
Quality is our moral category, our products are worth it's price, products are our moral standing, we firmly believe that we would be punished by the market without good quality.
International Communication
Green industry and internationalization is the strategic thought of Fote. We tries best to integrate the advanced technology, excellent talents and advanced concep into the company development, which will give support to the pace, stragegy and development of Fote's internationalization and make our business partners use the most suitable products.
Our Services
1>Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>Sale services: Servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4>We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
FAQ
1>How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2>What guarantee do you provide?
If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3>How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
