TF2 2/2 BTS Site Cooling System

This BTS  ventilation system includes 2 unit, air intake unit and air outtake unit, each unit with a control board fixed inside. The ventilation system can be turned on automatically or manually.

Our matched ventilation system controller is recommended to use with it together.

Specification:

1. Air flow of each fan: 260CFM
2. Theoretically air rate of system: 520CFM
3. Ventilation efficiency: 60 ~ 70%
4. Install hole size: 320mm*385mm
5. Rating voltage: DC42V ~ DC57V
6. Rating current: 0.4A for each fan
7. Noise: less than 65dB within 1.5 meters
8. install width of wall: 70 ~ 100mm
9. Lifetime of louver: more than 1 million
10. Package size: 530x450x520/ CTN
11. Weight: 11.5Kg/13Kg
12. Suggest use area: less than 15m³

Inner side of the ventilation system

Backside of the ventilation system

Filter screen of the air-intake unit

Side face of the ventilation system

Finished products

Finished products 2

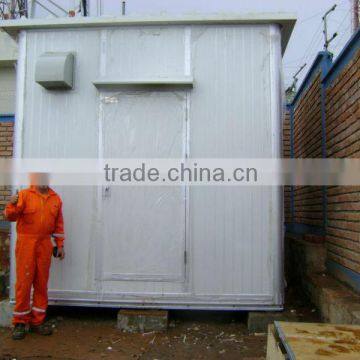

Ventilation system used on BTS

Ventilation system used on BTS
