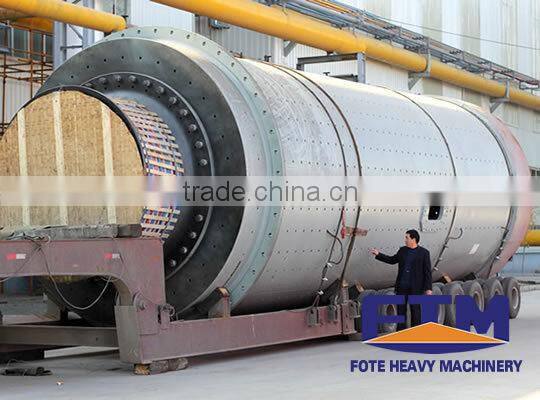

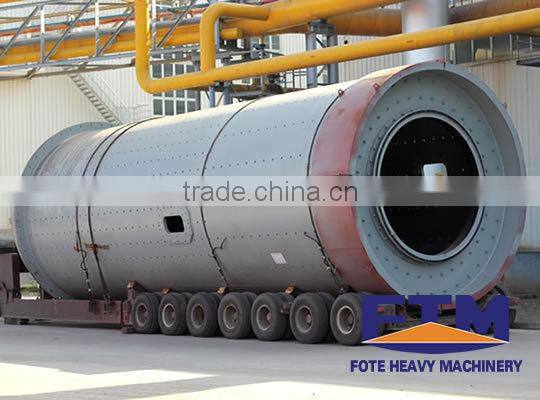

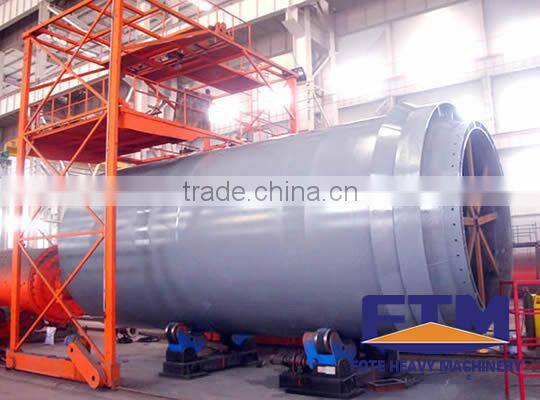

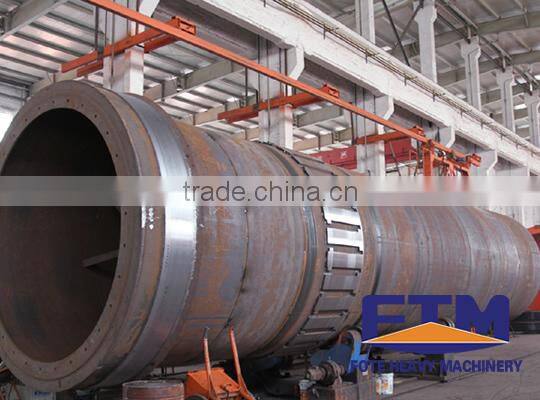

Energy saving high effective volume Raw material Mill
Overview
Raw Material Mill is the key equipment for re-grinding the cement clinker after it is distributed by the system and primarily crushed. Raw Material Mill is mainly used in the cement silicate product production industry.
Application
Raw material mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

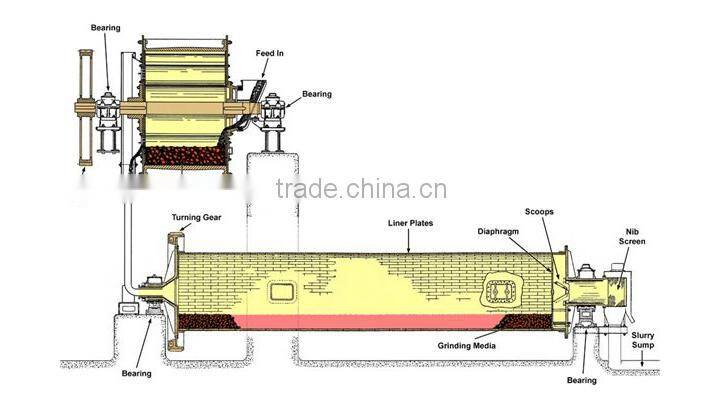

Basic structure
Working principle
When the cylinder of the grinding mill rotates driven by the transmission gear, under the inertial centrifugal force, the grinding media will stick onto the lining board on the internal wall of the cylinder of the grinding mill and rotate together with the cylinder. The grinding media are brought to a certain height, and then fall down under the gravity, and during this process, the grinding media will crush the materials inside the cylinder, and at the same time the grinding media repeatedly move up and down inside the rotating grinding mill and will have sliding and rolling movement, so that the grinding media, the lining board and the materials to be ground will grind with each other, so that the materials are crushed to a finer granularity.
Features and Advantages
As for different types of Raw Material Mills, we use proper driving method and the main driving methods include edge driving and center driving. Inside the cylinder, there are new type classification lining board and standard ladder lining board, which increases the grinding surface of the materials, and the classification effect is better and the follow-up maintenance and spare parts changing are easier. The new partition structure uses adjustable lifting board and fixed lifting board which are easy to install and maintain.
Technical Data
Company Information
Henan Fote Heavy Machinery Co., Ltd covers an area of 100,000 square meters which includes 60,000 square meters of heavy duty workshops. We have more than 200 sets of large and medium sized metal processing equipments. The Maximum lifting capacity is 300 tons.
Quality Control
Quality is our moral category, our products are worth it's price, products are our moral standing, we firmly believe that we would be punished by the market without good quality.
International Communication
Green industry and internationalization is the strategic thought of Fote. We tries best to integrate the advanced technology, excellent talents and advanced concep into the company development, which will give support to the pace, stragegy and development of Fote's internationalization and make our business partners use the most suitable products.
Our Services
1>Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>Sale services: Servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4>We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
FAQ
1>How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2>What guarantee do you provide?
If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3>How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
