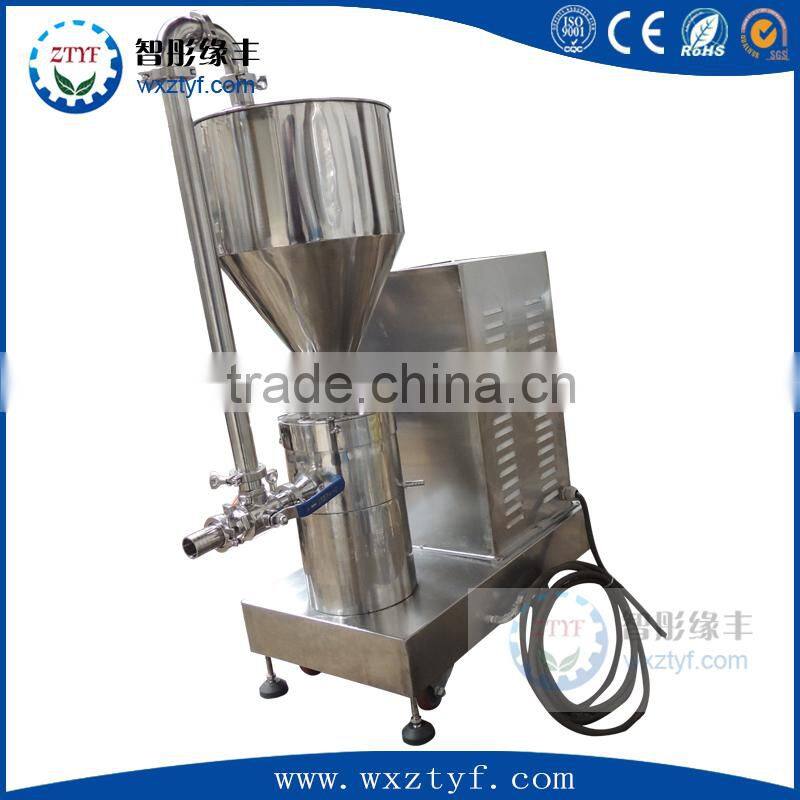

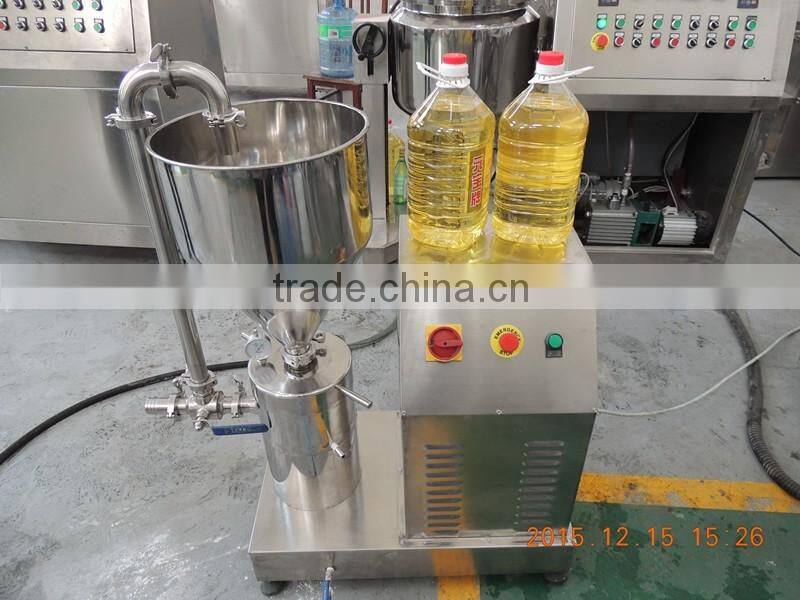

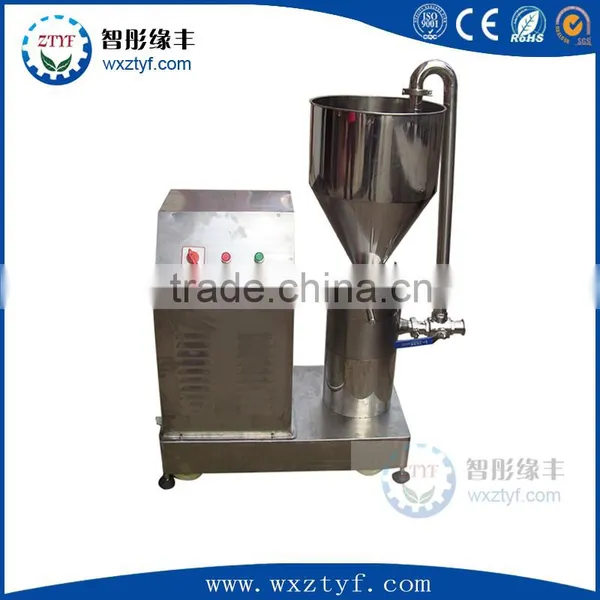

Grinding and homogenizer vertical colloid mill for skin cream
- 20 Piece / Pieces per Month
- Shanghai
- T/T
- seamless softgel capsule machine for the beads and aroma mini ball production
- Latest AI Algorithm High Efficiency Visual Inspection Machine Equipment for Glass and PET Plastic Bottles Preforms
- Advanced High Efficiency AI Visual Quality Analyzer for Grains and Nuts Classification Grading machine
- Factory Price High Efficiency AI Visual Inspection Machine for Caps Defects Detection
- High Precision Automatic AI Vision Defect Inspection Machine for Plastic PET PP PE Bottles
- Automatic High Speed AI Visual Inspection Machine for Defects Food and Beverage Package
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ZTYF | Model Number: | RY |
Application: | Emulsifier | Type: | Emulsifying Machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
♦Specifications
Grinding and homogenizer vertical colloid mill for skin cream :
Colloid mill introduction :
As the science and technology developing, the request of the products is higher and higher. We adopt the advanced experience, combine the strong suit of homogenizer and rubbing machine, R&D out the multifunctional delicate emulsifying and rubbing machine series. It provides a solution for producing colloid or the high viscosity material which requests emulsifying and rubbing enough. It can be used with emulsifying mixer or planet mixer and also can be used individually.
ing elements:
The emulsifying & rubbing machine’s linear velocity can get to 21M/S. The rubbing module composed by a spud stator which has third stage adjusting clearance and a four stage circumrotating in high speed spud rotor. The rubbing clearance can be adjusted from 0.01mm to 2mmsteplessly according the producing request. The flute of the stator and rotor is more delicate and more delicate by steps. The different depth and direction increased the onflow of the hydro-. When the material goes through, it forms strong pressing, cutting, emulsifying, crushing, mixing, dispersing and rubbing. Then getting the delicate ultramicrosome. There is circular water outside the spud stator and in the outlet antrum and sealing parts.
2.usage :
Food industry:butter,jam,dairy products,vegetable proteins,animal proteins and various of food and beverage.
Chemical industry:Paints, pigments, dyes, paints, adhesives, detergents, synthetic leather, leather etc.
Daily use industry:Toothpaste, detergent, shoe polish, senior cosmetics etc.
Medical industry:Syrup, nutrition, medicine, pastes pharmaceutical, biotechnology products, cod liver oil, all kinds of ointment etc.
3.dimension and technical parameters:
Emulsifying & rubbing machine | Flux | Output | Power | Dimension | |||||
Type | l/h | rpm | kW | A | B | C | D | E | |
RY-75 | 50~1,000 | 4,500 | 2.2 | 680 | 710 | DN15 | DN25 | 380 | |
RY-100 | 300~3,500 | 3,800 | 4 | 700 | 750 | DN32 | DN50 | 420 | |
RY-125 | 500~6,000 | 3,400 | 7.5 | 720 | 800 | DN40 | DN65 | 450 | |
RY-160 | 1,000~15,000 | 2,500 | 15 | 820 | 950 | DN50 | DN80 | 450 | |
RY-250 | 2,000~30,000 | 1,500 | 30 | 1,100 | 1,050 | DN80 | DN150 | 550 | |
|
♦ Company profile
♦ Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide beneficiation flow chart?
A: Yes, our experienced engineers are specialized in dedign various mixer and filling line and all is based on your requirements.
Q: Can we take material and do a test in your factory? A: Before you coming, just contact with me if we has the machine in factory yes you can test. ?
A: Yes. You can send your samples to us for test and analysis.
Q: For the function mixer , the viscosity of material is 50000cps,does mixing it is ok?
A: yes that is no problem ,we has double planetary mixer and tri-shaft mixer,which both main for the high viscosity.
Q: our material is Mayonnaise, does your vacuum emulsifying mixer mixing it is ok?
A: That depend on your technology art, some clinets just using vacuum emulsifying mixer is ok but some need connect with our colloid mill. colloid can mill the material more fine and smooth.
