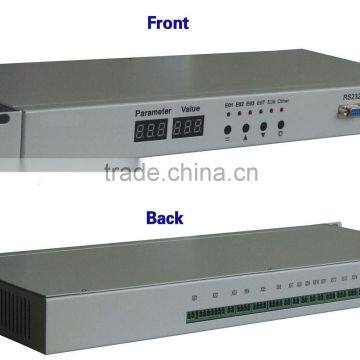

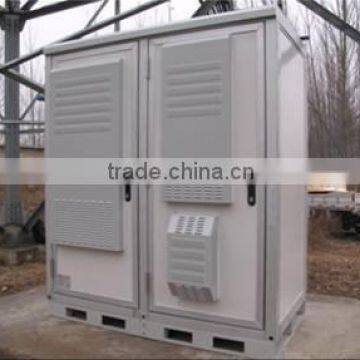

DS03 environmental control system for BTS cabinet

Function:

Set

Supply 4 buttons to set

Display

2 group of LED to display

Monitor

Monitor 3 rooms maximum, includes power (includes AC and battery), temperature, humidity, intrusion, immersion, smog fire

Alarm signal input

3 channels of nameable port, can set as DC fans fault signal or air-conditioner fault signal, and 1 channel of spare alarm signal input port

Alarm output

Use 6 pcs relays to output alarm signal, it also supply 13 alarm codes with room code.

Communication

Supply RS232/RS485 communication function, also supply monitor software for free

Record

Can real time record 2000 pcs alarm or work state messages

Size of box

Standard 1U case, for 19’’ frame

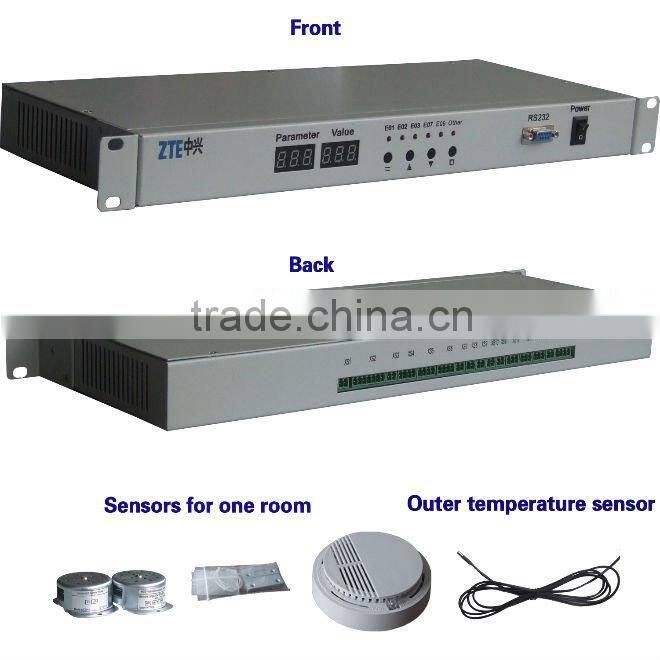

Sensor:

Type

Name

Number

Note

WD

Temperature sensor

1

Accessories, fixed outside

WS3

Hygrothermograph sensor

1-3

Accessories, fixed inside

SS-168P

Smog sensor

1-3

Accessories, fixed inside

HO-03

Intrusion sensor

1-3

Accessories, fixed on the door

TT

Immersion sensor probe

1

Accessories, put it on the floor

Alarm code:

Code

Definition

Room code--E01

High Temp. alarm

Room code--E02

Intrusion (door open) alarm

Room code--E03

Smog fire alarm

E05

Power off

E06

Seeper

E07

A/C I fault

E08

A/C II fault

E09

DC fans fault

E10

Moving alarm

Room code--E12

Temperature sensor fault

Room code--E17

High humidity

E20

Spare alarm
