Precast Concrete Lintel Machine
Concrete Lintels

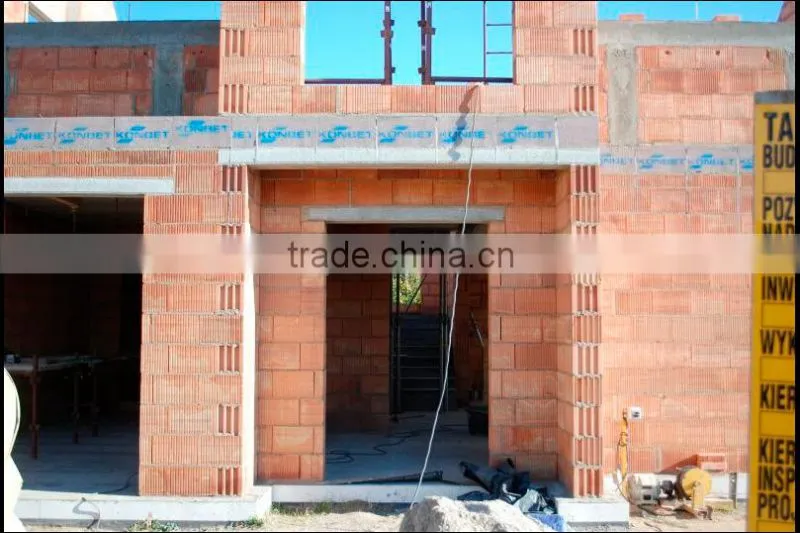

Precast concrete lintels are the rapid solution to economical robust masonry support over door and window openings.
Concrete lintels are available as reinforced or pre-stressed depending on size (all of our standard 65mm concrete lintels are pre-stressed).
Below are some Standard section sizes :
Type Width Height
A 100mm 65mm
B 100mm 150mm
C 150mm 100mm
D 140mm 65mm
E 100mm 215mm
F 140mm 215mm
G 140mm 150mm
Or we can design the machine as per your local special sizes:
Preparing Raw materails:
Concrete : Sand ,cement and stone
Concrete typical 28 days strengths are 60N/mm²
Concrete strength at transfer 30 N/mm²
Water cement ratio 0.45 Maximum
Reinforcement prestressing wire
The prestressing concrete lintel production line is including
1.Materials mixing machine
2.Prestressing tension machine
3.Materials dumper
4.Concrete lintel machine
5.Concrete Cutter
For concrete lintel production line,it is required 3-4 worker to operate the whole system.The curing time for concrete lintel is 2 days.

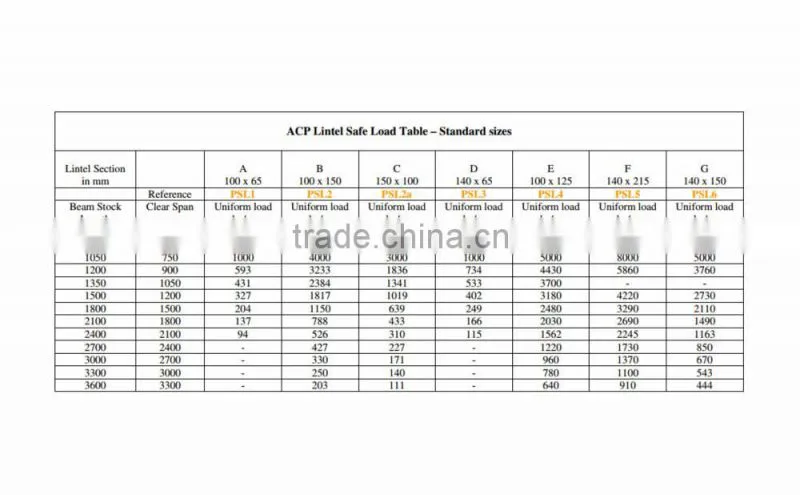

Lintels safety load table
