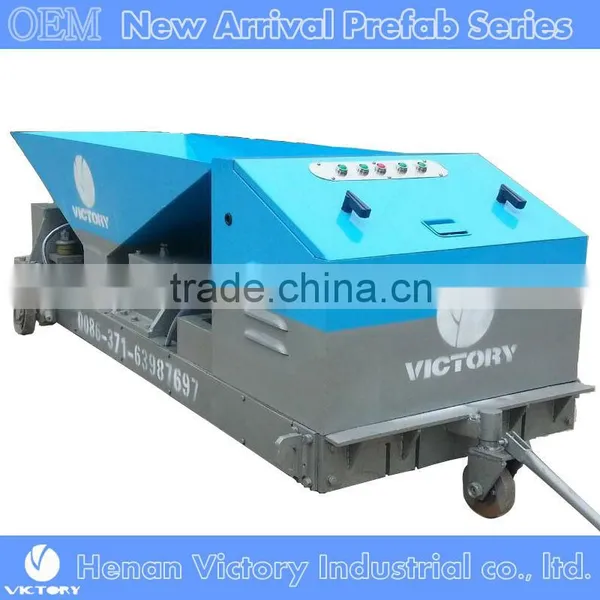

JQT9x60-A Prefab concrete partition Interior wall panel machine For Building Hollow wall
Precast concrete partition Interior wall panel machine For Building Hollow wall
Model |
JQT9x60-A |
Width |
595±2(mm) |
Thickness |
90±1(mm) |
No. of holes and hole diameter |
7*58(mm) |
Panel making speed |
1.1-1.7(m/min) |
Main motor |
7.5 (kw) |
Vibrator |
0.8(kw) |
Overall dimensions |
2560x950x980 (mm) |
GW |
1100(kg) |

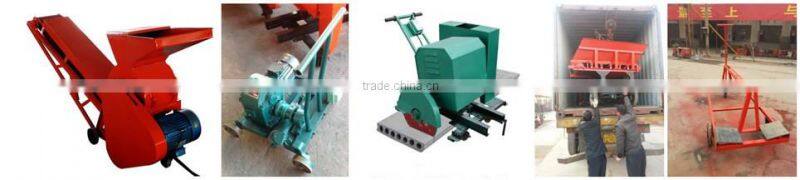

Hammer crusher Tensile machine wall panel cutter Electrick dumper wall panel cart
OEM Service ONLY Provided to VIP Distributer. Like my Thailand VIP customer who qualifies this BONUS. All Customer from This Country can Buy safely from Distributer.
* We Put Requested Logo on The Machine for Distributer
* We Provide Technical Support all lifetime
* We Prepare for Spare Parts According to Buyer's request.
* In order to Protect Distributer's rights, we refused to sell machine to Other customer in this district.
Q1. What is the Standard Size of Wall panel machine
A1. Precast Light weight Wall panel machine
JQT7.5*60 and JQT9*60 is more Standard all over the world
(75mm thickness, 600mm width etc.)
Q2. How Much Sqm will be installed 1 day?
A2. Very quickly by Our Wall panel Installer (300sqm/day)
Q3. Can we use wall panel as Exterior and interior Wall?
A3. Low Price Prefab light weight concrete wall panel machine
Yes, Can be used for both. (Exterior can be Double Layer Holes. Interior
can use 9*60 or 7.5*60)
Q4. How To Order From "Henan Victory Industrial co. ltd."?
A4. Confirm PI (Profroma Invoice) with our sales Man and
Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy.
(Old Customer: 30% &70%)
Our company is located in Zhengzhou city, Province of Henan ,China.
The Shaolin Temple is only 40 kilometers away from us.
By air: Zhengzhou Xinzheng International Airport (IATA Code CGO)
By Train: Zhengzhou Station; 2.5 Hours from Beijing to zhenghzou ;
4 hours from Shanghai to Zhengzhou;
7 Hours from Guangzhou to Zhengzhou
Precast concrete partition Interior wall panel machine For Building Hollow wall
