Specifications
Vibrating Screen1.stable vibration
2.reliable operation
3.low noise, low power consumption
4.Multilayer
Top Brand High Frequency linear vibrating screen
1. CYK Circular Vibrating Screen Specification
| Model | Decks | Size(mm) | Max Feed Size(mm) | Capacity(t/h) | Frequency Swing(hz) | Double Amplitude(mm) | Power(kw) | Weight(exclude electric)(kg) |
| CYK1236 | 1 | 1200x3000 | 100 | 20-150 | 740 | 8 | 11 | 3540 |
| CYK1236x2 | 2 | 1200x3000 | 100 | 30-150 | 740 | 8 | 11 | 3820 |
| CYK1236x3 | 3 | 1200x3000 | 100 | 50-150 | 740 | 8 | 11 | 5230 |
| CYK1545 | 1 | 1500x4500 | 200 | 30-200 | 740 | 8 | 11 | 4200 |
| CYK1548x2 | 2 | 1500x4800 | 200 | 35-200 | 740 | 8 | 15 | 4850 |
| CYK1548x3 | 3 | 1500x4800 | 200 | 50-200 | 740 | 8 | 18.5 | 5950 |
| CYK1548x4 | 4 | 1500x4800 | 200 | 80-200 | 740 | 8 | 22 | 7150 |
| CYK1854 | 1 | 1800x5400 | 200 | 42-250 | 740 | 8 | 18.5 | 6500 |
| CYK1860x2 | 2 | 1800x6000 | 200 | 45-250 | 740 | 8 | 22 | 7550 |
| CYK1860x3 | 3 | 1800x6000 | 200 | 45-250 | 740 | 8 | 22 | 9150 |
| CYK1860x4 | 4 | 1800x6000 | 200 | 45-250 | 740 | 8 | 30 | 10800 |
| CYK2160x2 | 2 | 2100x6000 | 200 | 100-400 | 740 | 8 | 30 | 7950 |
| CYK2160x3 | 3 | 2100x6000 | 200 | 130-400 | 740 | 8 | 30 | 9550 |
| CYK2160x4 | 4 | 2100x6000 | 200 | 150-400 | 740 | 8 | 37 | 11350 |
| CYK2460x2 | 2 | 2400x6000 | 200 | 150-500 | 740 | 8 | 37 | 8050 |
| CYK2460x3 | 3 | 2400x6000 | 200 | 150-600 | 740 | 8 | 37 | 10700 |
| CYK2460x4 | 4 | 2400x6000 | 200 | 150-600 | 740 | 8 | 45 | 12750 |
| CYK2470x2 | 2 | 2400x7000 | 200 | 150-500 | 740 | 8 | 37 | 11800 |
| CYK2470x3 | 3 | 2400x7000 | 200 | 150-600 | 740 | 8 | 37 | 11350 |
| CYK2470x4 | 4 | 2400x7000 | 200 | 150-600 | 740 | 8 | 45 | 13500 |
| CYK2470x2 | 2 | 2400x7000 | 200 | 250-700 | 740 | 8 | 2x30 | 12800 |
| CYK2470x3 | 3 | 2400x7000 | 200 | 300-700 | 740 | 8 | 2x30 | 13250 |
| CYK2470x4 | 4 | 2400x7000 | 200 | 300-700 | 740 | 8 | 2x30 | 14750 |
2. Multilayer Circular Vibrating Screen Machine
All Chuangshen inclined screens are manufactured with huck-bolted frames. These rugged yet versatile units are well suited for use in a variety of aggregate , mineral and industrial applications. Sizes range from 1500*4800 to 3600*7200 and are available in single, two, three or four deck arrangements.
3. Multilayer Circular Vibrating Screen are appropriate for
Multilayer vibrating screen machine are well suited for use in a variety of aggregate , ore and industrial applications.
4. Main advantages of Multilayer Circular Vibrating Screen
1. Available in a wide range of models, sizes and deck styles.
2. Strong vibrator force, low vibrator noise.
3. High production, low maintenance.
4. Oil or grease lubrication can be specified to suit operating speeds and other production requirements.
|
|

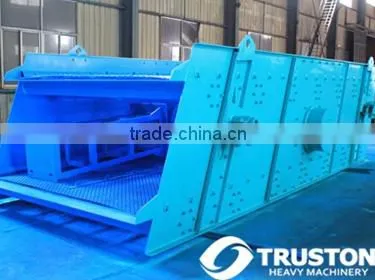

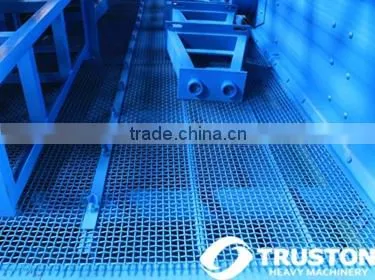

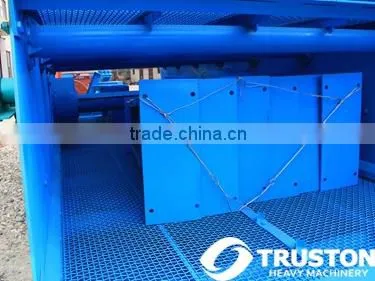

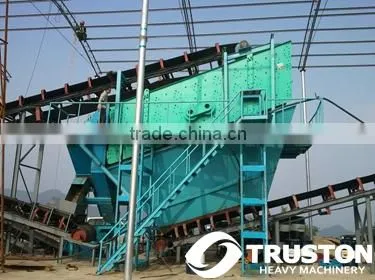

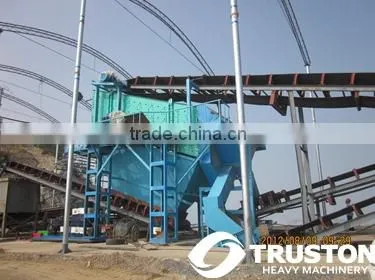

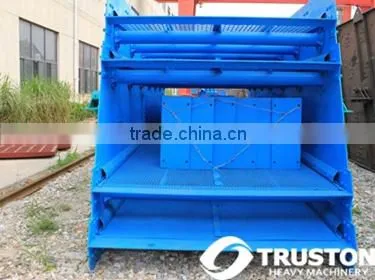

| Circular Vibrating Screen | Circular Vibrating Screen |
|
|
| Circular Vibrating Screen | Circular Vibrating Screen |
|
|
Circular Vibrating Screen |
Circular Vibrating Screen |
5. About Shanghai ChuangShen
Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market- oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
Based on the core value of “ Honesty, create value for ourselves; Responsibility, create value for customers”, we earnestly performs the ISO 9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA (China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
