China CYK Stone Vibrating Screen,linear Vibrating Screen,crusher Parts

China CYK Stone Vibrating Screen,linear Vibrating Screen,crusher Parts thumbnail-1
China CYK Stone Vibrating Screen,linear Vibrating Screen,crusher Parts photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, circular vibrating screen
Application:
ore, concrete, limestone, cobble, granite, metallurgy slag
Contact Supplier Request Quote Chat Now
Shanghai Chuangshen Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, circular vibrating screen
Application ore, concrete, limestone, cobble, granite, metallurgy slag
Motor Type AC Motor
Power(W) 11-2x55
Capacity(t/h) 30-1500
Place of Origin Shanghai, China
Brand Name TRUSTON
Model Number CYK
Dimension(L*W*H) Showing in the parameters
Weight Showing in the parameters
Certification ISO,CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Stone vibrating screen, ISO, CE
1Capacity:20-1500t/h
2.Max feeding size:200mm
3.Little electricity
4.Delivery:15-30days

China CYK Stone Vibrating Screen,Linear Vibrating Screen,Crusher Parts  --TRUSTON



China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts





I. CYK Inclined Screens Specifications



Model Decks Size(mm) Max Feed Size(mm) Capacity(t/h) Frequency Swing(hz) Double Amplitude(mm) Power(kw) Weight(exclude electric)(kg)
CYK1236 1 1200x3000 100 20-150 740 8 11 3540
CYK1236x2 2 1200x3000 100 30-150 740 8 11 3820
CYK1236x3 3 1200x3000 100 50-150 740 8 11 5230
CYK1545 1 1500x4500 200 30-200 740 8 11 4200
CYK1548x2 2 1500x4800 200 35-200 740 8 15 4850
CYK1548x3 3 1500x4800 200 50-200 740 8 18.5 5950
CYK1548x4 4 1500x4800 200 80-200 740 8 22 7150
CYK1854 1 1800x5400 200 42-250 740 8 18.5 6500
CYK1860x2 2 1800x6000 200 45-250 740 8 22 7550
CYK1860x3 3 1800x6000 200 45-250 740 8 22 9150
CYK1860x4 4 1800x6000 200 45-250 740 8 30 10800
CYK2160x2 2 2100x6000 200 100-400 740 8 30 7950
CYK2160x3 3 2100x6000 200 130-400 740 8 30 9550
CYK2160x4 4 2100x6000 200 150-400 740 8 37 11350
CYK2460x2 2 2400x6000 200 150-500 740 8 37 8050
CYK2460x3 3 2400x6000 200 150-600 740 8 37 10700
CYK2460x4 4 2400x6000 200 150-600 740 8 45 12750
CYK2470x2 2 2400x7000 200 150-500 740 8 37 11800
CYK2470x3 3 2400x7000 200 150-600 740 8 37 11350
CYK2470x4 4 2400x7000 200 150-600 740 8 45 13500
CYK2470x2 2 2400x7000 200 250-700 740 8 2x30 12800
CYK2470x3 3 2400x7000 200 300-700 740 8 2x30 13250
CYK2470x4 4 2400x7000 200 300-700 740 8 2x30 14750
CYK2870x2 2 2800x7000 200 250-650 740 8 2x30 15000
CYK2870x3 3 2800x7000 200 300-800 740 8 2×37 17780
CYK2870x4 4 2800x7000 200 300-800 740 8 2×45 18650
CYK3070x2 2 3000x7000 200 350-800 740 8 2×30 15750
CYK3070x3 3 3000x7000 200 400-900 740 8 2×37 18750
CYK3070x4 4 3000x7000 200 400-900 740 8 2×45 23950
CYK3672x2 2 3600x7200 200 500-1500 740 8 2×37 19650
CYK3672x3 3 3600x7200 200 600-1500 740 8 2×45 22980
CYK3672x4 4 3600x7200 200 800-1500 740 8 2×55 26550

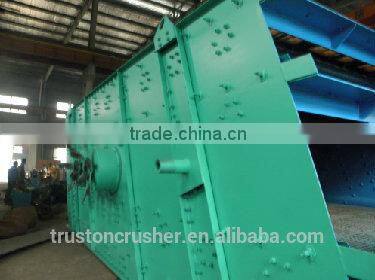

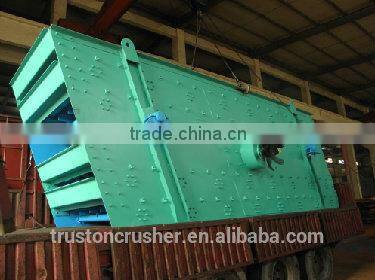

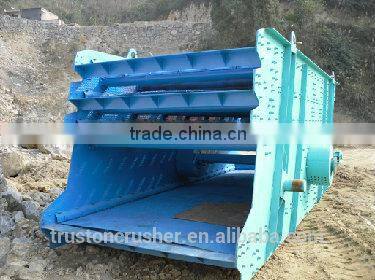

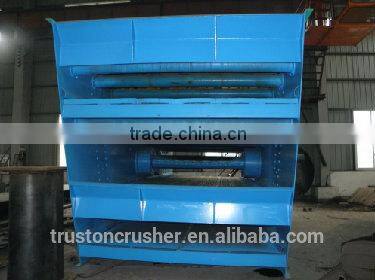

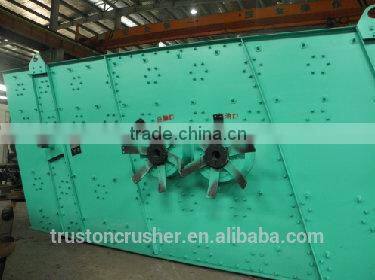

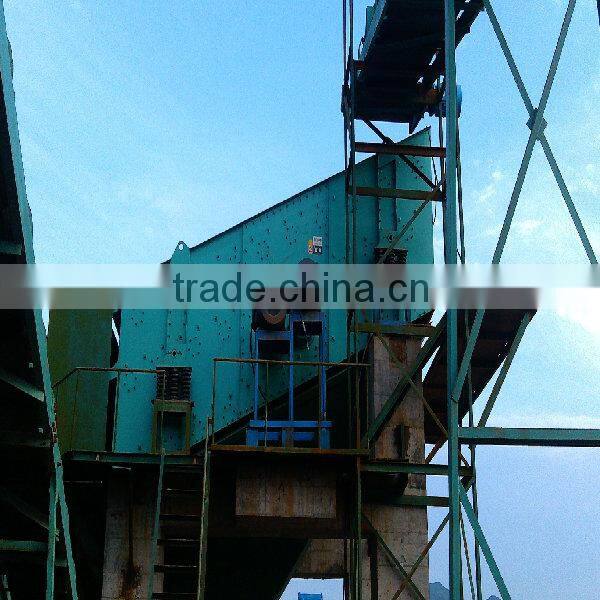

II.CYK Inclined Screens

CYK Inclined screens are two bearing or four bearing and the circular throw screens are designed for heavy-duty scalping, intermediate sizing and finished screening of virtually any material. Eccentric shafts with a variable weight counterweight systems creating circular and crowned bar with rubber liners and lined vibrator tubes reflect advanced design.

III.CYK Inclined Screens are appropriate for

Applicable in all types of screening operations in virtually every industry requiring sizing of materials A choice of oil splash or grease lubrication to suit specific operational requirements All sizes available in multi-deck

IV.CYK Main advantages of Inclined Screens

Available in a wide range of models, sizes and deck styles.
Strong vibrator force and low vibrator noise.
High production and low maintenance.
Oil or grease lubrication can be specified to suit operating speeds and other production requirements.



China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts
China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts
China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts
China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts



China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts
China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts
China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts China CYK Stone Vibrating Screen,linear vibrating screen,crusher parts
