Specifications
Feed Mixer and Crusher1.Simple and Durable
2. ISO; CE
3.low noise, low power consumption
4. Easy to adjust,repair

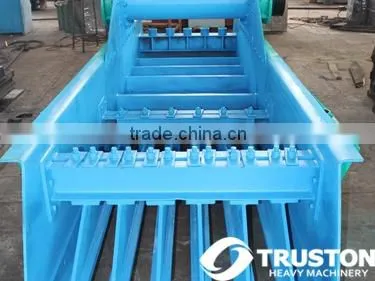

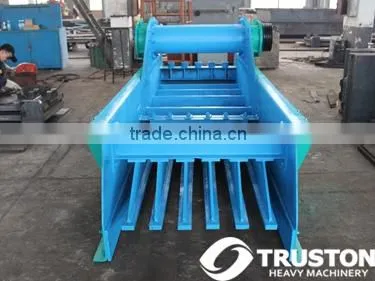

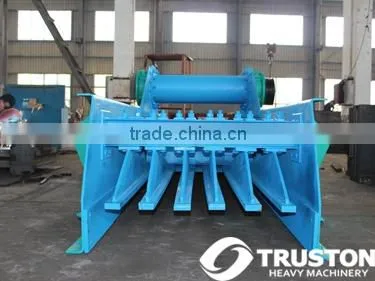

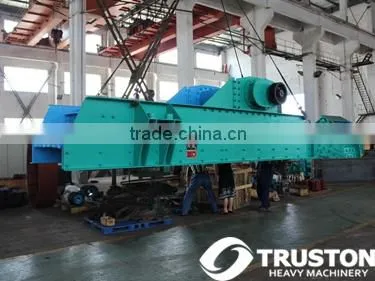

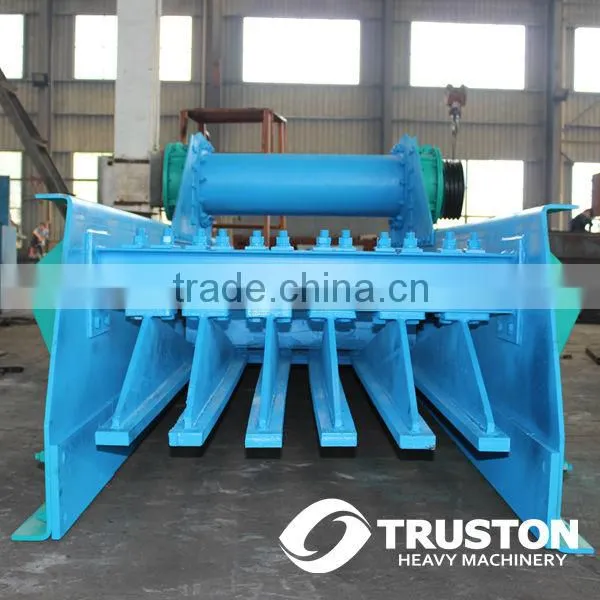

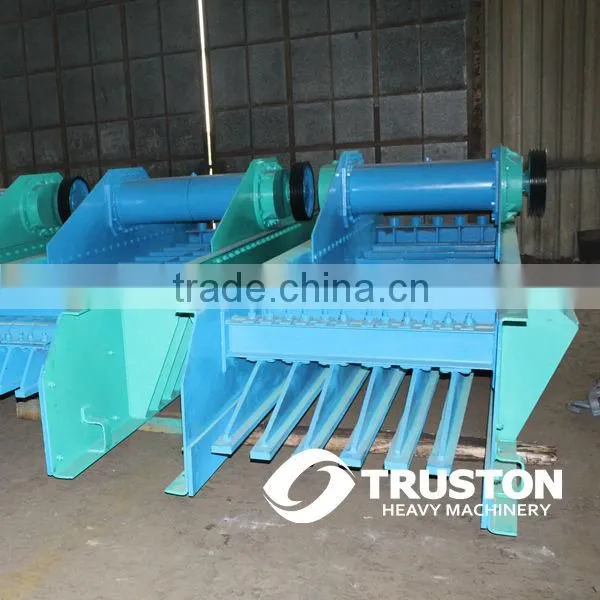

Specifications Of CZW Series Vibrating Feeder
first feeding
high reliability and durability
top continuous crushing performance
excellent feeding result
1. Specification
Model |
Hopper (LxW)(mm) |
Max Feed Size (mm) |
Frequency (hz) |
Capacity (t/h) |
Power (kw) |
CZW3815 |
3800x960 |
500 |
~800 |
100-200 |
11-15 |
CZW4419 |
4875x1124 |
650 |
~800 |
150-400 |
15-18.5 |
CZW5224 |
6100x1320 |
800 |
~800 |
200-600 |
22-30 |
CZW5824 |
6096x1475 |
1020 |
~800 |
300-750 |
30-37 |
| CZW7024 | 6100x1820 | 1500 | ~800 | 400-1000 | 45-55 |
2. Vibrating Feeders
Vibrating feeders are a kind of linear direction feeding equipment, in the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. Chuangshen’s Vibrating Feeders offer high productivity, reliability and ease of maintenance. Setting the industry standard their outstanding versatility has been proven on thousands of installations worldwide.
3. Vibrating Feeders are appropriate for
Primary crushing widely applied in mining, road&railway, concrete, chemical and building material industries.
4. Main advantages of Vibrating feeders
Simple & efficient construction, continuous operation, Vibrating feeders transport material to the crusher and filter out fines while delivering, they have optimum performance.
|
|
|
|
|
|
|
4.About Shanghai ChuangShen
Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market- oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
Based on the core value of “ Honesty, create value for ourselves; Responsibility, create value for customers”, we earnestly performs the ISO 9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA (China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
