Large River Stone Sand Making Machine, VSI Crusher,CPL(ST)-550 Vertical Shaft Impact Crusher With Low Price High Efficience

Large River Stone Sand Making Machine, VSI Crusher,CPL(ST)-550 Vertical Shaft Impact Crusher With Low Price High Efficience thumbnail-1
Large River Stone Sand Making Machine, VSI Crusher,CPL(ST)-550 Vertical Shaft Impact Crusher With Low Price High Efficience photo-1
US$ 10,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, sand maker, VSI crusher, VSI crusher CPL(ST)-550 Sank maker
Application:
ore, concrete, limestone, cobble, granite, metallurgy slag Secondary
Contact Supplier Request Quote Chat Now
Shanghai Chuangshen Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, sand maker, VSI crusher, VSI crusher CPL(ST)-550 Sank maker
Application ore, concrete, limestone, cobble, granite, metallurgy slag Secondary
Motor Type AC Motor
Power(W) 30-45
Capacity(t/h) 40-60
Place of Origin Shanghai, China
Brand Name TRUSTON
Model Number CPL(ST)-550
Dimension(L*W*H) Showing in the parameters
Weight 4730
Certification ISO,CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

River stone crusher CPL(ST)-550 Sank making machine
1Shaper with impact plate
2High crushing ratio
3 crushing sand in 0-5mm

  VSI crusher CPL(ST)-550 Sank Maker, Vertical Shaft Impact Crusher, Large River Rock Sand Making Machine-- TRUSTON



Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience







1. Vertical Shaft Impact Crusher Specification





Model Max Feed Size(mm) Eccentric Shaft Speed(r/min) Capacity(t/h) Power(kw) Weight(kg)
CSCB-850 50 800-1800 200-350 (110-200)x2 10950
CSCBF-850 50 800-1800 200-350 (110-200)x2 13350
CSCBL-850 50 800-1800 250-400 (110-200)x2 10980
CSCB-1000 63 800-1800 350-600 (200-250)x2 13730
CSCBF-1000 63 800-1800 350-600 (200-250)x2 16380
CSCBL-1000 63 800-1800 450-600 (200-250)x2 13990
CPL(ST)-550 30 2258-2600 40-60 30-45 4730(5300)
CPL(ST)-700 35 1775-2050 80-100 55-90 7150(7750)
CPL(ST)-850 50 1460-1720 100-240 150-220 11680(12350)
CPL(ST)-1000 60 1240-1460 150-320 220-320 15800(17300)
CPL(ST)-1200 60 950-1220 200-500 320-500 20150(22500)





2. Large River Rocks Sand Making Crusher

Large river rocks sand making crusher  also called sand making machines, are fine crusher styles based on the principle of impact and attrition.  large river rocks sand making crusher are appropriate for various environments, especially for crushing brittle, hardness and grind materials.  large river rocks sand making crusher give uniform product size which are the best available choice for artificial sand making of construction, irrigation works, building and mining industrials. Vertical shaft impact crushers would work safely many years as long as users check and maintain on time.

3. Large River Rocks Sand Making Crusher appropriate for

Brittle hardness and grind materials such as ore, concrete, limestone, cobble, granite, metallurgy slag Secondary, tertiary and fine crushing stages or coarse grinding stage or shaped aggregate stage. Artificial sand making, concrete, beneficiation and grinding used in modern construction, irrigation works, building and mining industrials.

4.Main Advantages of Large River Rocks Sand Making Crusher

Convertible Crusher Design; Single or dual motor mount configuration; Oil lubrication system comprised of tank, pump, temperature switch, flow meter, oil cooler, oil heater and valve assembly Adjustable hopper ensures the best inlet amount; Cubic particles; High output and low power;

We offer two types vertical shaft impact crushers, CSCB series absorb German technology with Oil lubrication system, CPL series are grease lubrication system.

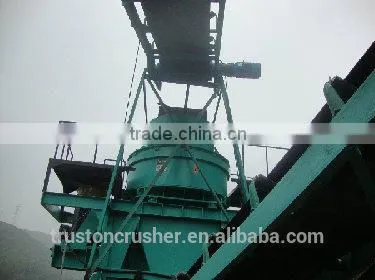

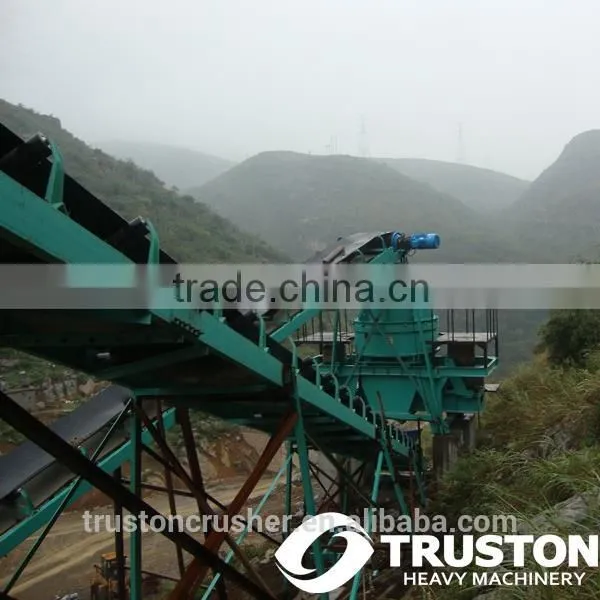

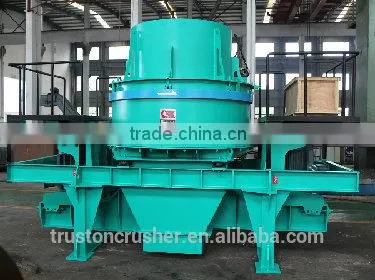

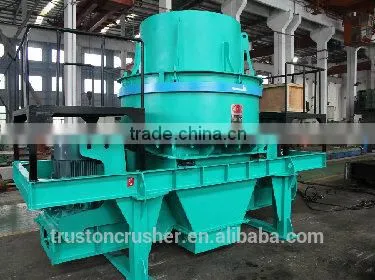

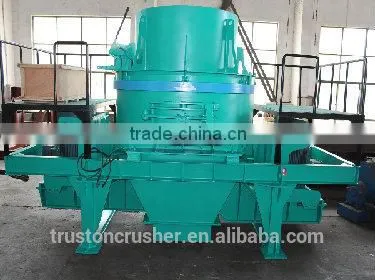

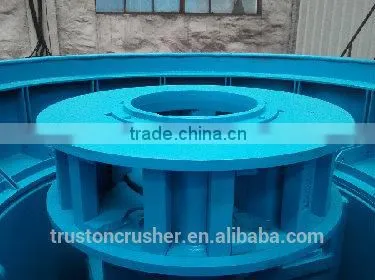

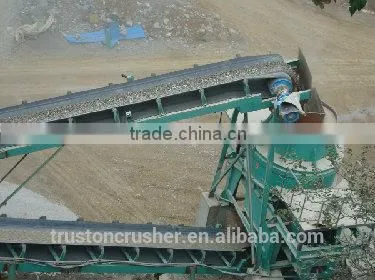

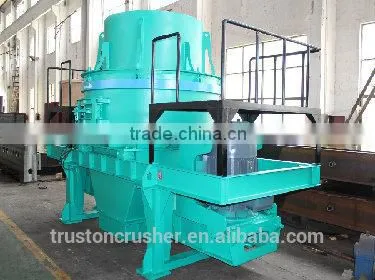

Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience
Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience
Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience
Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience

 Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficienceLarge river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficienceLarge river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficienceLarge river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficienceLarge river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience

Large river stone sand making machine, VSI crusher,CPL(ST)-550 Vertical Shaft Impact Crusher with low price high efficience
