Specifications
Vertical shaft impact crusher manufacturerAmerican technology
Thin oil
Grease lubrication system
ISO & CE

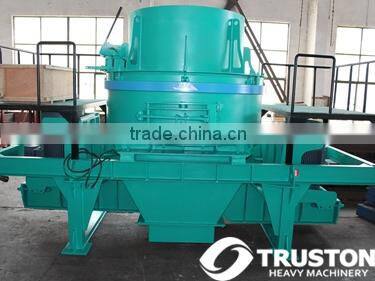

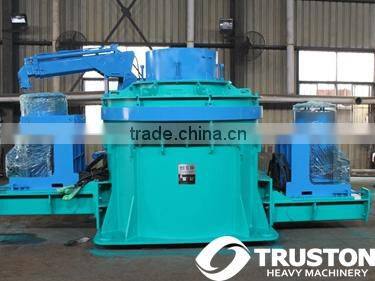

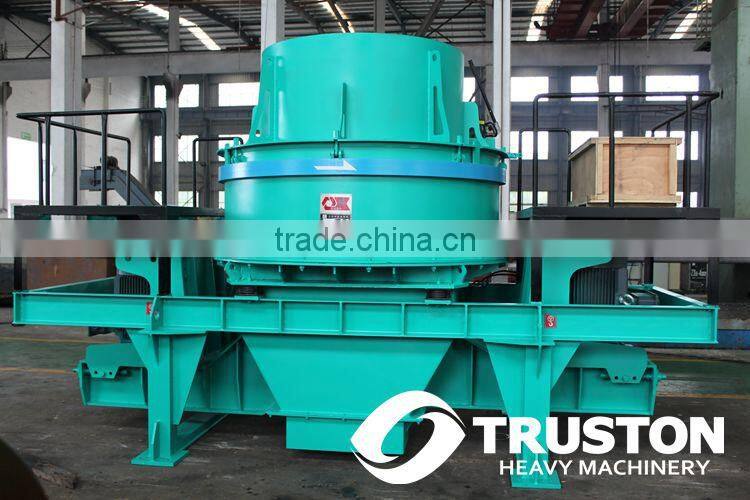

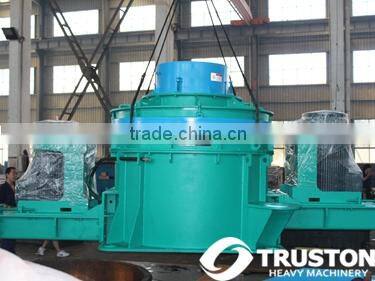

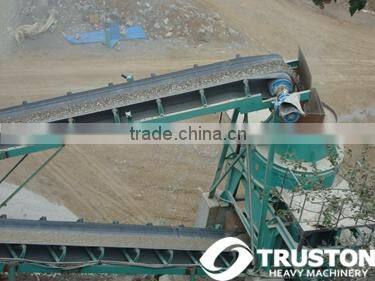

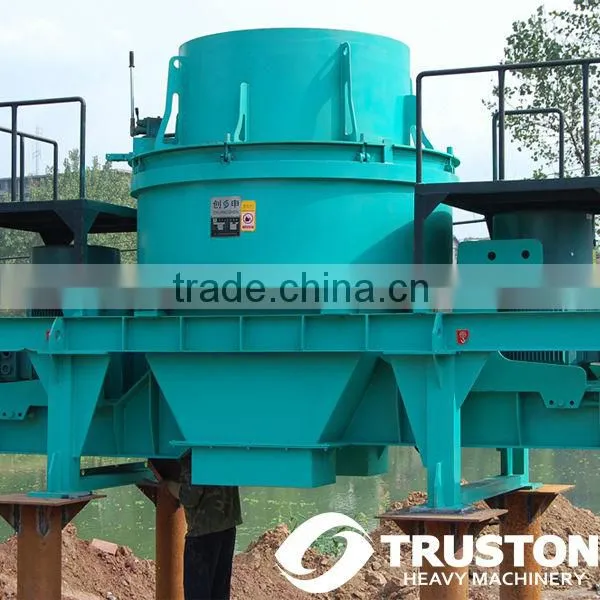

High Efficiency Sand Making Machine CPL Vertical Shaft Impact Crusher
1. Vertical Shaft Impact CrusherS
Vertical shaft impact crushers, also called sand making machines, are fine crusher styles based on the principle of impact and attrition. Vertical shaft impact crushers are appropriate for various environments, especially for crushing brittle, hardness and grind materials. Vertical shaft impact crushers give uniform product size which are the best available choice for artificial sand making of construction, irrigation works, building and mining industrials. Vertical shaft impact crushers would work safely many years as long as users check and maintain on time.
2. Applications of Vertical Shaft Impact CrusherS
Brittle hardness and grind materials such as ore, concrete, limestone, cobble, granite, metallurgy slag Secondary, tertiary and fine crushing stages or coarse grinding stage or shaped aggregate stage. Artificial sand making, concrete, beneficiation and grinding used in modern construction, irrigation works, building and mining industrials.
3. Main Advantages of Vertical Shaft Impact Crushers
(1)CSCB (F) (L)/CPL(S) series are based on the U.S. technology and it is currently the world's most advanced sand making equipment.
(2)Shell of product rotor with high wear-resistant liner and alloy of tungsten carbide blade assembly form, eliminating the need and cost to purchase new welding rotor or rotor`s shell.
(3)Oil lubrication system comprised of filter, oil cooler, oil heater, temperature switch. Increasing the speed of the rotor, reducing the possibility of misoperation.
(4)360 ° rotating hydraulic device for open the top cover (operational choice) will be easy for replacement of wearing parts and convenient to maintenance time of equipment and labor intensity.
We offer two types vertical shaft impact crushers, CSCB series absorb German technology with Oil lubrication system, CPL series are grease lubrication system.

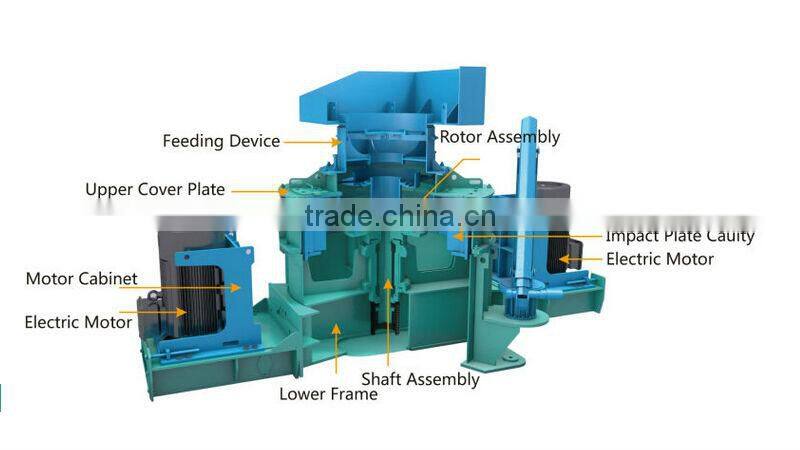

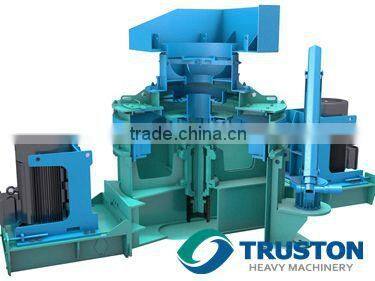

4. Structure Diagram of Vertical Shaft Impact Crusher
5. Specification of Vertical Shaft Impact Crushers
| Model | Max Feed Size(mm) | Eccentric Shaft Speed(r/min) | Capacity(t/h) | Power(kw) | Weight(kg) |
| CSCB-850 | 50 | 800-1800 | 200-350 | (110-200)x2 | 10950 |
| CSCBF-850 | 50 | 800-1800 | 200-350 | (110-200)x2 | 13350 |
| CSCBL-850 | 50 | 800-1800 | 250-400 | (110-200)x2 | 10980 |
| CSCB-1000 | 63 | 800-1800 | 350-600 | (200-250)x2 | 13730 |
| CSCBF-1000 | 63 | 800-1800 | 350-600 | (200-250)x2 | 16380 |
| CSCBL-1000 | 63 | 800-1800 | 450-600 | (200-250)x2 | 13990 |
| CPL(ST)-550 | 30 | 2258-2600 | 40-60 | 30-45 | 4730(5300) |
| CPL(ST)-700 | 35 | 1775-2050 | 80-100 | 55-90 | 7150(7750) |
| CPL(ST)-850 | 50 | 1460-1720 | 100-240 | 150-220 | 11680(12350) |
| CPL(ST)-1000 | 60 | 1240-1460 | 150-320 | 220-320 | 15800(17300) |
| CPL(ST)-1200 | 60 | 950-1220 | 200-500 | 320-500 | 20150(22500) |
|
|
|
|
|
|
About Shanghai Chuangshen
Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
