Specifications
Rubber track1- OEM quality to Kubota, YAMMAR, TOYO, ETC
2- ISO/TS16949 certified
3- Quality guaranteed

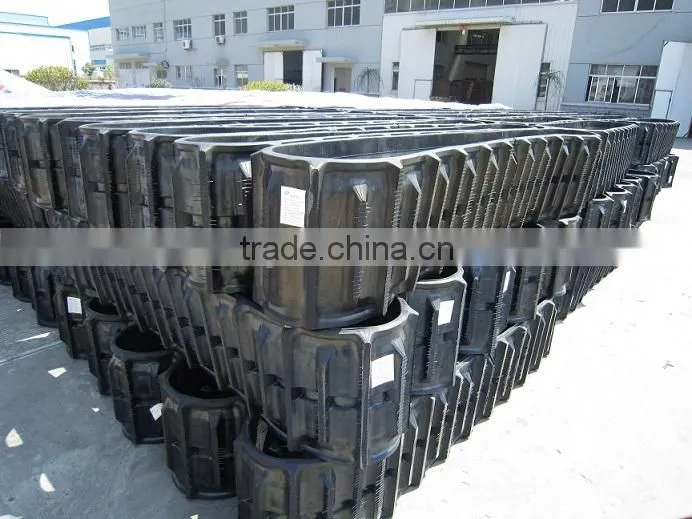

Rubber Track:
| Specification | Width | Pitch | height of internal teeth | width of internal track | teeth available(Z) | Applicaliton | Remark |
|---|---|---|---|---|---|---|---|
| 450 X 90 X Z | 450 | 90 | 38 | 36 | 42,44,46,48,50,51 | TOYO5050(46) TOYO6060(51) Lg Series(42,46) KUBOTA(50,53,56) | |
| 425 X 90 X 47 (High) | 425 | 90 | 40 | 39 | 47 | YANMAR Ag-600(People NO.3)Zhu Jiang | |
| 400 X 90 X Z | 400 | 90 | 35 | 36 | 40,42,43,44,45,46,47,48 | Hu Zhou NO.1 Stars KUBOTA PRO481(45) PRO488(42) PRO588(43) Tai Hu1450(42) WORLD TOYO3550(40) FENGLING(46) ISEKI(44) | Semi-feeding |
| 400 X 90 X 42 (High) | 400 | 90 | 40 | 24 | 42,46 | YANMAR Ce-2 (people NO.2) Zhu Jiang | |
| 400 X 90 X Z | 400 | 90 | 30 | 26 | 46,48 | Liuling,Sanlian,Foton,World,Jlin Dongfeng. | All Feeding |
| 350 X 90 X 42 (High) | 350 | 90 | 40 | 24 | 42 | YANMAR Ce-1 (People NO.1) | |
| 350 X 90 X Z | 350 | 90 | 30 | 26 | 40,42,44,46,48 | Liulin,Sanlian,Huzhou,Fengling,Xinguang,Yammar,Foton,WORLD,Jinwa | All feeding(130,150,160,180,200) |
The traditional rubber track normally take lap joint production technology, it was easy to get stretch, to slip between steel cord and belt carcass, and the pitch distance is not keep all the same. Besides that, the integral tensile strength is low. However, the endless production technology is the best solution to improve those defects.
ATTENTION
1- Check the tension after the track belt installed, it will be failure if too tight or loose. Generally, the sag distance of the center roller is 10 to 15cm to belt when lift the machine.
2- Avoid quickly starting or turning the machine on the scraggly ground.
3- Keep the rubber away from oil and grease, wipe off immediately while it is oil stained.
4- To avoid collision between the rubber track and other components of the machine, especially its inner edge.
5- Don’t using badly worn driving wheel, because it may damage the iron teeth of the rubber track.
6- If the machine is unused for a long time, the rubber track should be removed and cleaned, and kept well indoors to avoid sunlight and wetness.
7- Due to the track belt was made by rubber, the perfect working tempature is between -25 to 55 degree. However, it can meet the needs out of the range if made by special rubber and material.
We also can design with special requirements, any inquiry will be much appreciated.
