light weight fireproof eps sandwich acoustical ceiling panel
Specifications
Light weight EPS sandwich panels
1. Fire/water proof
2. Sound insulation
3. High strength, quake proof
4. Easy installation
Application Future

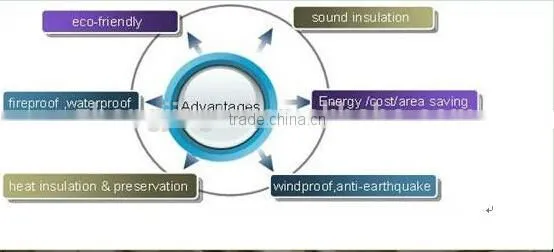

ZJT panel can completely replace clay bricks, aerated blocks and other building materials in its advantages of:
Light weight, high strength,
High fire resistance rating,
Outstanding performance in sound insulation,
Heat preservation and insulation,
Spiking and stick ability,
Water proof and moisture proof,
More usable space,
Simple installation, short construction duration,
Environment friendly, very little waste.

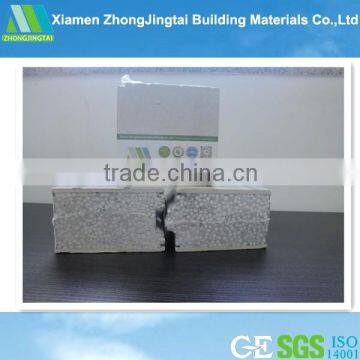

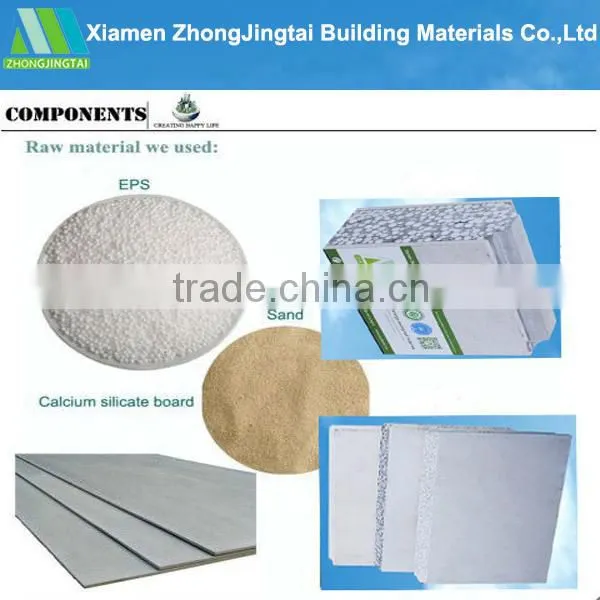

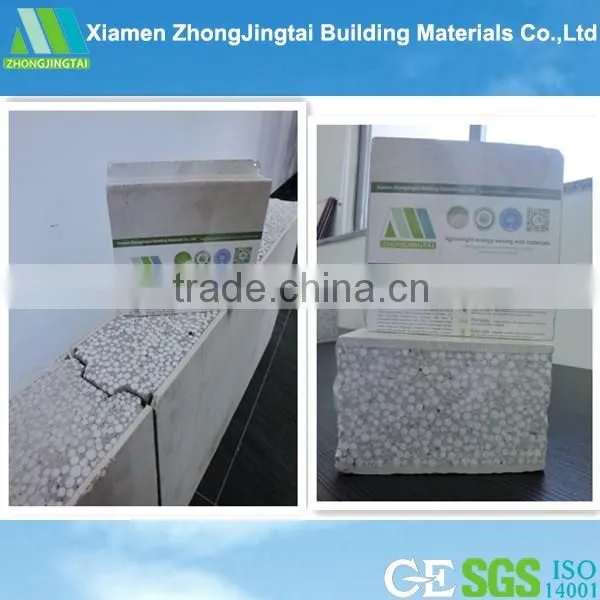

Panel Structure
solid core panel (SPB) is made of EPS cement compound;

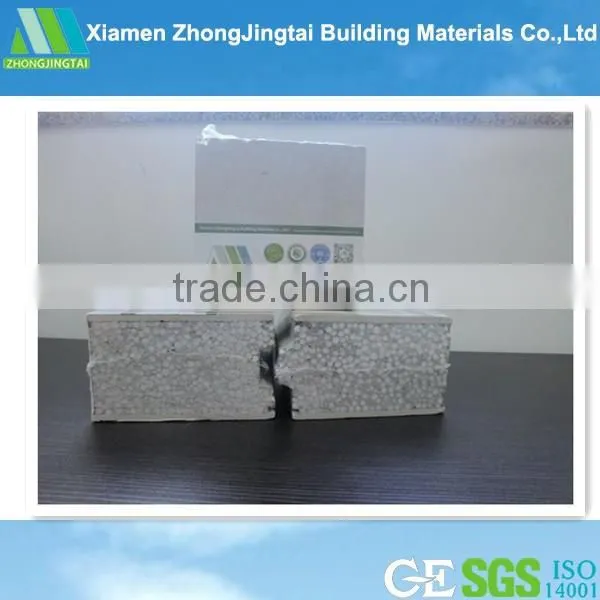

While composite sandwich panel (FPB) uses EPS cement compound as core, calcium silicate boards as faces on both sides.
And reinforced panel (CPB) with acoustic proof materials or steel grid/bar as embedded layer for special requirements.
FPB Dimension Table
Composite sandwich panel (FPB):
Model serie | FPB60 | FPB90 | FPB120 | FPB150 | FPB180 |
Panel Length mm | 1800~2200 | ||||
Width mm | 610 | ||||
Thickness mm | 60 | 90 | 120 | 150 | 180 |
Surface Density kg/m2 | 45 ±5 | 55 ±5 | 65 ±5 | 75 ±5 | 88 ±5 |
* Note: Customized size is available.
Performance Table
| Item | National Standards | Testing Indexes | |||||
| 60mm | 90mm | 120mm | 60mm | 90mm | 120mm | ||
| 1 | Anti-impact Capacity/times | ≥5 | ≥5 | ≥5 | ≥8 | ≥10 | ≥15 |
| 2 | Anti-bending damage load/times over deadweight | ≥1.5 | ≥1.5 | ≥1.5 | ≥3 | ≥4 | ≥5 |
| 3 | Compressive strength /Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥5 | ≥5 | ≥5 |
| 4 | Softening coefficient | ≥0.80 | ≥0.80 | ≥0.80 | ≥1 | ≥1 | ≥1 |
| 5 | Surface density g/m2 | ≤70 | ≤90 | ≤110 | ≤55 | ≤70 | ≤85 |
| 6 | Moisture rate a/% | ≤12/10/8 | ≤10/9/7 | ||||
| 7 | Drying shrinkage value /mm/m | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.45 | ≤.0.5 | ≤0.5 |
| 8 | Hanging Force/N | ≥1000 | ≥1000 | ≥1000 | ≥1200 | ≥1300 | ≥1500 |
| 9 | Sound insulation capacity in the air /Db | ≥30 | ≥35 | ≥40 | ≥35 | ≥40 | ≥45 |
| 10 | Fire proof limit /h | ≥1 | ≥1 | ≥1 | ≥2.5 | ≥3 | ≥4 |
| 11 | Heat transfer coefficient w/m2.k | ≤1.0 | ≤1.0 | ||||
| 12 | Radioactivity Limit | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 13 | IRa (Inner radiation indexes) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 14 | Ir (Outer radiation indexes) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
Application:

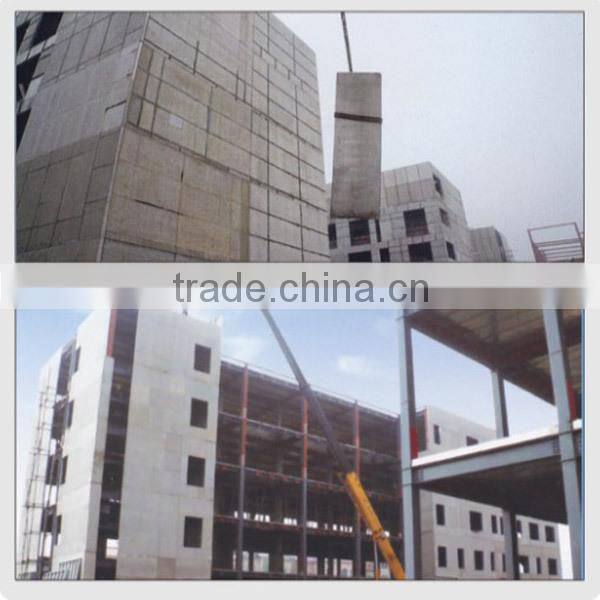

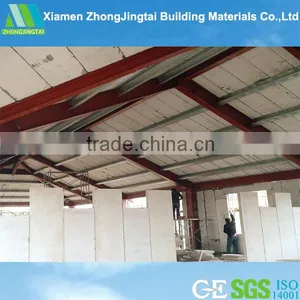

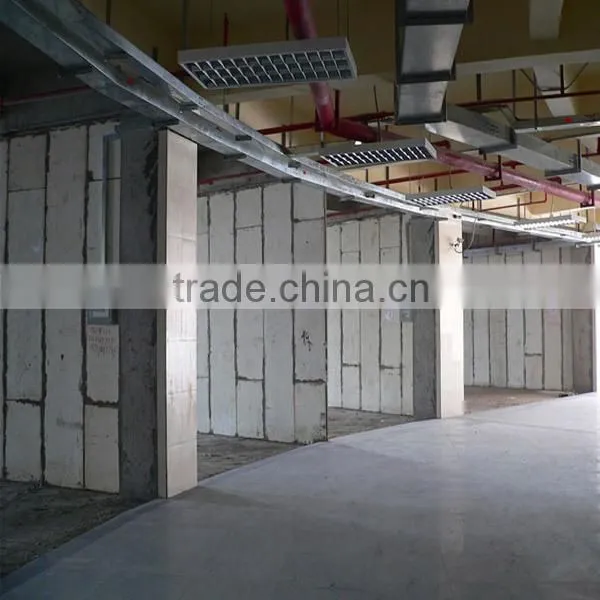

ZJT wall panel is widely used in the partition of highrise buildings, industrial plants, office buildings,
residential houses, work shed and other constructions. It can be also used as non load bearing structure of washroom, kitchen and renovation of old houses. And it's particularly applicable to places with high fireresistance requirement.

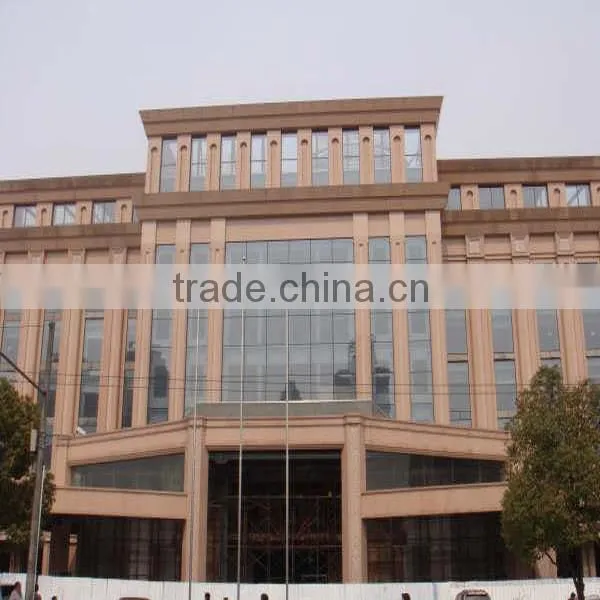

OFFICE BUILDINGS
SCHOOL

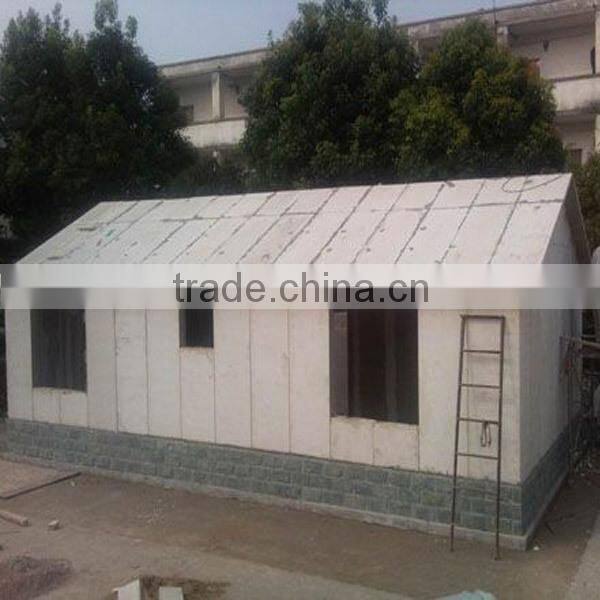

PREFABRICATED HOUSES

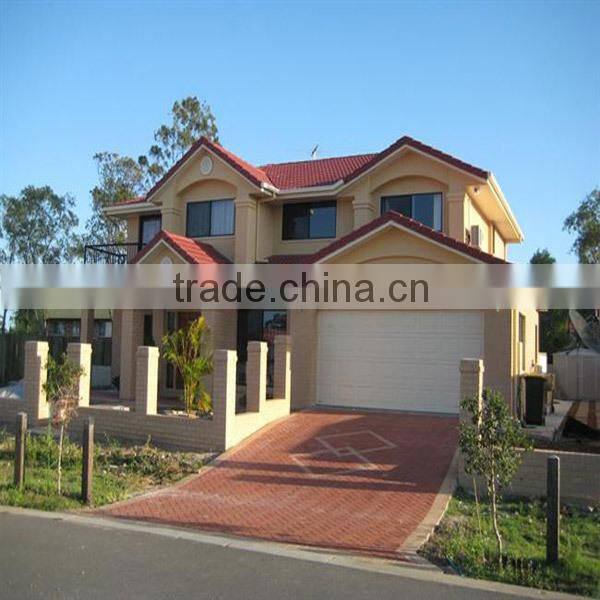

VILLAS

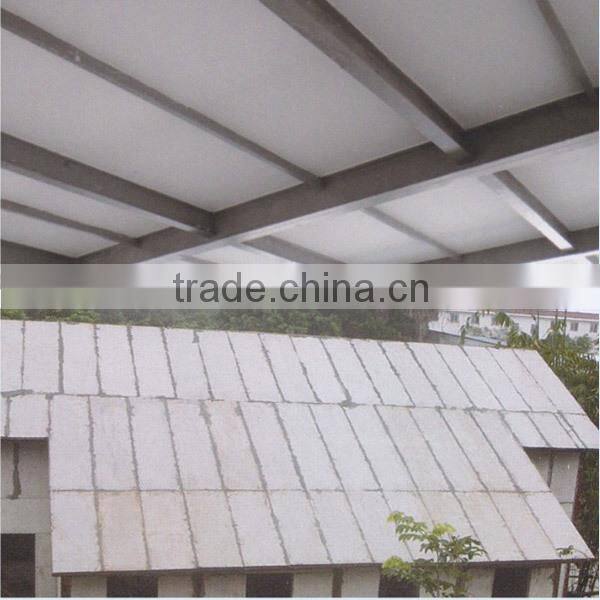

CELINGS:

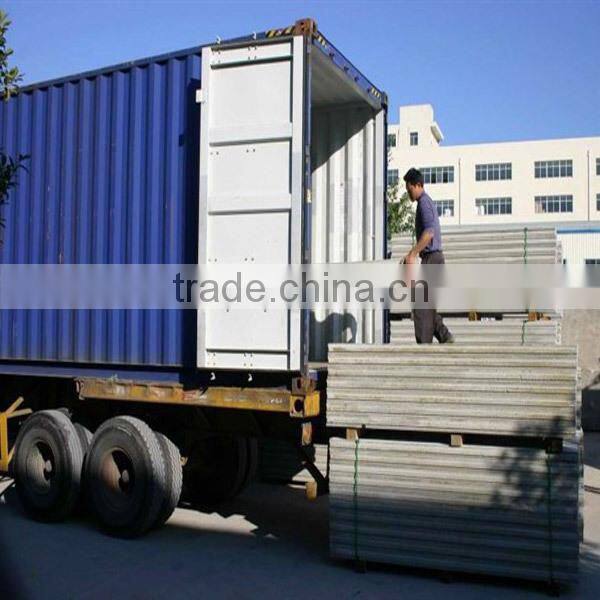

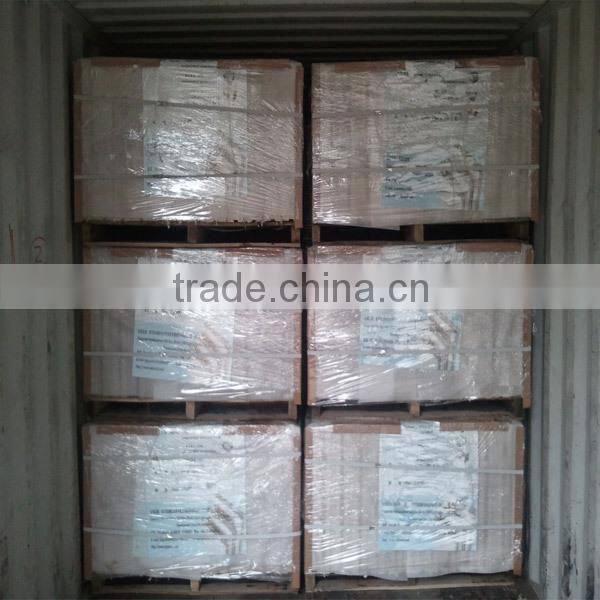

Goods will be packed well in 20"/40"container, shipped by sea.
| Items(mm) Length*Width*Thickness | single(Pc) | Load by 20'GP | ||||||
| m3 | Kg/pc | kg/2 | Qty(pc) | m2 | Tons | |||
| 2270*610*75 | 0.10 | 65 | 52 | 252 | 349 | 17 | ||
| 2270*610*90 | 0.12 | 73 | 60 | 216 | 299 | 17 | ||
| 2270*610*100 | 0.14 | 79 | 65 | 198 | 274 | 17 | ||
| 2270*610*120 | 0.17 | 90 | 74 | 162 | 224 | 16 | ||
| 2270*610*150 | 0.21 | 106 | 88 | 126 | 174 | 15 | ||
| 2270*610*180 | 0.25 | 123 | 102 | 108 | 150 | 14 | ||
| 2440*610*120 | 0.18 | 95 | 69 | 132 | 196 | 14 | ||
| 2440*610*150 | 0.22 | 112 | 76 | 102 | 152 | 12 | ||
| 2440*610*180 | 0.27 | 130 | 88 | 90 | 134 | 13 | ||

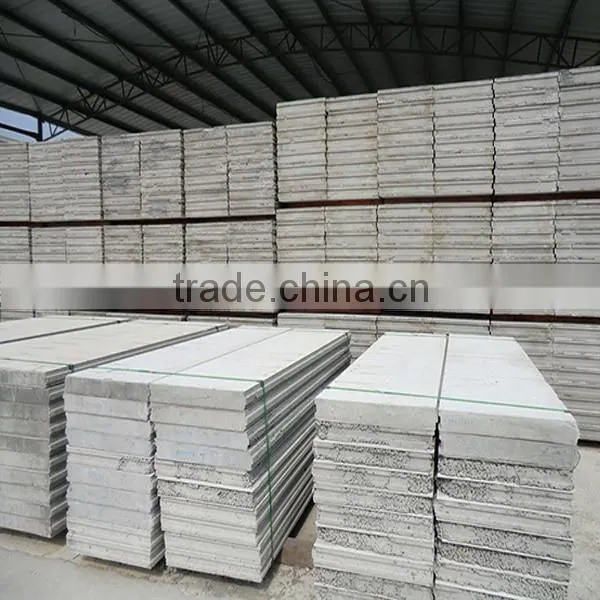

Following some pictures for you better reference!
Xiamen ZhongJingtai building materials Co., Ltd, a comprehensive enterprise, specializes in developing and producing the new energy-saving wall materials. Located in the beautiful city, Xiamen, ZJT has modern working environment and production base. The factory is located in Quanzhou and its annual production capacity is more than two hundred million square meters.
We adhere to the "quality first, win-win cooperation" business philosophy. We can design the sandwich wall panels according to your special request. Welcome to visit our factory and become our clients some day!
One Sight of Office
Q--How do I know if your panels meets the constructional standards in my country?
A--Free sample( yet freight and tax is on buyer) is gladly provided for you to run any tests of: fire proof, sound and heat insulation, anti-impact, radioactivity, etc. Realized this is an innovative structual material, most countries does not even have full standards for it, usually our customers apply for test reports and certifications locally.
Q--I want to set up an factory producing this panel in my country, how much fund and time needed?
A-- ZJThas set up 5 domestic and 3 overseas plant for EPS cement panels. The fund varies from the output, it takes about 2~3 months continuious efforts for us to guide the set-up. Contact us for further infomation please.
Xiamen ZhongJingtai Building Materials Co.,Ltd
Weave your dream &Buid our homeland! ZJT would like to create a new brilliance together with every one of you , our cherished customer and friend !!
Our Buddies:
Remarks : Any further information please feel free to contact me
Contact Person: Alice ji
Tel: +86-592-5216902
Mobile: +86-15280404210
Skype : rose47991
