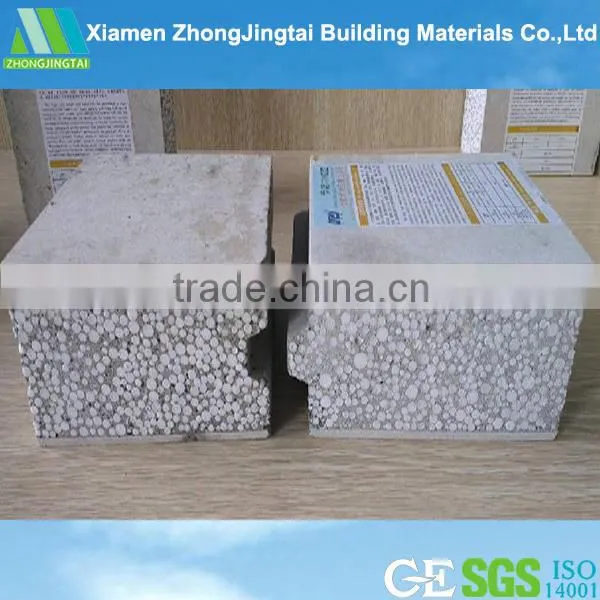

1.Product name : cheap eps panel price/steel polystyrene sandwich panel price factory in xiamen
2.Composition: Fibre reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, Fly ash as fillers and forming by one time compound.
3.Dimension(L*W*T): 1500-3000x610x60,75,90,100,120,150,180mm,general length:2270mmm,Max length : 3000mm
Items(mm) length*width*thickness |
single(Pc) |
Load by 20'GP |
||||
m3 |
Kg/pc |
kg/2 |
Qty(pc) |
m2 |
Tons |
|
2270*610*75 |
0.10 |
65 |
52 |
252 |
349 |
17 |
2270*610*90 |
0.12 |
73 |
60 |
216 |
299 |
17 |
2270*610*100 |
0.14 |
79 |
65 |
198 |
274 |
17 |
2270*610*120 |
0.17 |
90 |
74 |
162 |
224 |
16 |
2270*610*150 |
0.21 |
106 |
88 |
126 |
174 |
15 |
2270*610*180 |
0.25 |
123 |
102 |
108 |
150 |
14 |
2440*610*120 |
0.18 |
95 |
69 |
132 |
196 |
14 |
2440*610*150 |
0.22 |
112 |
76 |
102 |
152 |
12 |
2440*610*180 |
0.27 |
130 |
88 |
90 |
134 |
13 |
4.Usage: It can replace construction materials as red brick, clay solid brick,color-coated steel sandwich board, gypsum block, wire spatial grid structure perlite board, perlite porous board etc. Interior and exterior partition on steel or concrete structure building ,for new construction, additions or renovations, such as bank, office, hospital, school, workshop and so on.
Interior wall
exterior wall
roof system
floor system
5.Product features
Heat insulation and preservation :The feature of energy saving of boards is mainly reflected in it’s heat preservation and insulation ,the major material is polystyrene grains and other anit-freezing and heat preserving environmental protection materials ,which could adjust the indoortemperature at a constant range thus achieving the effects of ecological adjustment .
Water-proof& fire-proof: the face panel of energy-saving boards on both side are 4.5mm calcium silicate fire proof boards and the main material is a mixture of cement ,sand ,fly ash and so on.tests have shown that energy saving boards have a fire proof limit of 4 hours against a high temperature of 1000°C and the incombustibility has reached National A level,besides ,these materials doesn’t give out toxic gas and perfectly meet the international environmental standard ,the tests also prove the water containers can be made by panel with no need for plastering and the containers have no leakage at all .
Sound insulation and absorption:the inside constructional material ( EPS polystyrene grain ) function well in sound insulation and sound-absorbing .
Easy construction and time saving: For the same construction work that takes 12 people and 60 minutes to complete with traditional blocks ,only 3 people and 60 minutes will do Jinyi boards ,thus can save a lot of labor and time cost the construction part .
High Intensity and quake proof: The energy saving boards are all with high intensity and the earthquake resistance can reach 8.5 magnitudes ,the shock resistance index is several times higher than other wall material , the boards can be nailed directly and with expansion bolt to lift and hang heavy things ,the also can be covered by ceramic tile ,wall paper and wood panel ,coating.
Space and cost saving: The thickness of energy boards are between 60mm to 180mm ,compared with traditional blocks ,the building area is largely increased ,in the mean time ,the weight of Jinyi boards is only 1/12 that traditional wall body ,which saves the cost on construction structure a lot .
6. Technology Index:
|
Item |
National Standards |
Testing Indexes |
||||
60mm |
90mm |
120mm |
60mm |
90mm |
120mm |
||
1 |
Anti-impact Capacity/times |
≥5 |
≥5 |
≥5 |
≥8 |
≥10 |
≥15 |
2 |
Anti-bending damage load/times over deadweight |
≥1.5 |
≥1.5 |
≥1.5 |
≥3 |
≥4 |
≥5 |
3 |
Compressive strength /Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥5 |
≥5 |
≥5 |
4 |
Softening coefficient |
≥0.80 |
≥0.80 |
≥0.80 |
≥1 |
≥1 |
≥1 |
5 |
Surface density g/m2 |
≤70 |
≤90 |
≤110 |
≤55 |
≤70 |
≤85 |
6 |
Moisture rate a/% |
≤12/10/8 |
≤10/9/7 |
||||
7 |
Drying shrinkage value /mm/m |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.45 |
≤.0.5 |
≤0.5 |
8 |
Hanging Force/N |
≥1000 |
≥1000 |
≥1000 |
≥1200 |
≥1300 |
≥1500 |
9 |
Sound insulation capacity in the air /Db |
≥30 |
≥35 |
≥40 |
≥35 |
≥40 |
≥45 |
10 |
Fire proof limit /h |
≥1 |
≥1 |
≥1 |
≥2.5 |
≥3 |
≥4 |
11 |
Heat transfer coefficient w/m2.k |
|
|
≤1.0 |
|
|
≤1.0 |
12 |
Radioactivity Limit |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
13 |
IRa (Inner radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
14 |
Ir (Outer radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
7. engineering cases

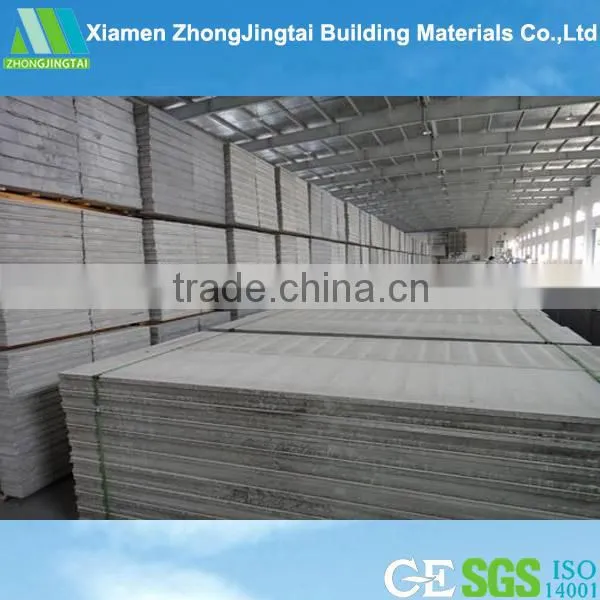

8.our company
Xiamen ZhongJingtai building materials Co., Ltd, a comprehensive enterprise, specializes in developing and producing the new energy-saving wall materials. The factory is located in Quanzhou and its annual production capacity is more than two hundred million square meters.
Any question or information you want to ask, please kindly contact through:
Skype: rose47991 Contact: Alice tel: 0086-592-5216902
