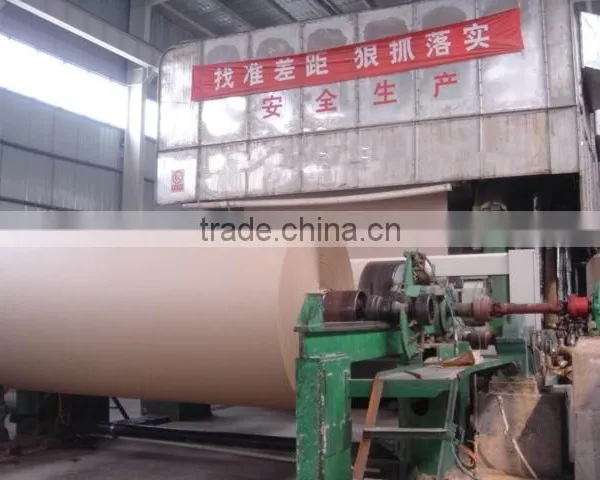

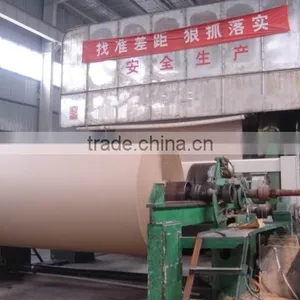

Help CenterCorrugated Paperboard Making Machine
Related Products
-
New Designed in 2014 Recycled Paper MillUS$ 45,000 - 600,000MOQ: 1 Set -
Fluting Paper RollsUS$ 120,000 - 4,500,000MOQ: 1 Set
-
Hot Sell Serviette Tissue MachineUS$ 50,000 - 600,000MOQ: 1 Set
-
4T/D Drawing Paper Making Machine Drawing Paper Mill Plant With Good QualityUS$ 200,000 - 300,000MOQ: 1 Set
-
Zhengzhou Dingchen Machinery Co.,LtdNegotiableMOQ: 1 Set
(I).Technical parameter:
Raw material: Waste paper and pure wood pulp
Weight: 130-300g/m2;
Capacity: 20-25T/D
Net paper width: 2100mm
Wire width: 2450mm
Rail gauge: 2900mm
Drive way: speed adjustment in AC frequency &processing transmission
Work speed: 80-120m/min
(II). Main frame of equipments:

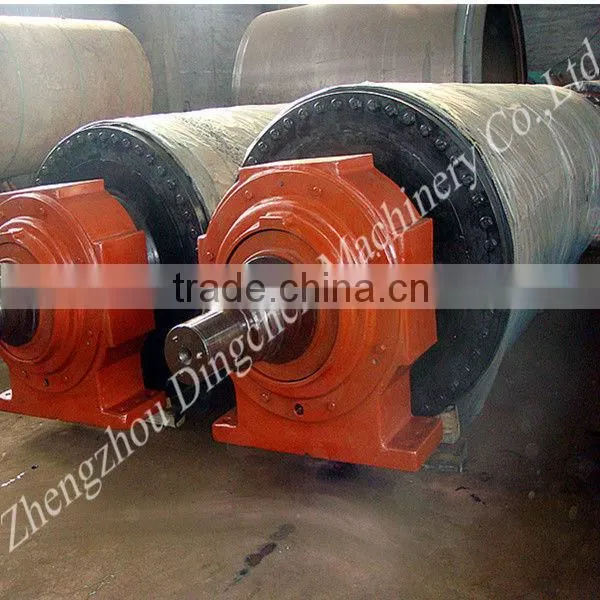

1.Cylinder part: 1250mmx 2450mm x 2900mm stainless steel plate style cylinder mould 3 pcs, 450mm x 2450mm x 2900mm couch roll 3 pcs, 450mm X 2450mm x 2900mm reverse roll 1 pc, rubber hardness HSD 80°±2,
part: 600mmx 2450mm x 2900mm rubber roll 2pcs,rubber hardness HSD 92°±2,650mm x 2450mm x 2900mm natural marble stone roll 2 pcs, pneumatic loaded device.
3.Dryer part: 1500mm x 2450mm x 2900mm alloy dryer can 6 pcs, it is equipped with dry mesh device.
4.Calendar part: three rolls calender1set, bottom roll 400mm x 2450mm x 2900mm, Middle roll 250mm x 2450mm x 2900mm, Rearward roll : 300mm × 2450mm x 2900mm 5.Reeling part: 900mm reeling machine
