1880mm Type Napkin Paper Making Machine Made in China
Technical Parameters:
1.Raw materials: waste paper,virgin pulp
2.Output paper: high and middle class napkin paper,toilet paper , tissue paper
3.Output paper weight: 13-30g/m2
4.Capacity: 5 tons per day
5.Net paper width: 2000mm
6.Wire width: 2300mm
7.Working speed: 60-120m/min
8.Designing speed: 180m/min
9.Rail gauge: 2800mm
10.Drive way: Alternating current frequency converter speed control, sectional drive.
11.Layout type:left or right hand machine.
Raw Materials for the Napkin Paper Making Machine
Main Structure for the Napkin Paper Making Machine:
1 .Cylinder mold part: one set of stainless steel cylinder molde(1500mm×2300mm×2800mm), one set of couch roll (450mm×2300mm×2800mm ) which is coated by rubber, one set of stainless steel cylinder vat.
2. Dryer part: one set of alloy dryer cylinder(2500mm×2300mm×2800mm) , one set of touch roll(550mm×2300mm×2800mm) which is coated by rubber, pneumatic pressure device, and the dryer cylinder is also equipped with 2 sets of scraper knife and one set of double-layer dryer hood.
3. Winding part: one set of winding cylinder (900mm×2300mm×2800mm) ,wind paper on the sweat cylinder.
4. Paper converting section: one set of 1880mm rewinding machine with perforating and embossing 1set, 1 set of paper cutter and plastic bag sealing machine respectively.
The cylinder mold part
Schedule for the Necessary Equipments:
| No | Title of equipment | Quantity (set) |
| 1 | stainless steel cylinder mold | 1 |
| 2 | alloy dryer cylinder | 1 |
| 3 | exhaust hood of the dryer cylinder | 1 |
| 4 | axial-flow ventilator | 1 |
| 5 | roots vacuum pump | 1 |
| 6 | vacuum suction box | 2 |
| 7 | 5m3 High concentration hydra-pulper | 1 |
| 8 | double disc pulp refiner | 2 |
| 9 | 0.6m2 pressure screen | 1 |
| 10 | sand removal | 4 |
| 11 | 700mm impeller | 4 |
| 12 | 8 inch pulp pump | 2 |
| 13 | 6 inch pulp pump | 6 |
| 14 | Electrical operation cabinet | 1 |
| 15 | boiler | 1 |

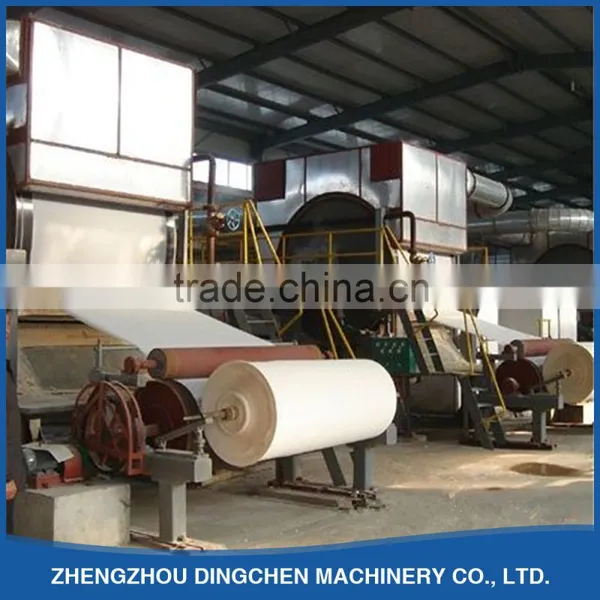

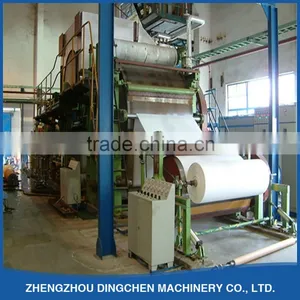

Pictures of installation:
We are the professional Chinese manufacturer in the field of paper making machine, our products covers pulp making equipment, toilet paper machine, kraft paper machine, corrugated paper machine, A4 paper machine, paper coating paper and the related spare parts.
We are able to design and work out the production line that meet customers' needs.
So, welcome to visit our factory to have a better understanding of our company and the products.
Contact person: Grace Guo Skype: graceguo15
Mobile: 0086-15903665291
