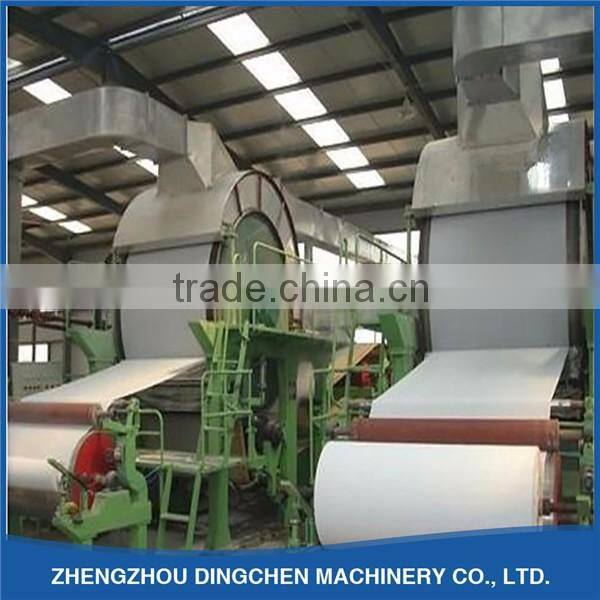

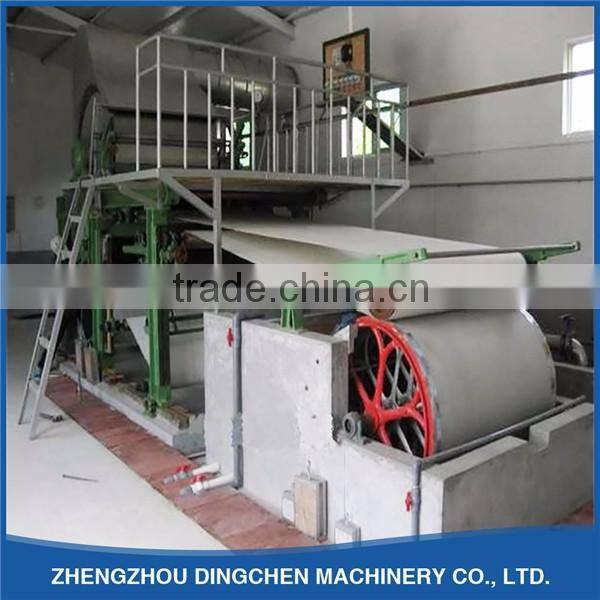

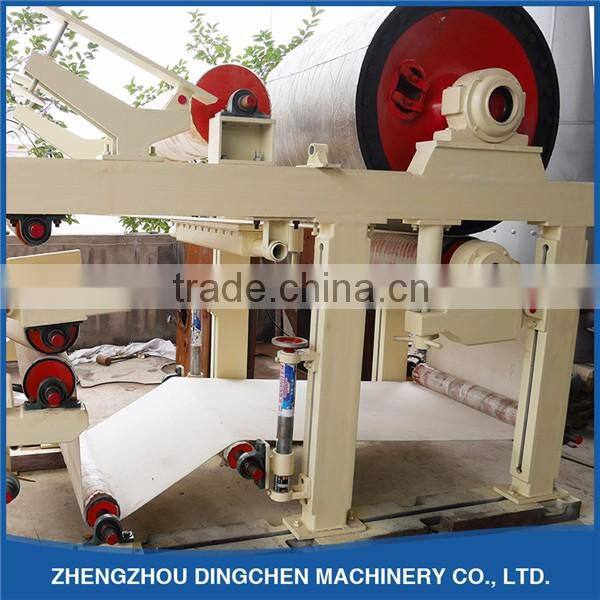

Zhengzhou Dingchen 2880mm Excellent Quality Toilet Tissue Paper Production Line/Waste Paper Recycling Machine
Technical parameters of 2880mm Toilet Tissue Paper Production Line:
1.Raw material:waste paper(waste books paper,old office paper,white paper off-cut from printing factory and waste newspaper,magazine);
2. Output paper: tissue paper, toilet paper
3. Output paper weight: 15-30g/m2
4.Capacity: 10 tons per day
5. Net paper width: 2880mm
6. Wire width: 3300mm
7.Working speed: 130-150m/min
8. Designing speed: 200m/min
9. Rail gauge: 3900mm
10. Drive way: Alternating current frequency converter speed control, sectional drive.
11.Layout type:left or right hand machine.

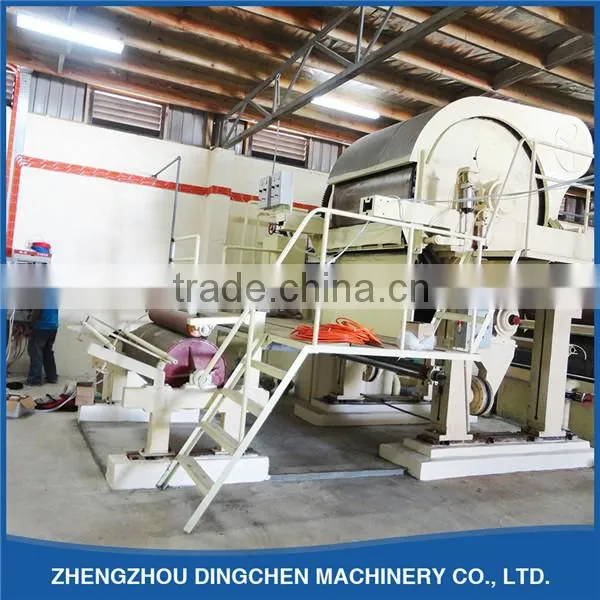

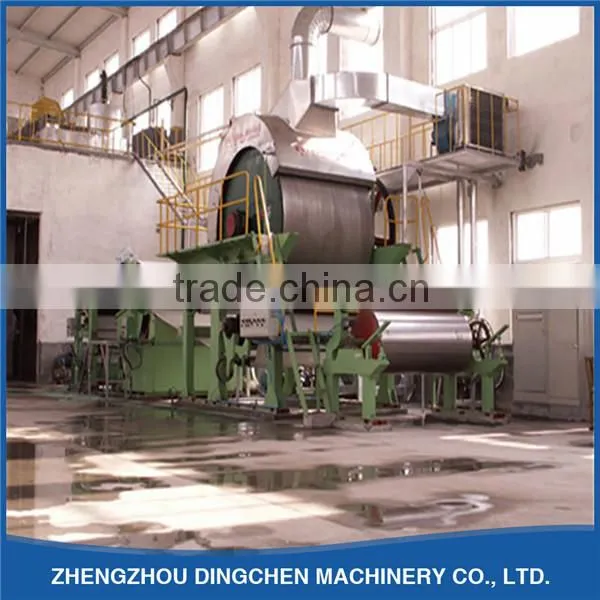

used tissue paper making machine
Main Structures of 2880mm Toilet Tissue Paper Production Line:
1.Cylinder mold part: 1800mm×3300mm×3900mm stainless-steel cylinder mold 1set. Φ600mm××3300mm×3900mm couch roll 1 set, coated by rubber,rubber hardness 38±2SR. Cylinder vat is made from stainless steel plate.
2.Dryer part: 3000mm×3300mm×3900mm alloy dryer cylinder 1 set, with double-deck breath exhaust hood,Φ600mm×3300mm×3900mm touch roll 1 set, coated by rubber, rubber hardness 90±2SR.,pneumatic pressurizing device, with pneumatic scraper blade 2 sets.

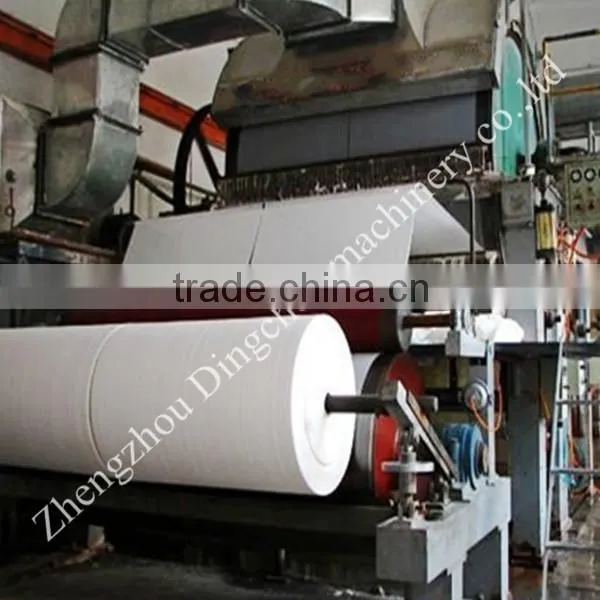

3.Winding part: Φ1000mm×3300mm×3900mm cooling cylinder 1 set ,winding paper on cooling cylinder.
4.Paper converting section:

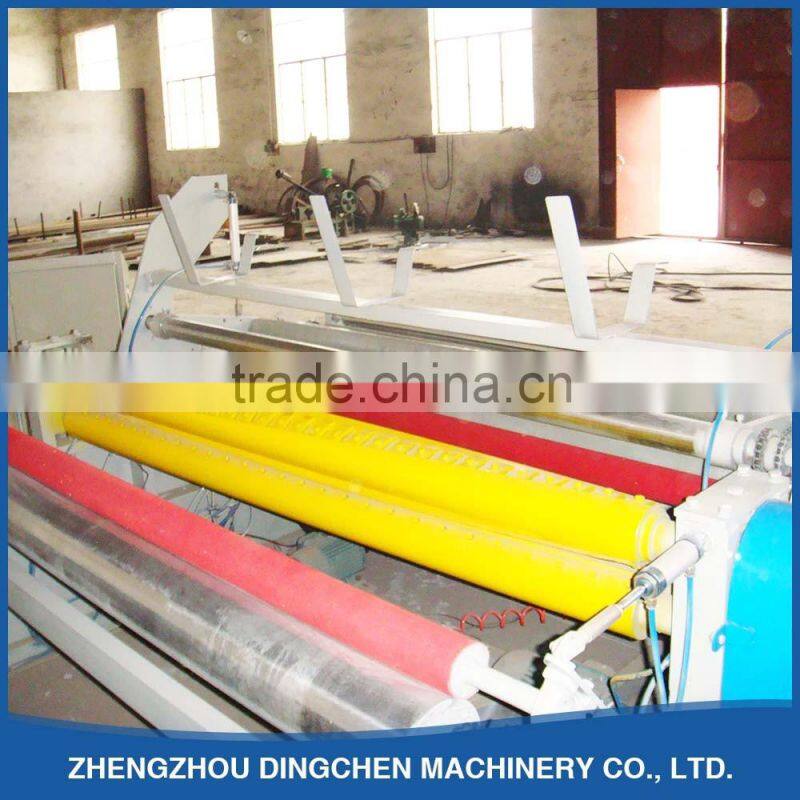

2880mm rewinding machine with perforating and embossing: 1set,
Paper Cutting Machine: 1set, Plastic bag sealing machine: 1set

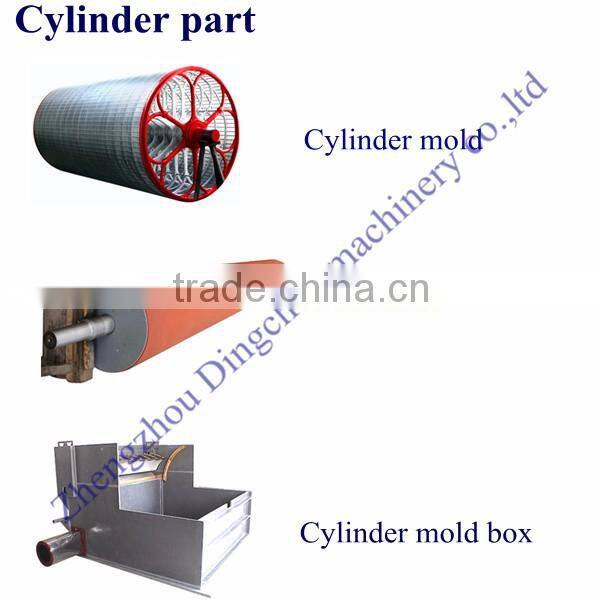

Cylinder Mold Part:

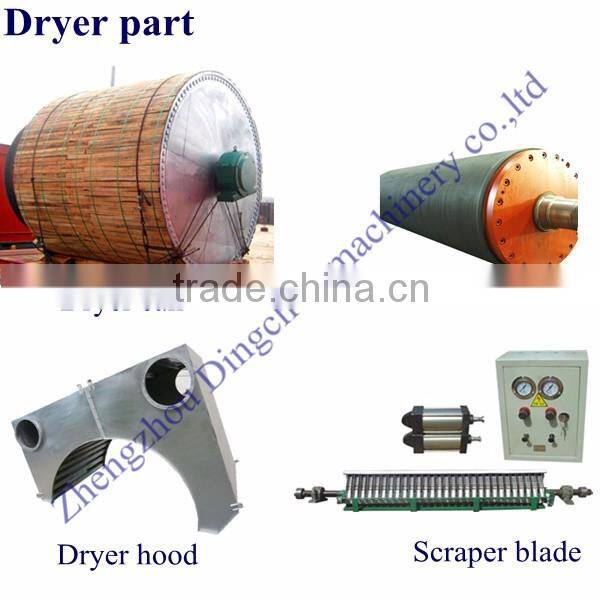

Dryer Part:
Main equipments:
No. |
Item |
Function |
1 |
Stainless steel cylinder mold |
Extract the pulp fiber to felt |
2 |
Alloy dyer cylinder |
dry the wet paper |
3 |
Double-deck breath exhaust hood of dryer cylinder |
To cover the dryers and collect the hot & moist air which is diffused by dryers |
4 |
Φ1000 Axial-flow ventilator |
To ventilate and pull out the hot & moist air in the exhaust hood |
5 |
Roots vacuum pump |
To provide the vacuum force for the suction box |
6 |
Vacuum suction box |
To absorb the water in the wet paper |
7 |
Air compressor |
To provide the compressed air for the pneumatic device |
8 |
Frequency conversion controlling cabinet |
To control the running speed of the machine |
9 |
8m3 High concentration hydra-pulper |
break the recycle paper into pulp |
10 |
2m2 High frequency vibrating screen |
To separate and remove the small impurity in the pulp |
11 |
Φ700mm impeller |
To stir the pulp and make sure the pulp and water mixed well |
12 |
0.6m2 pressure screen |
To make the pulp more finer |
13 |
35m3 Bleacher (include drive part) |
To whiten the pulp through bleaching |
14 |
Φ450mm double disc pulp refiner |
To make the pulp much finer and smoother |
15 |
Low concentration sand remover |
To remove the sand and impurity in the water and pulp |
16 |
Pulp pump |
To provide the pulp for the needed machine |
17 |
Electrical operation cabinet |
To control the machines run or stop |
18 |
2 T Boiler (burning diesel) |
To provide the hot steam for the dryers |
Brief Introduction of Paper Making:
The paper making production line relies on waste paper, virgin wood pulp, wheat straw, sugarcane bagasse, cotton as the raw material to make the high quality paper( depends on the requirements of the clients), the finished product is paper roll, and paper sheet, then through the paper deep processing machines, we are able to get the final paper product you want. It comprises the following sections:
1 pulp making equipments;
2 sizing press system;
3 paper machinery;
4 paper cutting and packing machines ( the deep processing machines);
4 boiler section;
5 hot steam recycling system;
7 spare parts.
Paper Machines:
Zhengzhou Dingchen Machinery Co., Ltd has a history more than 30 years in producing
paper making machines.
Our factory gathers and trains many essential technicians and management system to
ensure all products meet the qualification of ISO
Our machines have been exported to many countries such as Syria, Egypt, Mongolia,
Pakistan, Bangladesh, Jordan, Russia, Indonesia and so on.
We win high praise from clients at home and abroad for our sophisticated craft, high quality
and excellent function.
With our machines and production line, you can get all kinds of paper sold in the market.
Different raw materials and different capacities will be different design for the whole
production line.
I If you are new in this field, then our engineer can design the civil work and the workshop
for you and also can give you a budget scheme for the
whole investment.
Welcome joining us and striving for better development together!
The Drawing of 2880mm Toilet Tissue Paper Production Line:
- Technical Consultation
- Assess Feasibility On-site
- Detailed Design of Machine and Factory or Workshop
- High Durability Equipment and Low Maintenance Cost
- Continuous Process (Less Labour Required)
- Good in-sale service and after-sale service
- Supplying Spare Part for Long Time
- Installing and Testing the Whole Production Line
- Training Engineers and Workers(operate and maintain machine)
- Power Consumption Low
Q1. What is your product range?
1. Toilet paper machine which can produce toilet paper, tissue paper,napkin paper,handkerchief paper,towel paper and kitchen using paper etc.
2. Culture paper machine which can produce A4 paper,notebook paper,copy paper, writing paper,printing paper and newsprinting paper etc.
3. Kraft paper machine which can produce kraft paper, fluting paper, corrugated paper, kraft liner paper, carton box paper and packing paper etc.
4.Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper.
Q2. Are you a manufacturer?
Yes, we are a direct manufacturer of paper making machines for 30 years.
Q3. Do you have stock production to sell?
No. We have OEM orders, which means size,material, capacity,design etc. Most of these are decided by customers' requirements.
Q4. What information should I let you know if I want to get the quotation?
1. the paper you want to produce?
2. the raw material you use?
3. the capacity you want t produce per day?
4. the paper weight you require?
5. the paper width you require?
Q5. How many days can you deliver the goods?
Within 35-45 days after receiving the first deposit payment.
Q6. What is your payment term?
30% TT after signing the contract, 70% TT before shipment or L/C at sight.
If you're interested in it, please feel free to contact me:
