Highly Automatic Culture Paper Production Machine with Quality Control Scanner
- Qingdao Port
- T/T Credit Card PayPal
You May Like
-
Automatic Writing Paper Making Machine with Durable Parts and 10T/D Capacity
-
Waste Paper Recycling Plant for the Production of Newspaper and Writing Paper
-
High Speed and Quality Newspaper&Culture Paper Production Machine with Muti-dryers
-
Muti-Cylinder Type Writing Paper Machine with Capacity of 8 Tons/Day
-
Duplex Paper and Culture Paper Production Plant with Fourdrinier Forming Section
-
Top Grade Cultural Paper and News Paper Production Machine with Muti-cylingder Production Line
Product Details
| Condition | New | Type | Other, Printing Paper Cultural Paper and News Paper Machine | |
| Computerized | Yes | Place of Origin | Henan, China | |
| Brand Name | Dingchen | Model Number | 10T/D Culture Paper Making Machine | |
| Voltage | 240V-380V | Power(W) | 240W-380W | |
| Dimension(L*W*H) | N/A | Weight | N/A | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Containers, wooden boxes, boards and other materials required
Product Description
Highly Automatic Culture Paper Production Machine with Quality Control Scanner
1. Raw material: Waste paper (waste office paper/book paper/printing factory off-cuts/newspaper/magazine), virgin pulp, wood pulp board, bagasse, cotton stalk, wood chip, wheat straw, reed, rice straw
2. Output paper: Cultural Paper/Printing Paper/Duplex Paper/News Paper/Writing Paper
3. Output paper weight: 50-100g/m2
4. Capacity: 1-10 tons per day
5. Net paper width: 1092mm~3200mm
6. Wire width: 1092mm~3200mm
7. Working speed: 80-120m/min
8. Designing speed: 200m/min
9. Rail gauge: 1300mm-3900mm
10. Drive way: AC frequency converter speed control, section drive
11. Layout: Left or right hand machine
Note: different model has different specifications
Main Structures
1. Cylinder mold section: Stainless-steel cylinder mold 2set,couch roll 3 set(including 1 reverse roll), rubber coated with shore hardness 38℃±2
2. Pressing section: natural marble roll 1 set, rubber roll 1 set with shore hardness 92℃±2, pneumatic pressure device

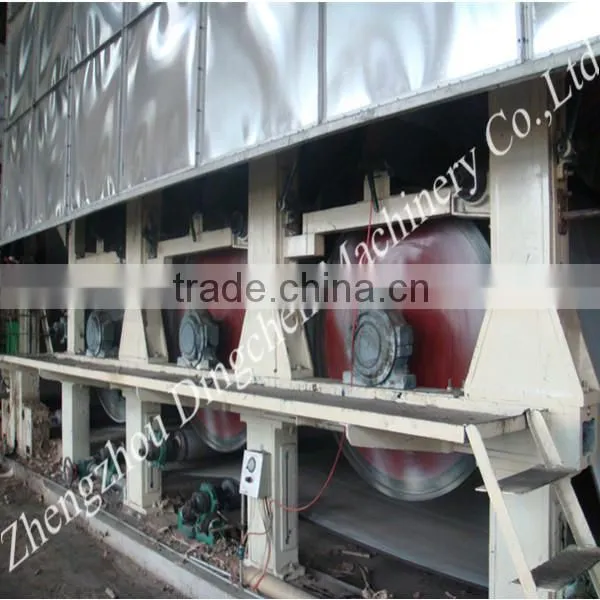

3. Drying section: Alloy dryer cylinder 2 sets, touch roll 1 set with shore hardness 92℃±2, pneumatic pressure device
4. Winding section: winding cooling drum 1 set
NO. | Equipments | Qty(set) |
1 | Culture paper machine | 1 |
2 | Dryer can exhaust hood | 1 |
3 | Axial ventilator | 1 |
4 | Roots Vacuum Pump | 1 |
5 | Suction box | 6 |
6 | Winding machine | 1 |
7 | Rewinding machine | 1 |
8 | High consistency hydrapulper | 1 |
9 | Highfrequency screen | 1 |
10 | Desander | 1 |
11 | Centrifugal screen | 1 |
12 | Double disc refiner | 2 |
13 | Bleacher | 1 |
14 | Thruster | 2 |
15 | Pulp pump-100 | 4 |
16 | Pulp pump-150 | 2 |
17 | Frequency conversion control cabinet | 1 |
18 | Air pump cabinet | 1 |
19 | Working table | 1 |
20 | Boiler | 1 |
Our Advantages
1. Competitive price
2. 30 years’ professional experience in design and manufacturing of paper making machines
3. Advanced technology and state of art design, stringent testing and quality inspection process
4. Extensive experience in overseas projects, including plant design, installation, test run, staff training, production and maintenance consultation
5. Extensive experience in products customization to meet client’s special requirements
