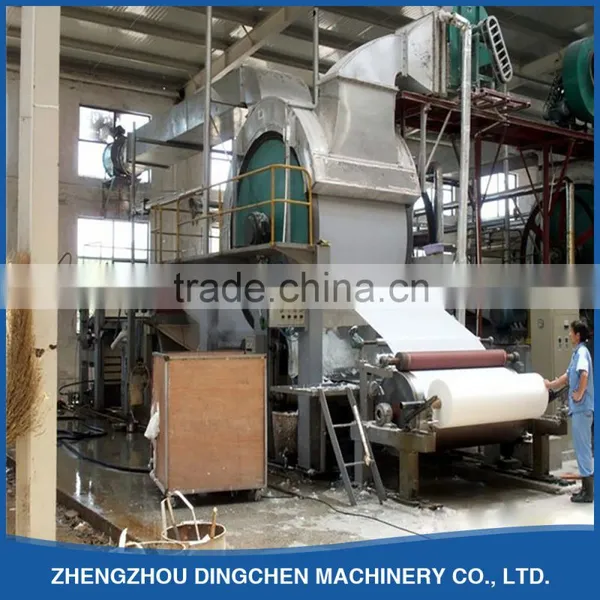

2016 fashion manufacturer's price 1092mm napkin paper making machine
Technical parameter:
1. Output paper: toilet paper ; tissue paper
2. Raw material:recycle paper
3. Capacity: 2 tons per day
4. Net paper width: 1200mm
5. Paper weight: 14-30g/m2
6. Drive way: AC frequency converter speed adjusting, section drive.
7.Layout type:left or right hand machine.

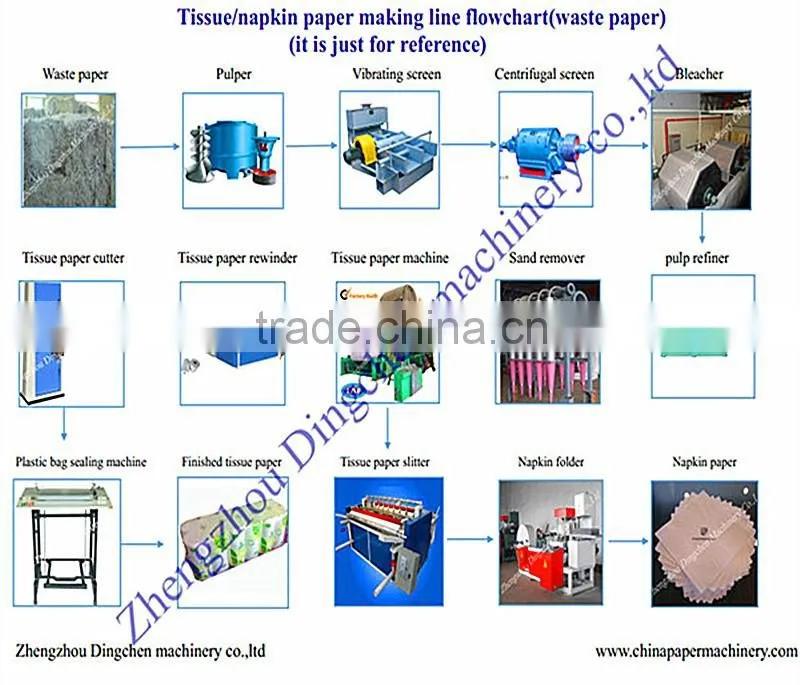

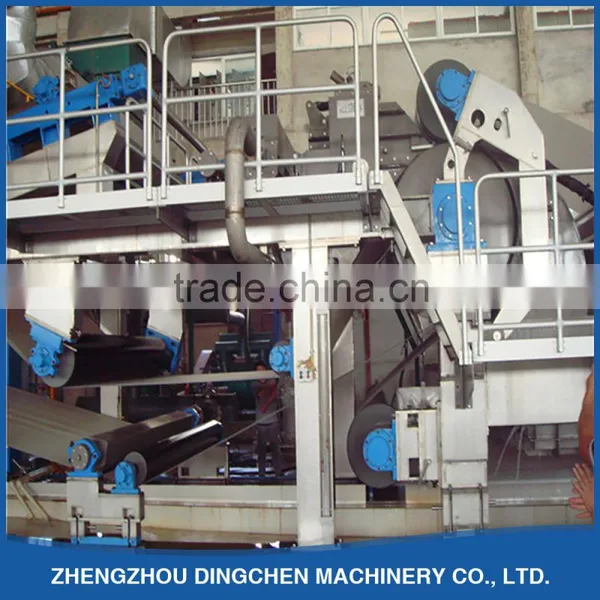

Main equipments:
2016 fashion manufacturer's price 1092mm napkin paper making machine
No. |
Item |
Function |
1 |
Stainless steel cylinder mold |
Extract the pulp fiber to felt |
2 |
Alloy dyer cylinder |
dry the wet paper |
3 |
Exhaust hood of dryer cylinder |
To cover the dryer and collect the hot & moist air |
4 |
Φ600 Axial-flow ventilator |
To ventilate and pull out the hot & moist air in the exhaust hood |
5 |
Roots vacuum pump |
To provide the vacuum force for the suction box |
6 |
Vacuum suction box |
To absorb the water in the wet paper |
7 |
Air compressor |
To provide the compressed air for the pneumatic device |
8 |
Frequency conversion controlling cabinet |
To control the running speed of the machine |
9 |
2m3 High concentration hydra-pulper |
break the recycle paper into pulp |
10 |
0.9m2 High frequency vibrating screen |
To separate and remove the small impurity in the pulp |
11 |
Φ500mm impeller |
To stir the pulp and make sure the pulp and water mixed well |
12 |
0.5m2 centrifugal screen |
To make the pulp finer |
13 |
35m3 Bleacher (include drive part) |
To whiten the pulp through bleaching |
14 |
Φ250mm pulp refiner |
To make the pulp much finer and smoother |
15 |
Low concentration sand remover |
To remove the sand and impurity in the water and pulp |
16 |
Pulp pump |
To provide the pulp for the needed machine |
17 |
Electrical operation cabinet |
To control the machines run or stop |
18 |
1T Boiler (burning gas) |
To provide the hot steam for the dryers |

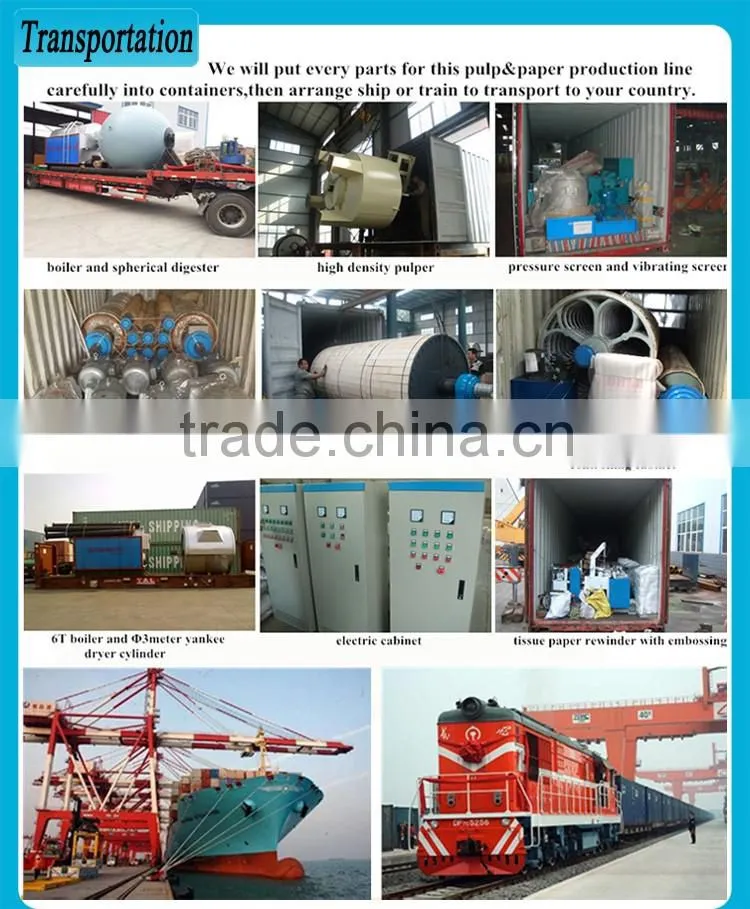

Packaging Details : wooden case, straw rope,water proof PVC film,foam,nylon bags,carton or according to the customer's requirement.

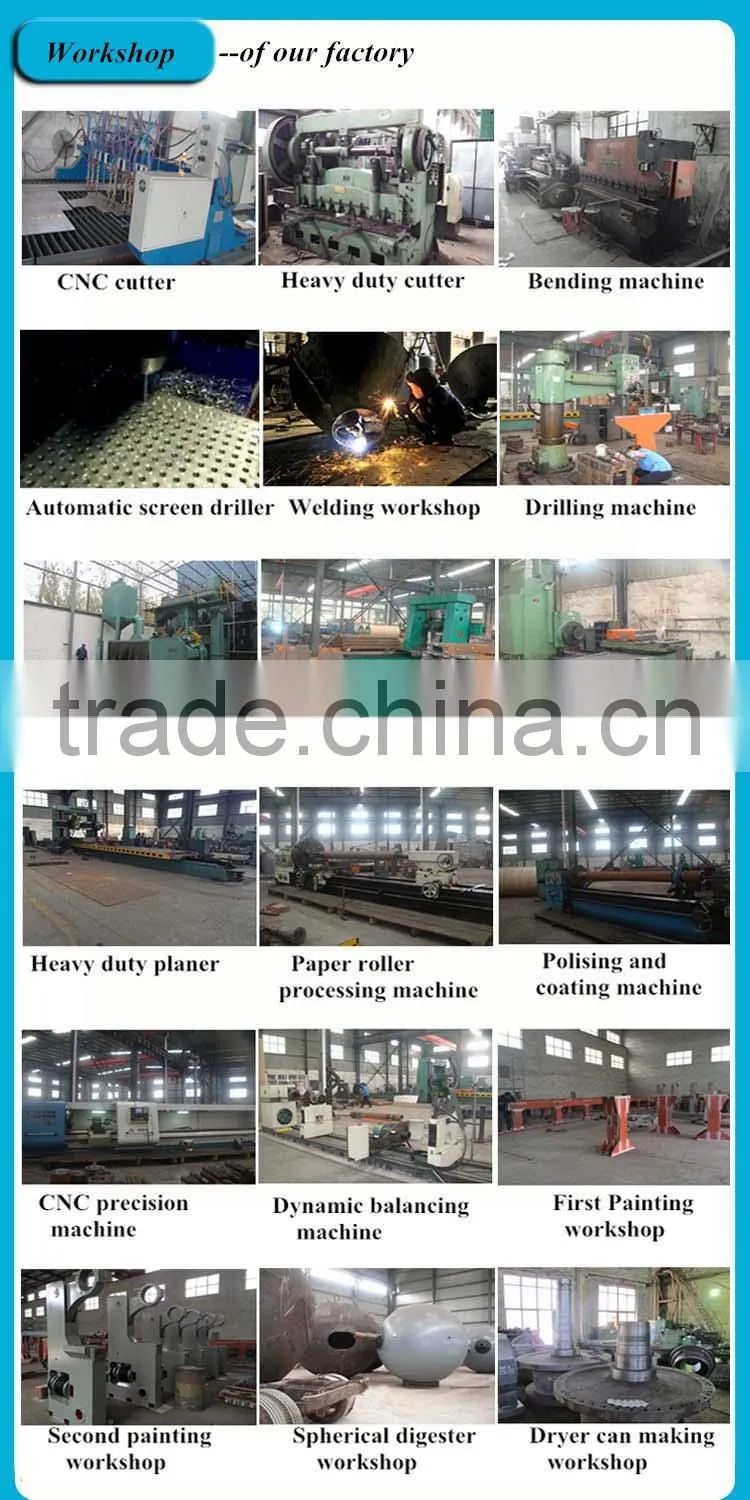

We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
- Technical Consultation
- Assess Feasibility On-site
- Detailed Design of Machine and Factory or Workshop
- High Durability Equipment and Low Maintenance Cost
- Continuous Process (Less Labour Required)
- Good in-sale service and after-sale service
- Supplying Spare Part for Long Time
- Installing and Testing the Whole Production Line
- Training Engineers and Workers(operate and maintain machine)
- Power Consumption Low
1.What information do you need, if i need to get a quotation from you?
Answer: output paper type; capacity(tons per day); raw material; output paper weight(grams/ m2).
2.How long is guarantee period for paper making machine?
Answer: 12 months after formal operational.
3.What is the delivery time if we make a order from you?
Answer: Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer: (1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%L/C at sight. (3). 100%L/C at sight.
5.How is the quality of your equipment?
Answer:(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.
(2). We have a technician team of engineers and experts.They mainly research the advanced paper making technology,to make sure our machines’ design are newest.
(3). The machines will be pre-installed at workshop before delivery.
(4). All of our machines has audited the certificate of ISO 9001:2008 and SGS.
6.Why your price is higher than other similar supplier?
Answer: Different quality,different price.Our price is matched with our high quality.Compared with other suppliers based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
7.Can we visit your factory and the running machine has installed in China?
Answer: Welcome to visit our factory.You can check our production ability,processing ability,check our facilities and running paper production line. What is more,you can discuss with engineers directly,and learn the machines well.
