JM-8U Satellite SAW Filtered UHF VHF TV 8 Channels Separated Agile Modulator Quality Choice
US$ 160 - 190
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Detaik
Model Number:
JM-8U
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JM-50168 Fixed Adjacent Modulator 16 Channel CATV Head-end 16 In 1NegotiableMOQ: 1 Piece -
8in1 Conveter 8channels Agile CATV System Modulator DTK-JM8UNegotiableMOQ: 1 Piece
-
JM-50168 CATV System Fixed CATV Modulator 16 In1 CATV ModulatorUS$ 470 - 500MOQ: 1 Set
-
High Quality 16 In1 CATV Fixed RF Modulator JM-50168US$ 470 - 500MOQ: 1 Set
-
Good Quality AV to RF Modulator / 1CH Fixed Agile ModulatorNegotiableMOQ: 10 Sets
Place of Origin
Guangdong, China
Brand Name
Detaik
Model Number
JM-8U

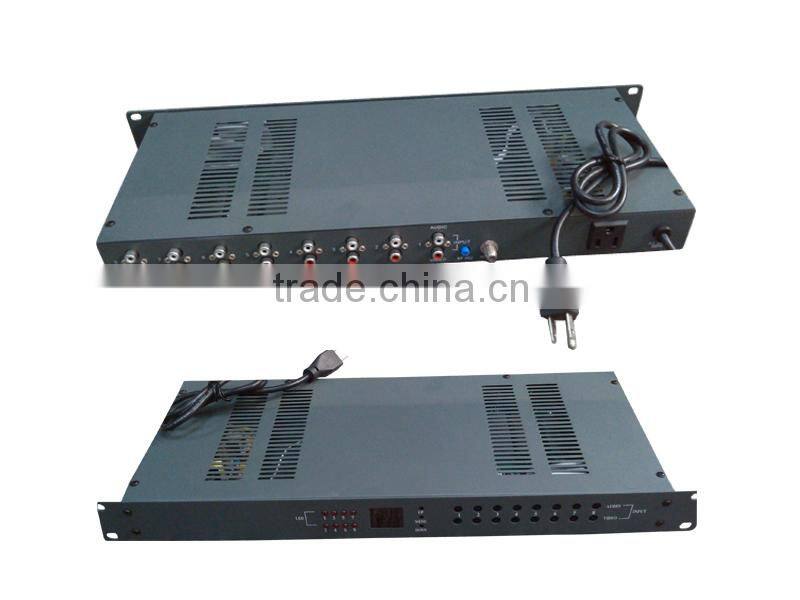

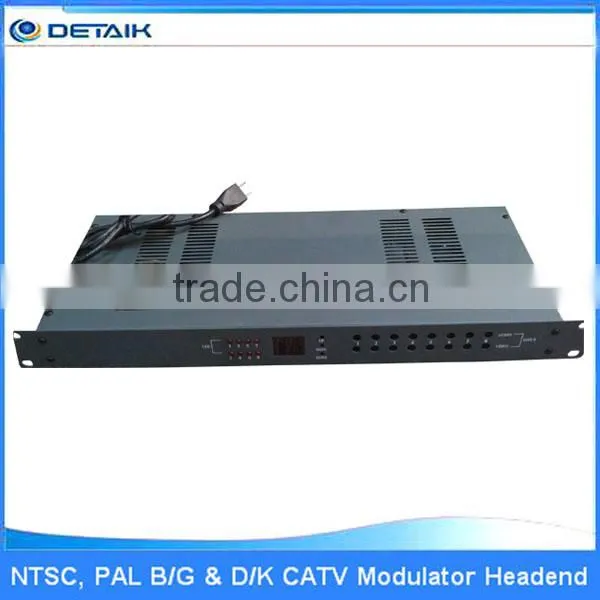

JM-8U Satellite SAW Filtered UHF VHF TV 8 Channels Separated Agile Modulator
Product Description
- 8 channels separated agile modulator
- UHF / VHF
|
reflection |
output frequency range |
47MHz ~ 550 MHz or 470 ~ 860MHz |
frequency accuracy |
± 5kHz |
|
output level |
90 dBμV |
|
out of side suppression |
- 60dBc max. |
|
output impendence |
75 Ω |
|
output reflection |
12dB min. in any frequency |
|
|
video frequency |
video to audio carrier ratio |
18 ± 2dB |
input level |
0.6 ~ 1.5Vp-p |
|
input impedance |
75Ω |
|
input reflection |
30dB min. |
|
video s/n |
60dB |
|
C/L delay |
45nsec |
|
frequency response |
± 1dB |
|
differential gain |
± 5 % ( modulator 87.5 % ) |
|
differential phase |
± 5° ( modulator 87.5 % ) |
|
|
audio frequency |
input level |
-10 ~ 10 dBm |
input impedance |
10KΩ min. |
|
frequency response |
± 1dB |
|
distortion |
1 % |
|
signal to noise ratio |
-60dB |
|
audio and video difference |
according to the TV system standard. |
|
power supply |
voltage |
110 ~ 245V |
power supply watt loss |
15W max |
