8in1 Conveter 8channels Agile CATV System Modulator DTK-JM8U

Name: 8in1 Conveter 8channels Agile CATV System Modulator DTK-JM8U
Brand: detaik
SKU: 103010243
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

detaik

Model Number:

DTK-JM8u

Shenzhen Detaik Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name detaik

Model Number DTK-JM8u

Specifications

8in1 8channels
High temperature application is forbidden
Liquid cleaning is forbidden
3-core Power cable,

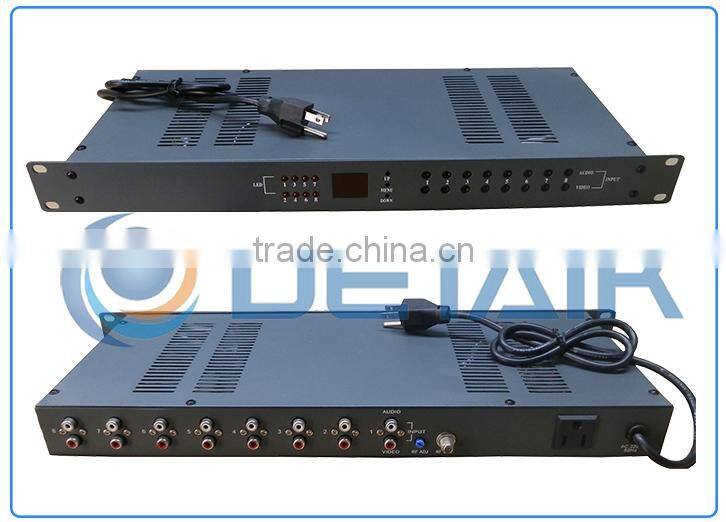

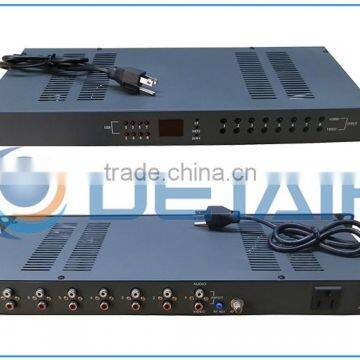

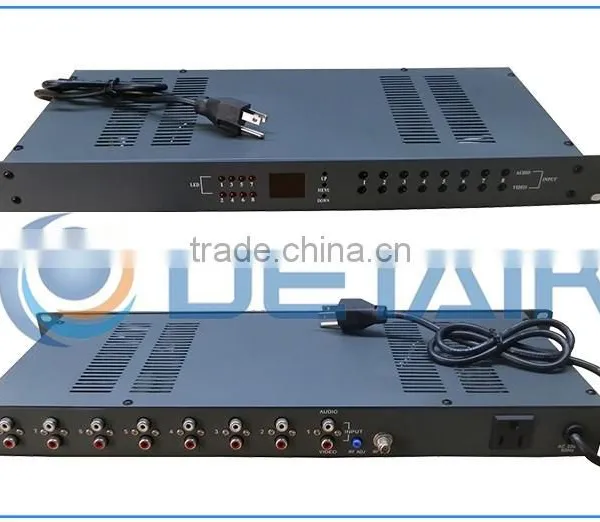

8in1 conveter 8channels Agile CATV System Modulator DTK-JM8U

Product Description

Features

1.Microprocessor control.

2.Audio/Video dual phase lock.

3.High quality SAW filter.

4.High RF output level and high reliability.

5.SMD technology ensures stability.

6.Wide range power supply.

7.Embeded with 8 fixed channel modules.

8.Standard 19’, 1RU.

Specifications

Output Frequency	MHz	45—860
Output RF Level	dBµV	≥90
Spurious Supersession	dB	≥60 (RF out level at max.)
RF Out Return Loss	dB	≥13
Video Modulation	%	87.5(Video Input Level @ 1Vp-p)
Video Flatnes	dB	±1.2
Differential Gain	%	≤3
Differential Phase	°	≤3
Video S/N	dB	≥60
Chroma Luminance Delay Δt	ns	\|Δτ\|≤45
Video-Audio Frequency Separation	KHz	6500±2(PAL-D/K);6000±2(PAL-D/I)
Video Frequency Accuracy Δf	KHz	≤5
Audio Frequency Deviation	KHz	50
Audio Distortion	%	≤1
Audio S/N	dB	≥60
Audio Pre-Aggravate	µs	50
Power Supply	V	AC 90~264±10%
Working Temperature	°C	5—50
Relative Humidity	%	≤85
Working Air Pressure	Kpa	86—106
Dimensions	mm	483x140x45
Weight	Kg	2
