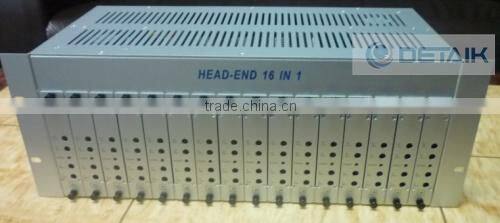

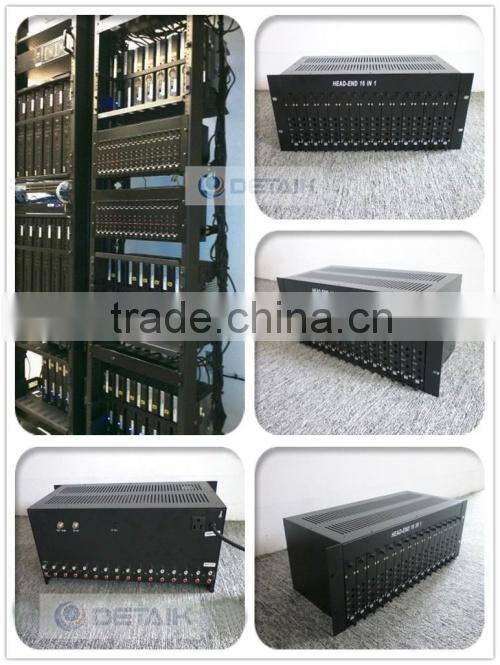

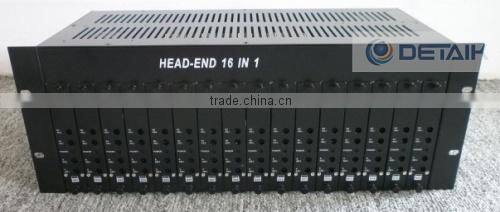

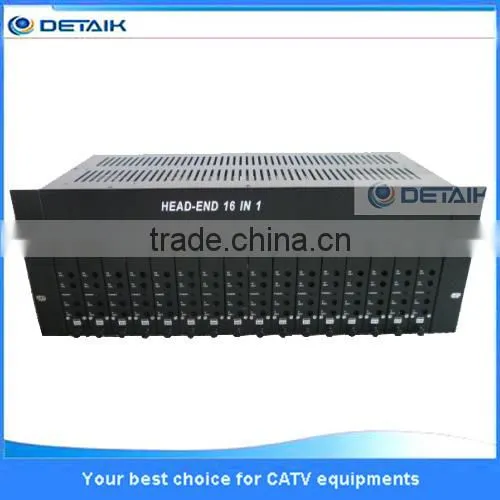

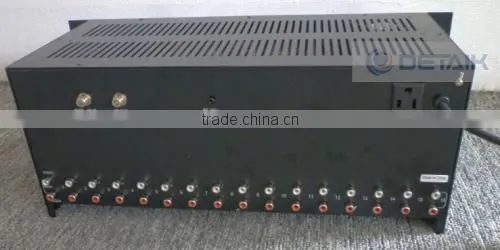

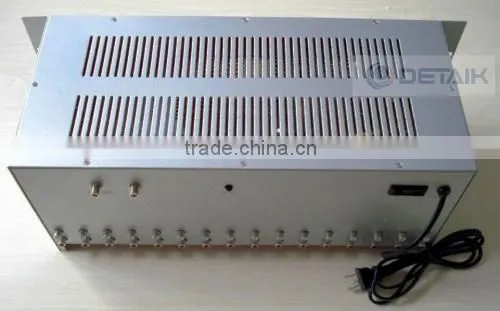

High Quality 16 In1 CATV Fixed RF Modulator JM-50168

Name: High Quality 16 In1 CATV Fixed RF Modulator JM-50168
Brand: detaik
SKU: 103010285
Availability: InStock

US$ 470 - 500 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

detaik

Model Number:

dtk-50168 converter

Shenzhen Detaik Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name detaik

Model Number dtk-50168 converter

High Quality 16 in1 CATV Fixed RF Modulator JM-50168

Product Description

SPECIALLY ESTABLISH BY 16 CHANNELS MINI MODULATOR

Technical Characteristics:

1.Compact size, easy installation;

2.Micro-computer control, image sound two-phase locking;

3.IF SAW filters to deal with, excellent VSB;

4.High-output, continuously adjustable sound frequency offset, high reliability;

5.A wide range of linear power supply;

6.The use of SMD technology, machine stability.

Output frequency range	MHz	47—871
RF output level	dBµV	110 or up
Parasitic output rejection ratio	dB	≥60(Maximum output frequency)
RF output return loss	dB	≥13
Video transfer system	%	87.5(Video input level 1Vp-p)
Video-band flatness	dB	±1.2
Differential gain	%	≤3
Differential Phase	°	≤3
Video signal to noise ratio	dB	≥60
Color / light time delay difference	ns	\|Δτ\|≤45
Image/sound power ratio (V / A)	dB	10—20 Continuously adjustable
Images,sound freq. spacing	KHz	6500±2(PAL-D/K); 5500±(PAL-B/G);4500±2(NTSC)
Accuracy of image carrier freq	KHz	≤5
Audio Frequency Modulation	KHz	50
Audio total harmonic distortion	%	≤1
Audio signal to noise ratio	dB	≥60
Audio pre-emphasis	µs	50
Power Supply	V	AC 90-265V
Ambient temperature	°C	5—50
Relative humidity	%	≤85
Atmospheric work pressure	Kpa	86—106
Overall dimensions	mm	550x290x260
Gross Weight	Kg	12.00

2)Active Mixer (Combiner) Technical Parameter:
