Home > Products > kraft paper machine > High Quality 3200mm Three-layer Fourdrinier Type Kraft Paper/Cardboard Paper Manufacturing Machinery from China Supplier
High Quality 3200mm Three-layer Fourdrinier Type Kraft Paper/Cardboard Paper Manufacturing Machinery from China Supplier
- 3 Set / Sets per Month
- Qingdao
- T/T
- Paper Recycling Machine China Supplier 2100mm Brown Paper Production Line
- China Suppling Corrugating Paper Kraft Paper Making Machine Low Price
- Good Price 1880mm Kraft Paper Making Line Papert Making Machine
- 1880mm Cylinder Mould Paper Machine Corrugated Paper Recycling Plant
- 1880mm Brown Paper Production Line Kraft Paper Making Machine
- Higt Capacity Fourdrinier Kraft Paper Corrugated Paper Making Machine
Product Details
Condition: | New | Product Type: | Other, Fluting paper making machine | Processing Type: | Other, paper making machine |
Place of Origin: | Henan, China | Brand Name: | Dingchen machinery | Model Number: | 3200 |
Voltage: | 380V 50HZ | Certification: | Other, iso9001 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wood case/straw rope/plastic foam, carton, in complete conformity to the national standardized export package
Product Description
High Quality 3200mm Three-layer Fourdrinier Type Kraft Paper/Cardboard Paper Manufacturing Machinery from CHina Supplier
Technical parameters of 3200mm Kraft Paper/Craft Paper Machine: 1. Raw material: waste carton
2. Output paper: fluting paper
3 Output paper weight: 90-180g/m2
4 Net paper width: 3200mm
5 Wire width: 3750mm
6. Capacity: 100T/D
7. Working speed: 140-250m/min
8. Designing speed: 300m/min
9. Rail gauge: 4300mm
10. Drive way: A/C inverter speed control, sectional drive.
Raw Materials for Making Kraft Paper/Craft Paper:
The Main Structures of 3200mm Kraft Paper/Craft Paper Machine:
1. Wire Part
Bottom wire table length 20m, top wire table length 10m, frame welded by #45 steel plate, with 2 sets of closed-type stainless steel head box, with double evener rolls.
2. Press Part
4 sets of blind press roll 900mm×3750mm×4300mm, each press section include 2 pieces of blind press roll, roll body coated by rubber, rubber shore hardness 96℃±2, with pneumatic pressure device.
3. Dryer Part and Sizing Part:
30 sets of 500mm×3750mm×4300mm alloy dryer cylinder, with 30pcs of scraper blade. 1 set of sizing machine with cylinder 850mm×3750mm×4300mm.
Dryer cylinders arrayed in the order of 20+sizing machine +10.
4. Winding part
1 set of 3200mm horizontal pneumatic winding machine, winding drum 1100mm ×3750mm×4300mm with cooling water pipes and leading rope slot.
5. Rewinding part
duplex paper machine
1 set of 3200mm frame structure rewinding machine

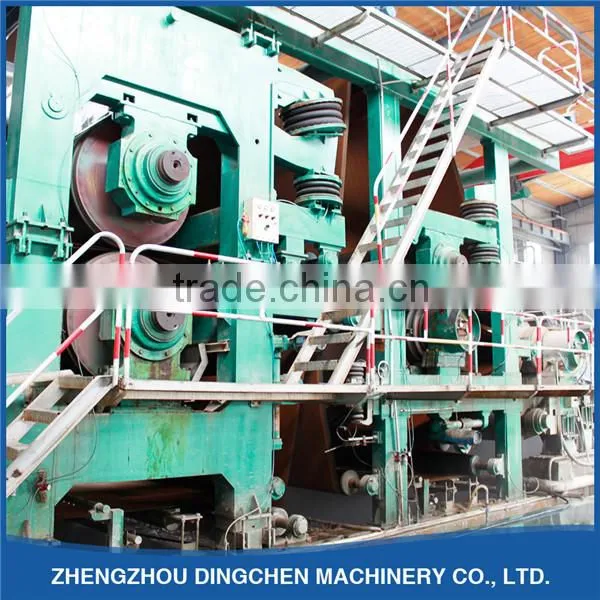

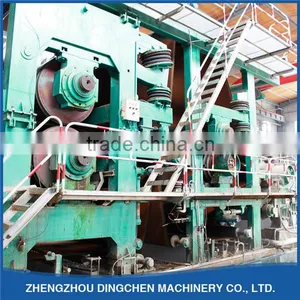

Picture of Fourdriner type Kraft Paper/Craft Paper Machine:
Schedule of Main equipments for Stock Preparation:

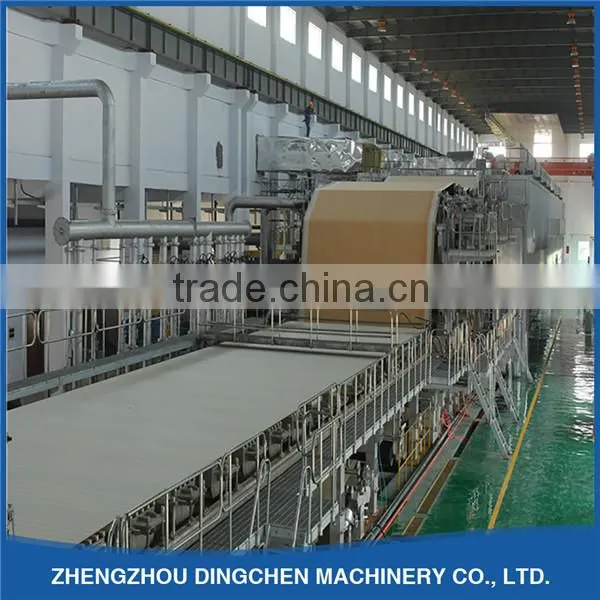

Picture of 3200MM Kraft Paper/Craft Paper Machine:
The Whole Trade Procedure:
1 tell us what you need: the raw material, capacity, what kind of paper you intend to produce, the paper weight;
2 we formulate the technical scheme for you according to your requirements;
3 go on a visit to our factory and negotiat with us;
4 sign the contract;
5 make the down payment;
6 we start to manufacture;
7 make the balance payment;
8 deliver products;
9 we go to your country for the installation and test running and the training of your workers;
10 provide technical consultation.
Company Introduction:
We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
Pre-sales service:
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
5) Offer professional technical consultation services.
6) Propose the most suitable scheme and equipment for our clients.
7) Adopt all-around computer aided design (CAD) to design the whole production line.
8) Provide all-around turn-key projects as follows: production design,equipment manufacture, installation and adjustment, technical service, conforming product.
9) Complete sets machine will be pre-installed and tested to confirm that the machine are in good condition before delivery.
10) In time delivery.
After-sales service:
1) Highly inspecting equipments in every working procedure, quality comes first;
2) Fast & Safe Delivery;
3) Assisting our clients for foundation construction of equipments;
4) Dispatching engineers to install and debug equipments;
5) Training the first-line operators on site;
6) Regularly visit clients to solve production problems;
7) Providing life-long maintenance service;
8) Providing technical exchanging;
9) Arranging technicians to install and test the machine for you. They can also train your workers.
10)One year guarantee time after the machine run well;
11) Supplying you spare parts at a competitive price for a long time.
1.What information do you need,if i need to get a quotation from you? Answer:Output paper type;Capacity(tons per 24hours);Output paper weight(gram per m2);Raw material.
2.How long is the guarantee period for paper making machine? Answer:12 months after formal operational
3.What is the delivery time if we make a order from you?
Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer:
(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%LC at sight.
5.Why your price is higher than other similar supplier?
Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers
based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
6.Can we visit your factory and the running machine has installed in China?
Answer:Welcome to visit our factory.You can check our production ability,processing ability,check our facilities and
running paper production line.What is more,you can discuss with engineers directly,and learn the machines well.
Paper making production lines we can provide
Waste paper pulp machine production line
Corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Testliner paper making production line
Paper plate making production line
Tissue paper making production line
Toilet paper making machine line
Kraft paper making machine line
Boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
If you have any more question pls contact me right now, We appreciate it if you could provide more details about your machine.
We can provide artwork design, turn-key project and logistics services !!!
Skype/Wechat: graceguo15, Mobile/whatsapp:+8615903665291,
Trade Manager: cn1518120184vlzl
dc2015032301 Popular selling 70 T/D, 3200mm width fourdrinier / single wire type kraft paper making machine, raw material: waste paper
