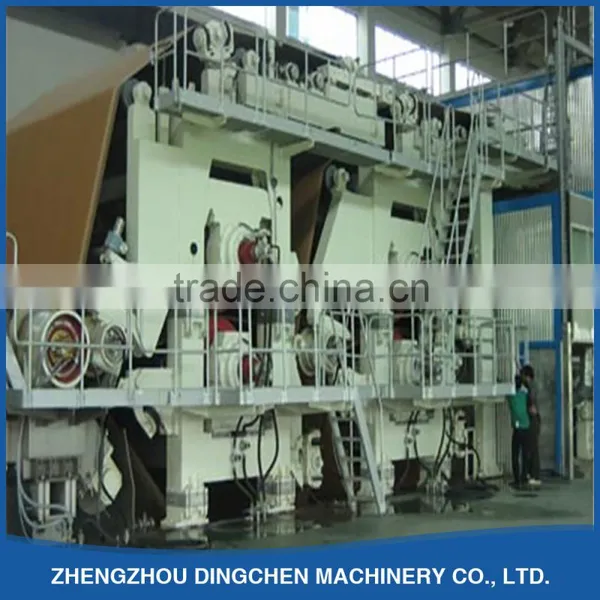

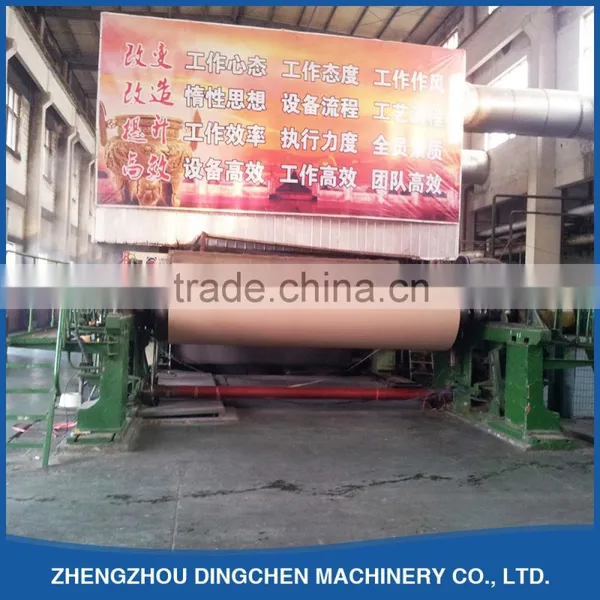

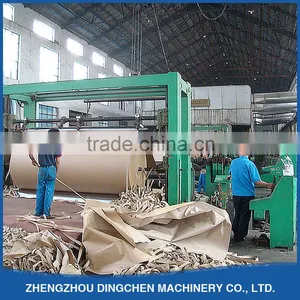

2100mm Fluting Paper Machine Using Waste Paper, Virgin Pulp
I Technical Parameters of 2100mm Model:
Raw materials: Waste paper and virgin pulp
Output paper: Kraft paper/fluting paper/corrugated paper
Weight: 130-300g/m2;
Capacity: 20-25T/D
Net paper width: 2100mm
Wire width: 2450mm
Rail gauge: 2900mm
Drive way: speed adjustment in AC frequency &processing transmission
II Main Parts of 2100mm Kraft Wrapping Paper Machine
1.Cylinder part: 3 stainless steel cylinder molds, 4 couch rolls.
2.Press part: 2 rubber rolls , 2 natural marble rolls , pneumatic loaded device.
3.Dryer part: 6 alloy dryer cans, equipped with dry mesh device.
4.Calendar part: 1 three-roll calender.
III Schedule of Model 2100mm Kraft Wrapping Paper Machine
No |
Item |
Qty (set) |
1 |
2100mm multi-dryer can multi-cylinder mould paper machine |
1 |
First main Press part |
1 |
|
Secondary main Press part |
1 |
|
Cylinder group |
1 |
|
2 |
Exhaust hood of dryer group |
1 |
3 |
Propeller fan |
1 |
4 |
roots pump |
2 |
5 |
Suction box |
5 |
6 |
2100mm calender machine |
1 |
7 |
2100mm reeling machine |
1 |
8 |
AC frequency controller |
1 |
9 |
Working table |
1 |
10 |
Air compressor |
1 |
Company Profile
We, Zhengzhou Dingchen Machinery Co.,Ltd is a professional manufacturer of paper making machine with more than 30 years experiences,and the products we manafacture range from toilet paper making machine, kraft paper making machine, corrugated paper making machine, printing paper making machine, testliner paper making machine and paper coating machine. And our products have been exported to many foreign countries and gained widespread recognition.
Pictures of Package:
Our Overseas Customers:
welcome to visit our factory to have a better understanding of our company and the products.
Contact person: Grace Guo Skype: graceguo15
Mobile: 0086-15903665291
