China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery With High Quality

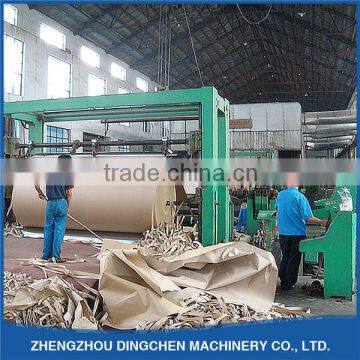

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery With High Quality photo-1
China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery With High Quality photo-2
China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery With High Quality photo-3
China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery With High Quality photo-4
US$ 230,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, kraft paper
Processing Type:
Other, paper making machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, kraft paper
Processing Type Other, paper making machine
Place of Origin Henan, China
Brand Name Dingchen
Model Number 1760mm
Voltage 380V 50HZ
Certification Other, ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality



Technical Parameters of 1760mm:

1.raw material:waste paper;



2.Output paper : kraft paper



3.Output paper weight: 110-250g/m2;



paper width: 1800mm;



5.Capacity: 10-15T/D;



6.Width of cylinder mold: 2200 mm;



7. Working speed:20-55m/min



8.Design speed:80m/min



9.Rail gauge: 2600 mm;



10.Drive way: AC inverter speed, section drive



Main Structures of 1760mm:

1.Cylinder section: 1500mm×2200mm×2600mm stainless steel cylinder mould: 3 sets, 500mm×2200mm×2600mm couch roll: 4 sets, includeing reverse roll: 1set, rubber shore hardness 38℃±2.



2.Press section: 600mm×2200mm×2600mm nature marble roll: 2 sets,550mm×2200mm×2600mm rubber roll: 2 sets, rubber shore hardness 92℃±2 , equipped with pneumatic pressure device.



3.Dryer section:1500mm×2200mm×2600mm alloy dryer can 10sets,with dryer screen device.

with 10 blades,with semi-closed exhaust hood 1 group



ding section: 1760mm winding machine 1 set



5.Rewinding section:1760mm rewinding machine 1 set

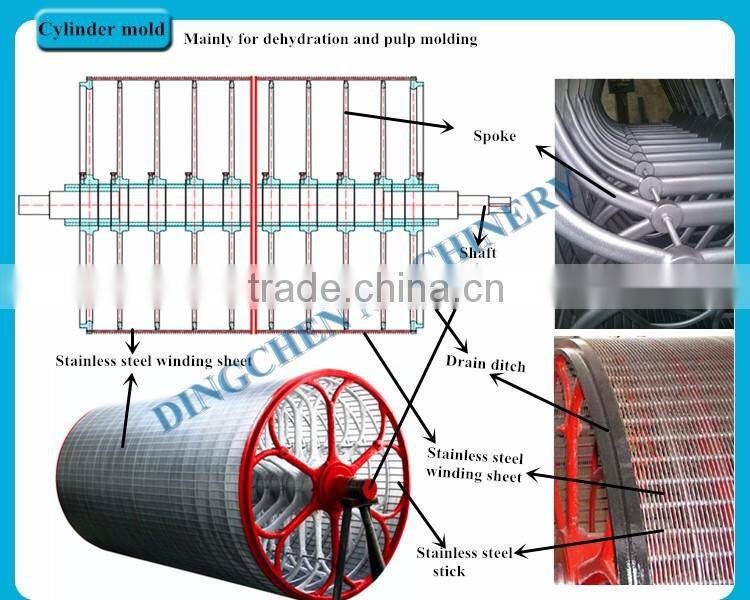

Cylinder Mold Section:



China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality

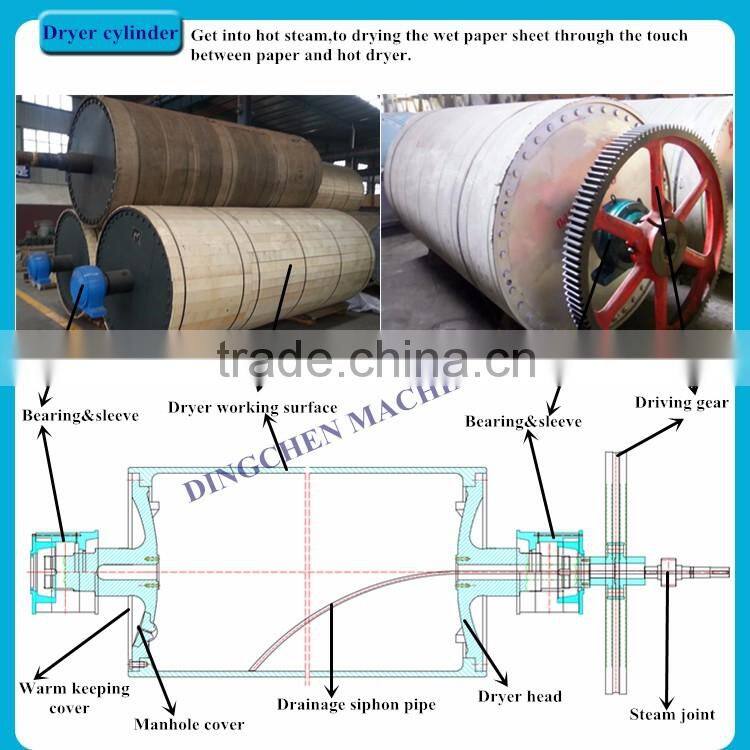

Dryer Section:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality

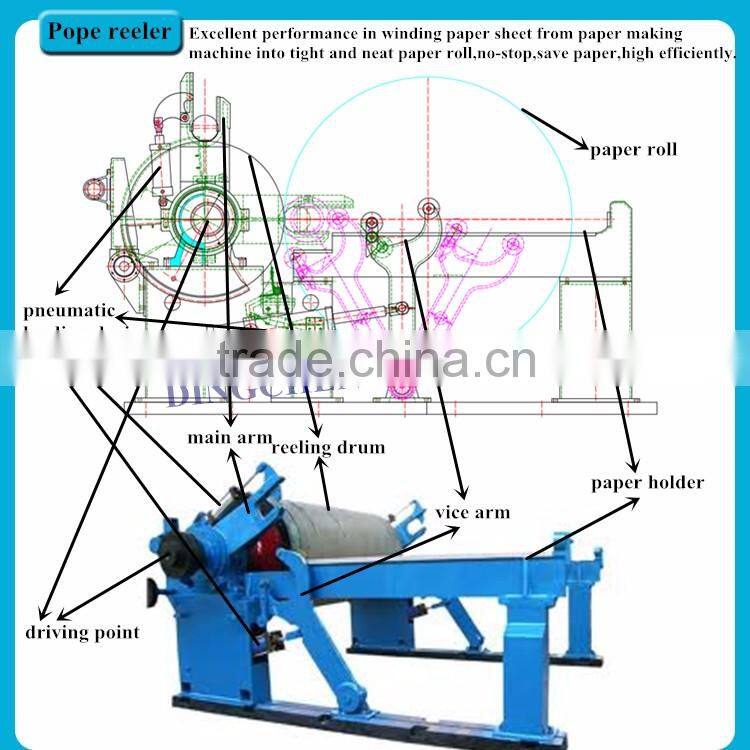

Winding Section:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality

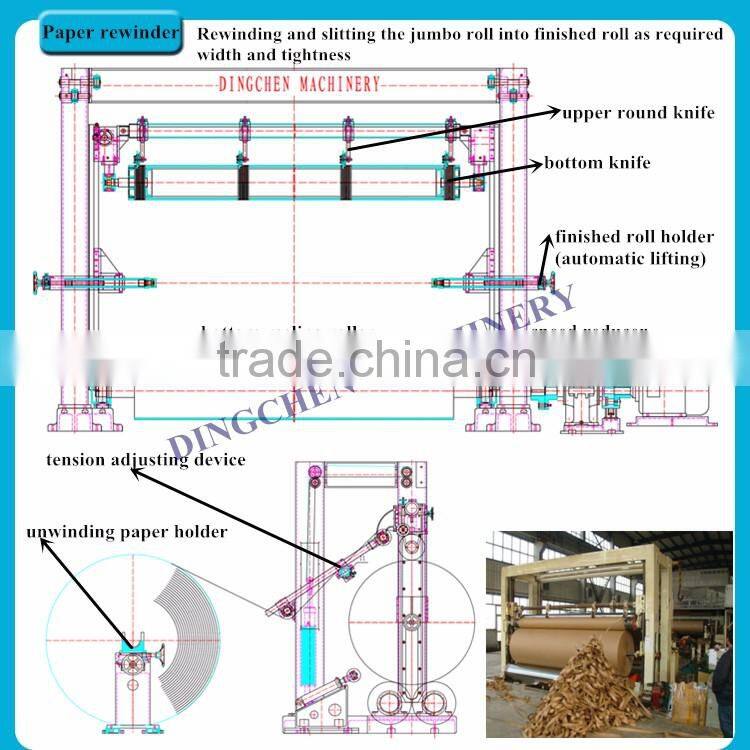

Rewinding Machine:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality





Our Company:

We are the professional manufacturer for  paper machinery. Our products rang from paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on.



Our technicians are skilled and professional to give you the best services and guidance, our ISO management system could ensure all of our products could meet the quality standard.



Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan and so on, and  have won customers’ consistent recognitions.

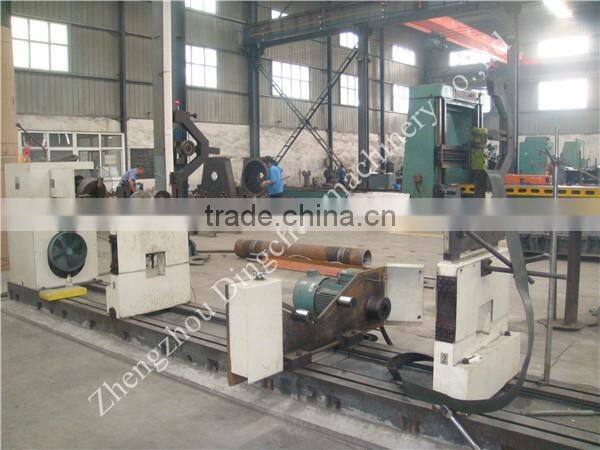

Pictures of Workshop:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High QualityChina Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality

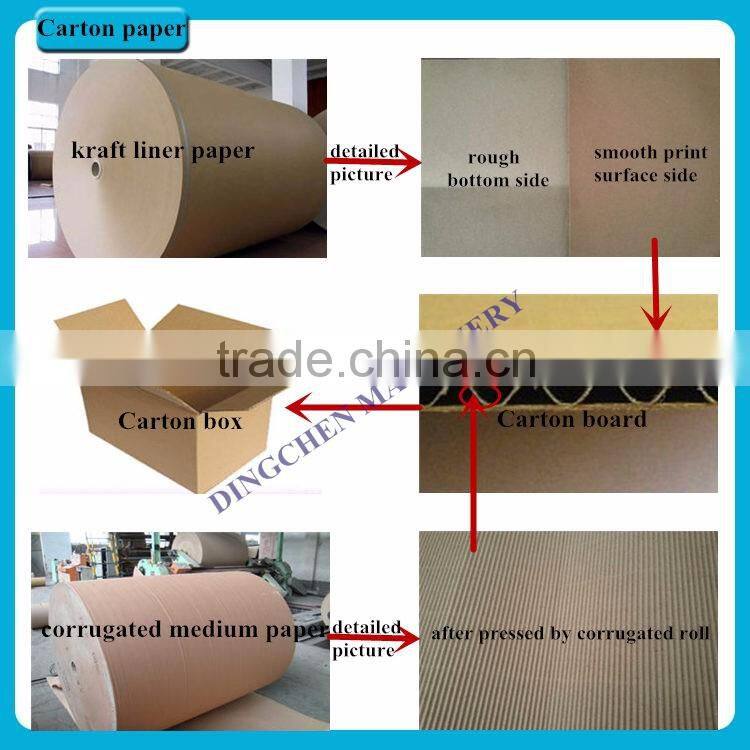

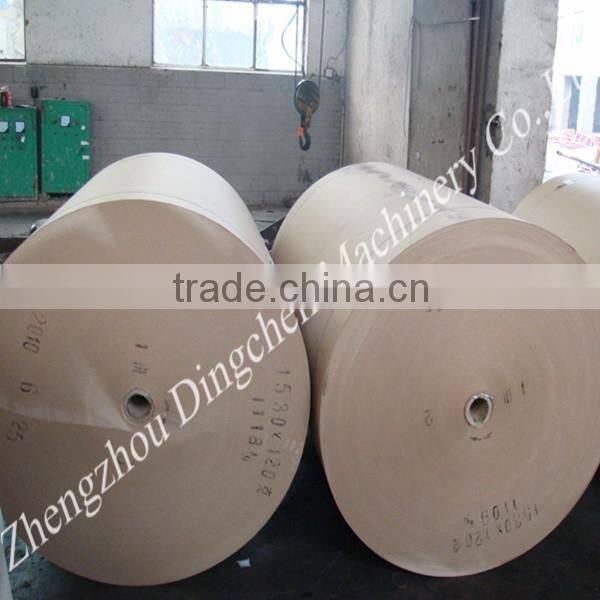

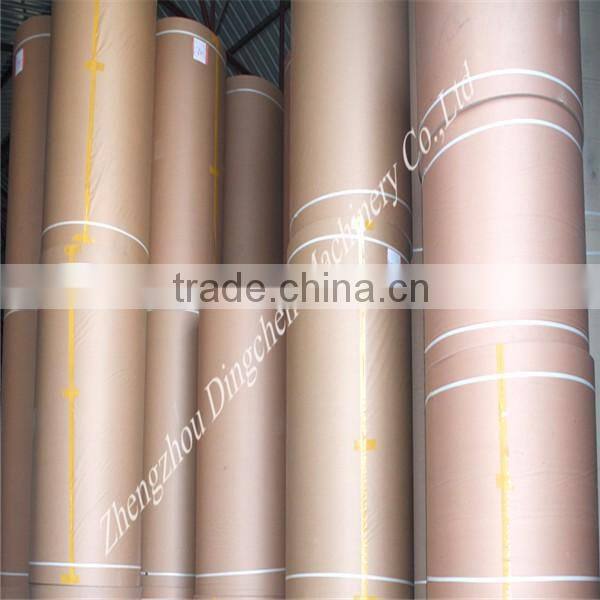

Finished Products:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality



China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High QualityChina Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality



Pictures of Our Clients:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality



Welcome to visit and make business negotiation:

China Hot Sale 1760mm Model Kraft Paper/Fluting Paper/Corrugated Paper Machinery with High Quality
