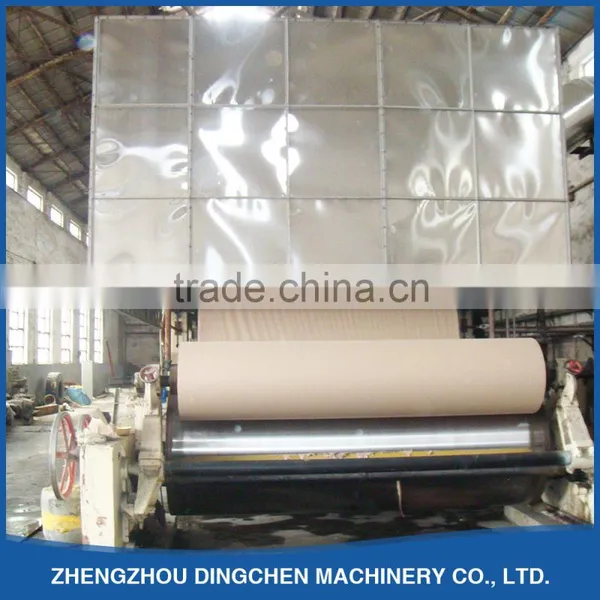

Double-dryer and double-cylinder waste paper recycling machine
Ⅰ.Technical parameter:
1.raw material:recycled paper(newspaper,used carton box);

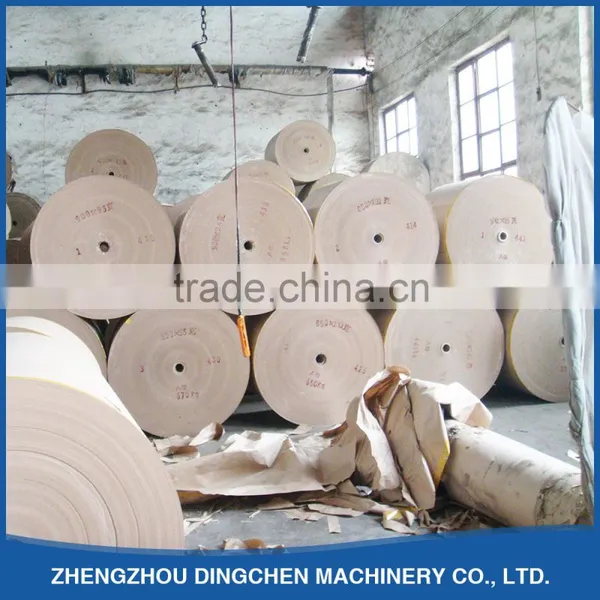

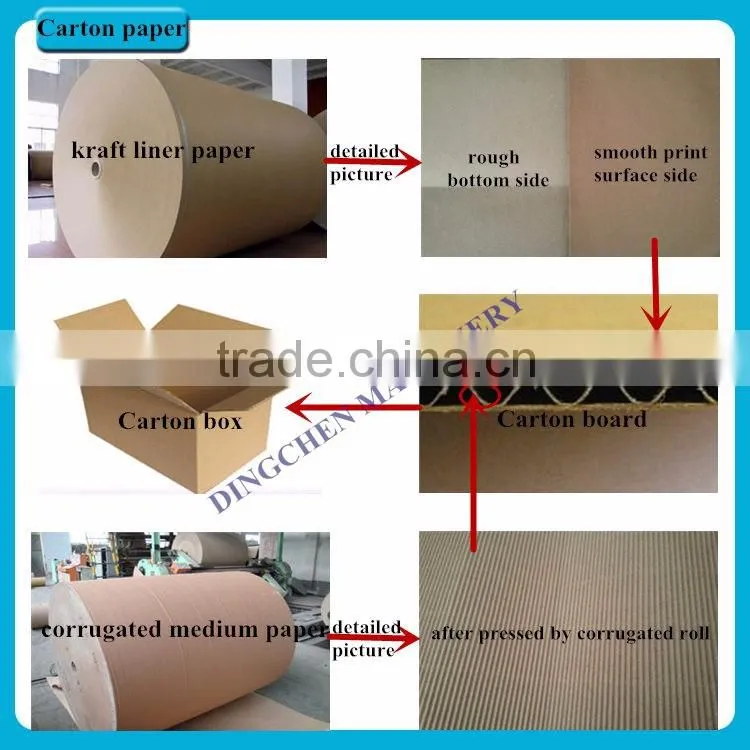

2.Output paper style: corrugating paper;kraft paper;packing paper
3.Output paper weight: 90-180g/m2;
paper width: 1600mm;
5.Capacity: 10T/D;
6.Drive way: AC inverter speed, section drive;

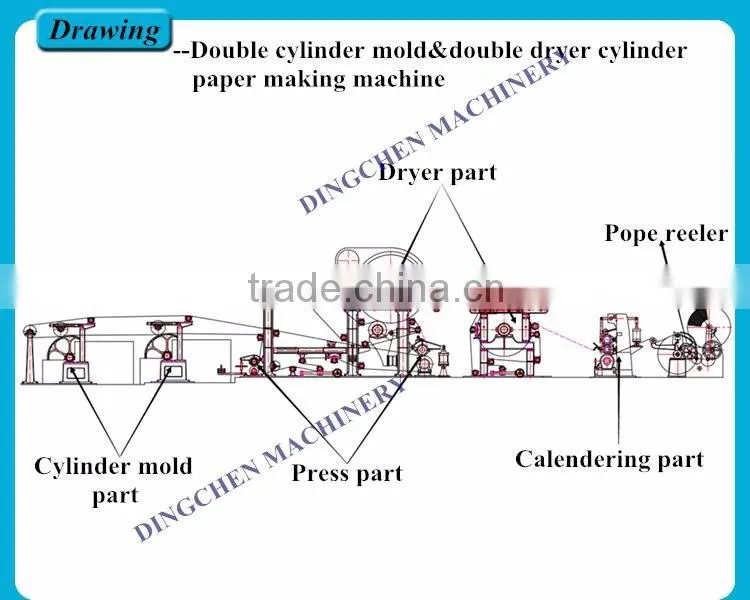

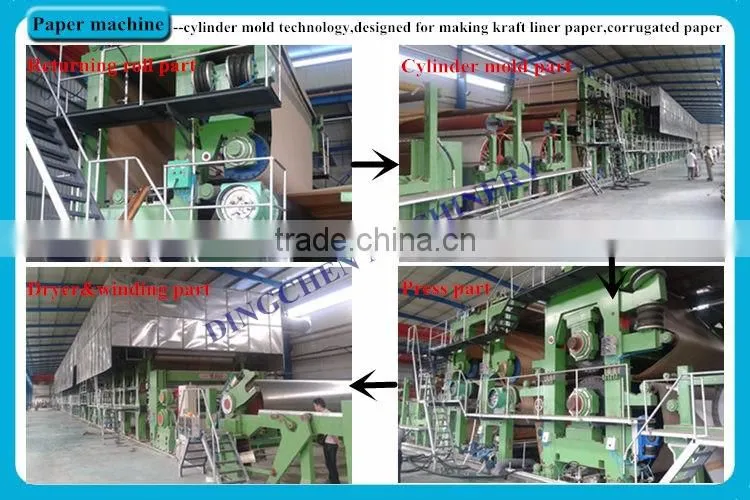

Ⅱ.Structure and characteristic of main part:

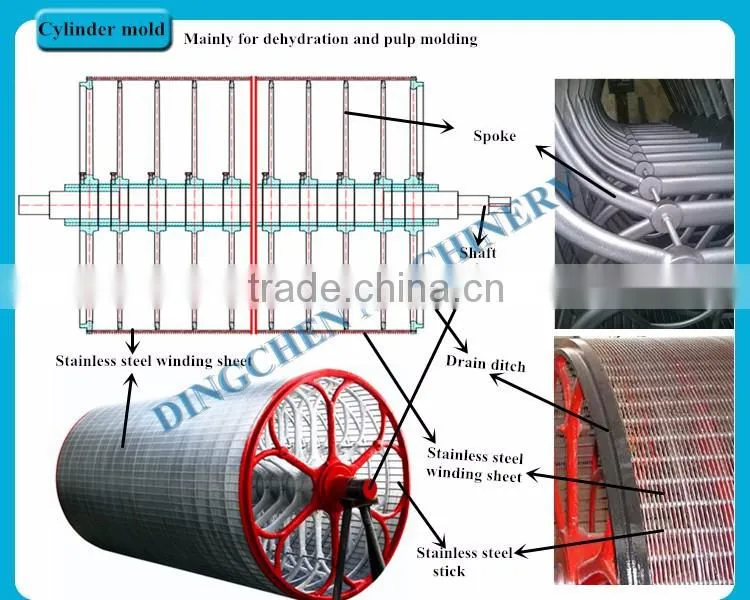

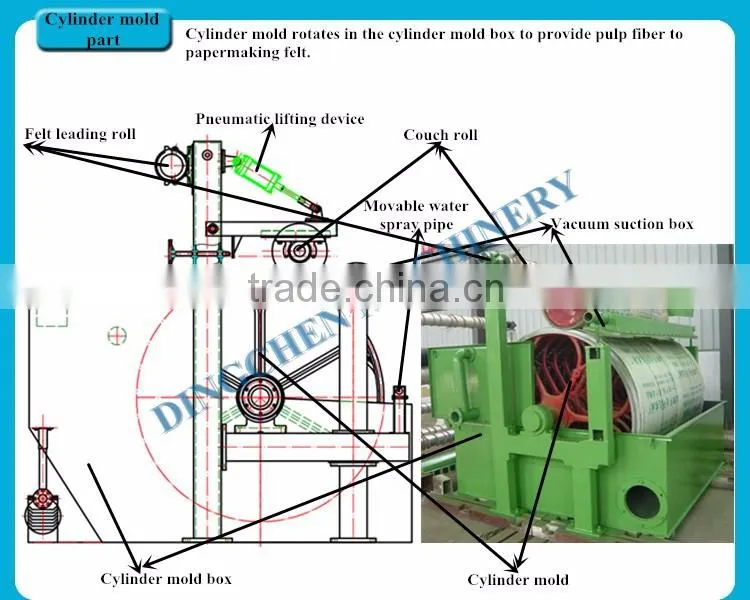

1.Cylinder section: stainless steel cylinder mould 2 sets,couch roll 2 set.

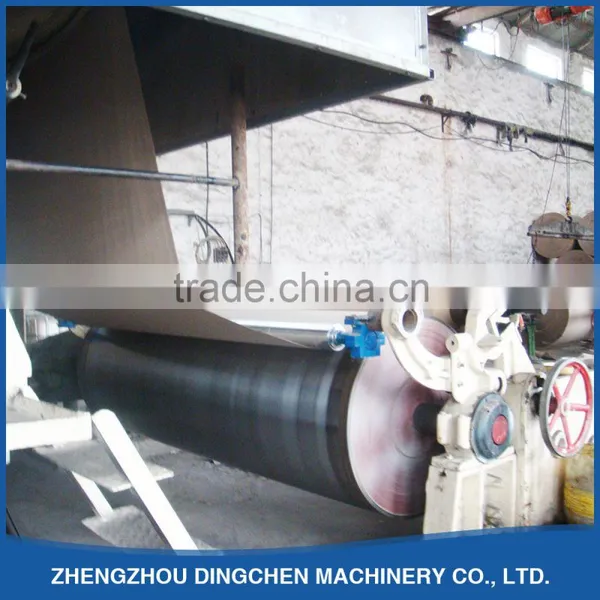

2.Press section:marble roll 1 set, rubber roll 1 set.

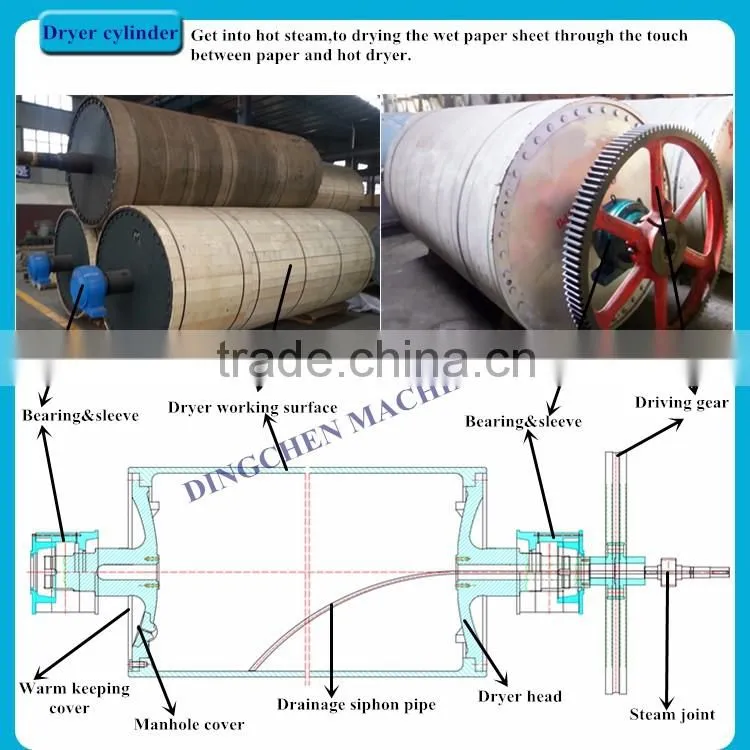

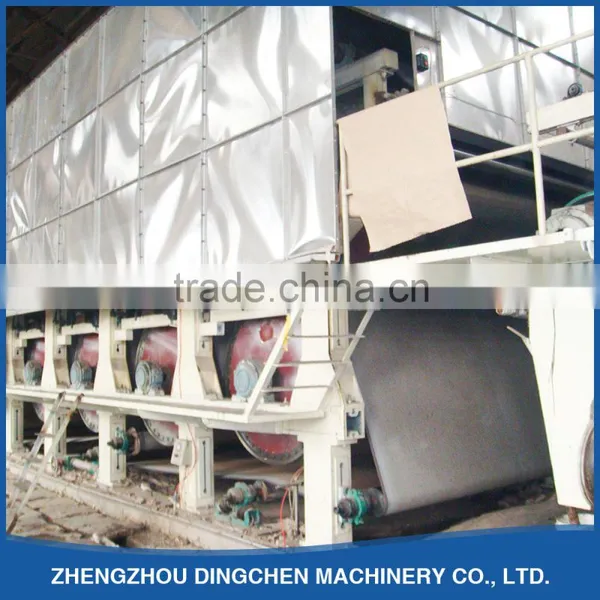

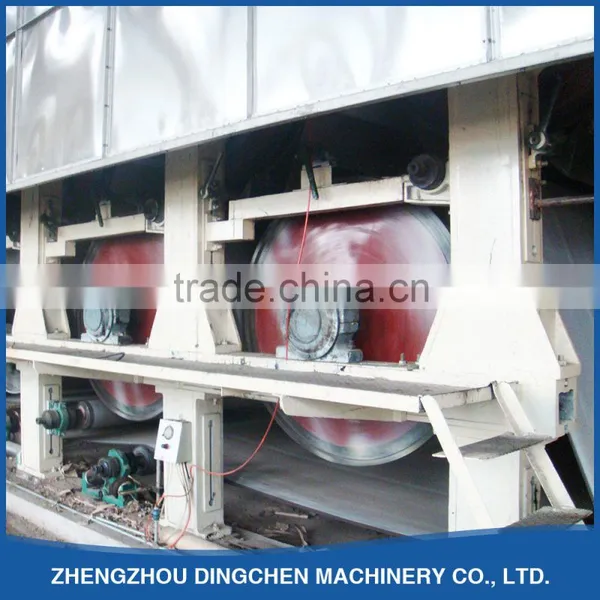

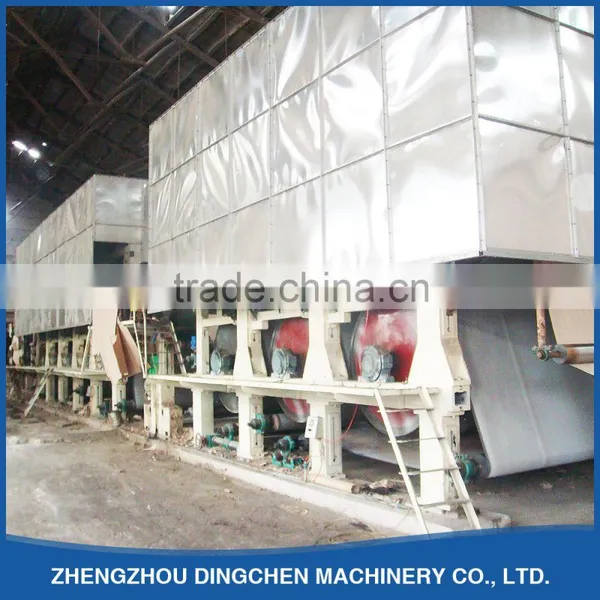

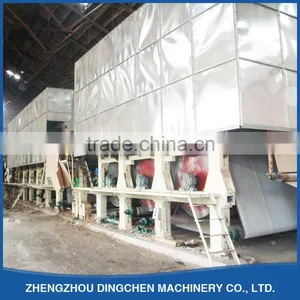

3.Dryer section:alloy dryer can 3 set.
4.Drive way :AC inverter speed, section drive.
5. Pneumatic compression device.
Ⅲ.All equipments of paper making machine:
NO. |
Item |
Qty(set) |
1 |
1575mm Kraft paper machine |
1 |
2 |
exhaust hood of dryer can(double layer) |
1 |
3 |
axial-flow ventilator |
1 |
4 |
roots vacuum pump |
1 |
5 |
1575mm winding machine |
1 |
6 |
1575mm calender |
1 |
7 |
1575mm rewinding machine |
1 |
8 |

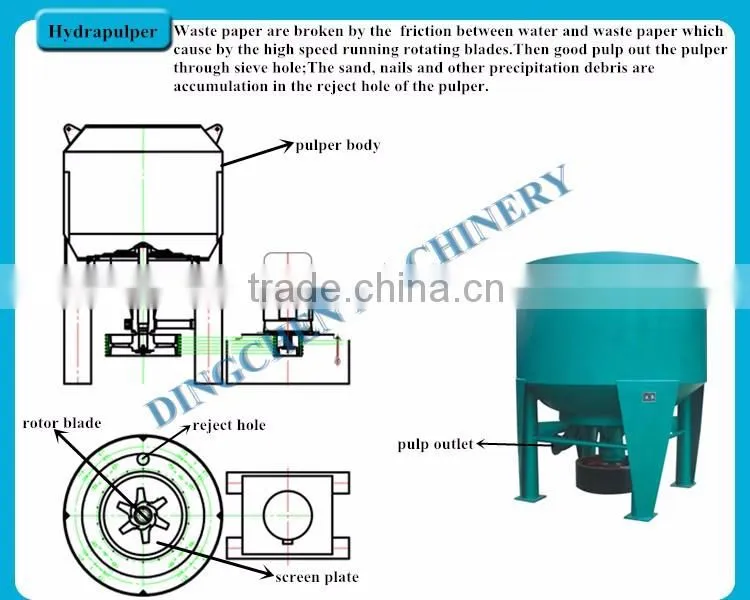

high consistency hydrapulper |
1 |
9 |

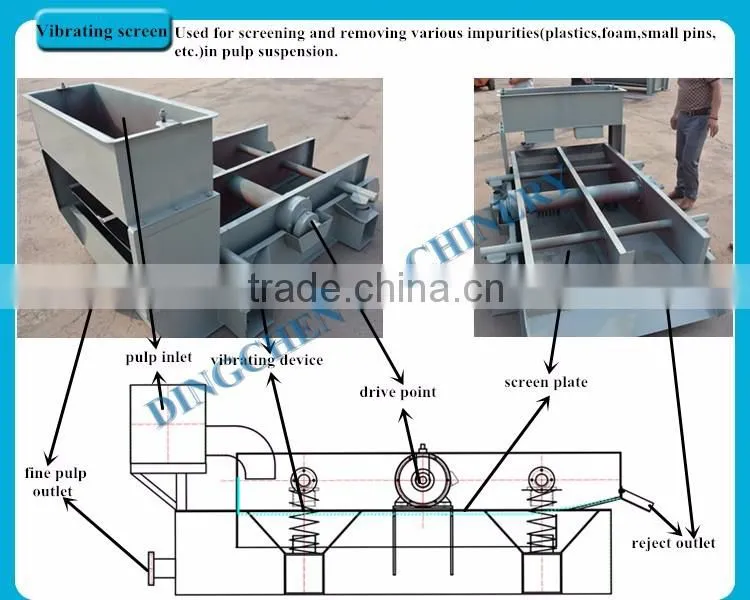

high frequency vibrating screen |
1 |
10 |
Decker thickener |
1 |
11 |
pressure screen |
1 |
12 |

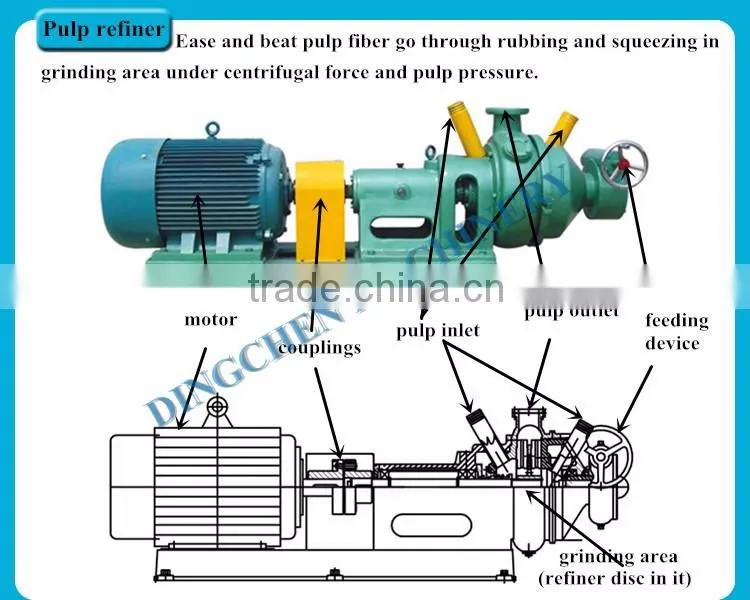

double disc pulp refiner |
2 |
13 |
low consistency sand remover |
1 |
14 |

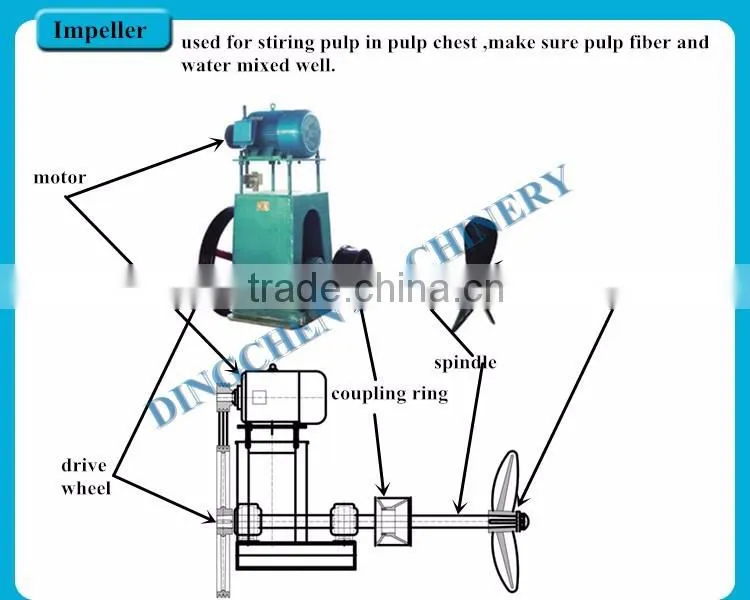

impeller |
4 |
15 |

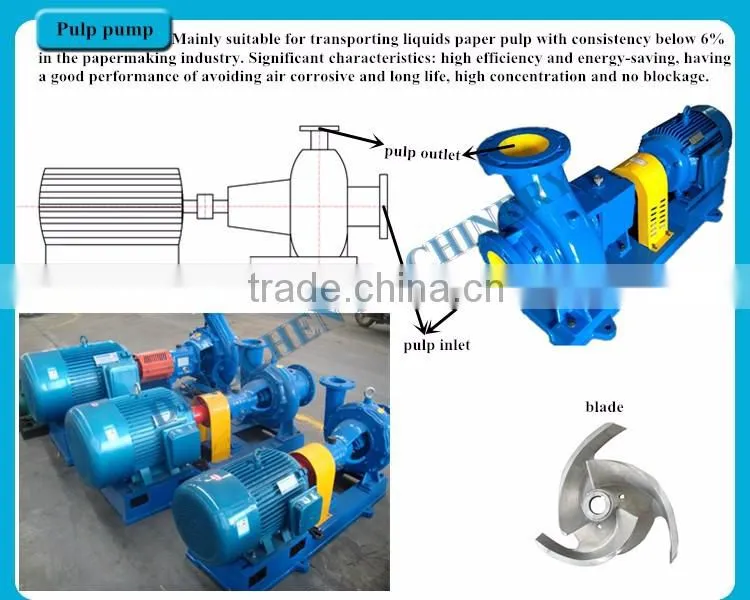

pulp pump |
4 |
16 |
pulp pump |
4 |
17 |
2ton boiler(burn coal/gas/oil) |
1 |
- Technical Consultation
- Assess Feasibility On-site
- Detailed Design of Machine and Factory or Workshop
- High Durability Equipment and Low Maintenance Cost
- Continuous Process (Less Labour Required)
- Good in-sale service and after-sale service
- Supplying Spare Part for Long Time
- Installing and Testing the Whole Production Line
- Training Engineers and Workers(operate and maintain machine)
- Power Consumption Low waste paper recycling machine
