High Performance 1575mm Corrugated Paper Machine with Capacity of 5 Tons Per Day
Specifications:
1).Raw material: recycle paper
2).Output paper: kraft paper ,corrugated paper
3).Output paper weight: 80-150g/m2
4).Net paper width: 1600mm
5).Capacity: 10T/D
6).Wire width: 1950mm
7).Working speed: 30-60 m/min
8).Design speed: 150 m/min
9).Rail gauge: 2400mm
10).Drive way: Alternating current frequency conversion adjustable speed, section drive
11).Layout type: left or right hand machine.
Raw Materias for Paper Making:
Structure of Main Equipments:
Cylinder part: stainless steel cylinder mold: 2 sets, couch roll: 2 sets, which is coated by rubber with shore hardness of 38±2;return roll: 1 set, which is coated by rubber with shore hardness of 86±2.
Press part: natural marble roll: 1 set, rubber roll: 1 set with rubber shore hardness of 92±2, pneumatic pressure device.
Dryer part: alloy dryer can: 2 sets, touch roll: 1 set, which is coated by rubber with shore hardness of 95±2; scraper blade :2 sets, semi-closed dryer hood :1 group, itis also equipped with dry felt device
Calendering part:3 rolls calender: 1 set.

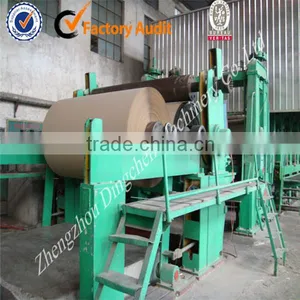

Winding part: 1575mm type horizontal pneumatic winding machine: 1 set.

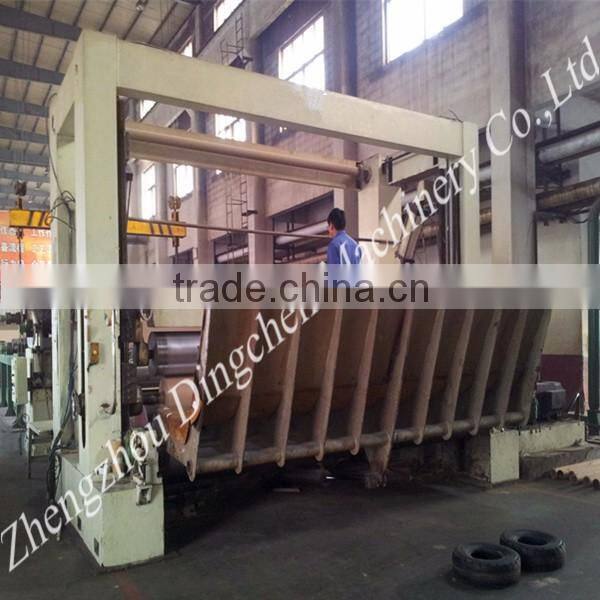

Rewinding part: it is equipped with 1575mm frame type upper feeding rewinding machine: 1 set.

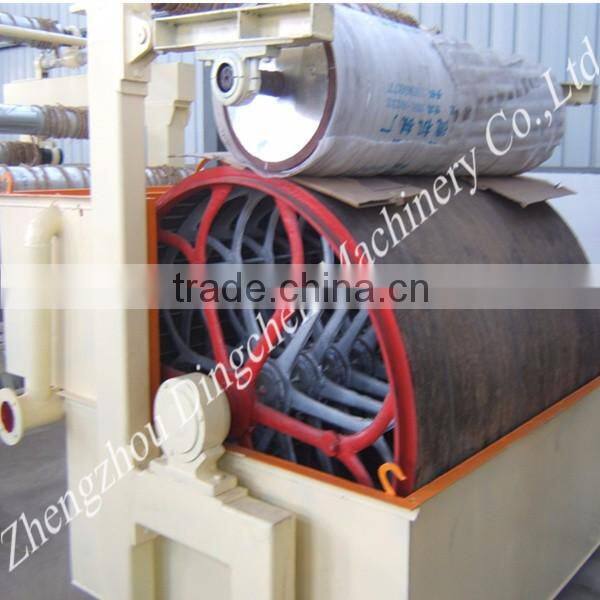

Picture of double cyclinder mold:

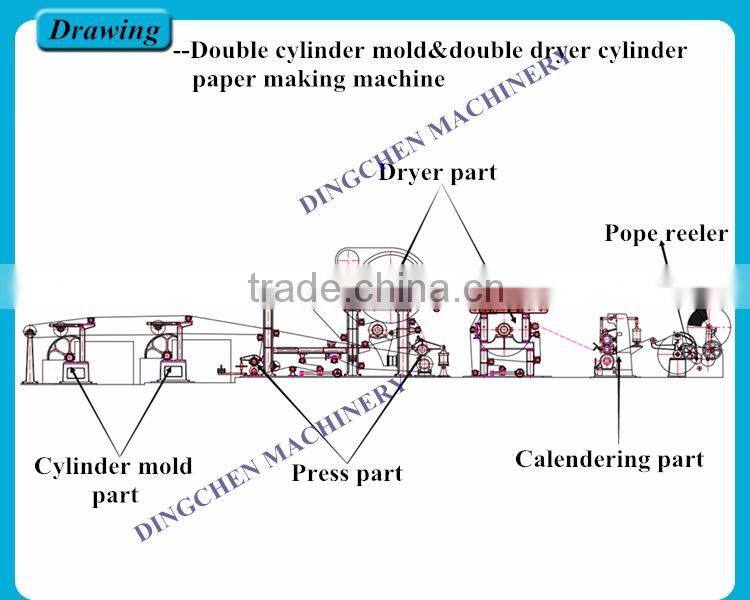

Drawing:
No. |
Item & Description |
1 |
1575mm multi-cylinder and multi-dryer kraft paper machine |
2 |
Exhaust hood of dryer cylinder |
3 |
700 Axial-flow ventilator |
4 |
15 roots vacuum pump |
5 |
Suction box |
6 |
3 rolls calender |
7 |
Frequency conversion controlling cabinet |
8 |
1575mm type horizontal pneumatic winding machine |
9 |
1575mm type frame type upper feeding rewinding machine |
10 |
2T boiler (burning gas) |
11 |
3m3 hydra-pulper |
12 |
1.8m2Vibrating screen |
13 |
380Double disc refiner |
14 |
700 propeller |
15 |
1.2m2Pressure screen |
16 |
606 type Sand remover |
17 |
Pulp pump |
18 |
Electric operation cabinet |
We are the professional Chinese manufacturer in the field of paper making machine, our products covers pulp making equipment, toilet paper machine, kraft paper machine, corrugated paper machine, A4 paper machine, paper coating paper and paper deep processing machine the related spare parts.
We are able to design and work out the production line that meet customers' needs.
So, welcome to visit our factory to have a better understanding of our company and the products.
Contact person: Grace Guo Skype: graceguo15
Mobile: 0086-15903665291
