Automatic 1880mm Toilet Tissue Paper Embossing and Perforating Rewinder
It is designed to make the jumbo roll paper to small diameter paper roll with perforating and embossing
| Machine Model | 1880mm |
| Raw material Width | 2000mm |
| Operation | Easy |
| Finished Roll Diameter | 70~140mm(adjustable) |
| Finished Roll Core Diameter | According to customers' need |
| Raw Material Diameter | ≤Φ 1100 mm (Other sizes are available ) |
| Raw material loading | Manual |
| Converting of raw material | 1-3plys |
| Raw Material Core Diameter | 76.5 mm(customer can assign ) |
| Control | PLC |
| Alarm system and Remote control (with Chinese Patent) | yes |
| Emergency stop system | Yes |
| Perforating Pitch | electricity |
| Gap of Perforating Pitch | Adjustable |
| Speed | 140-180 m/min |
| Parameter Setting | Adjustable speed |
| Embossing Roller | steel roll |
| Unwinding Paper Stand | 1-3plys |
| Power | 5.5kw |
|
Dimension (L×W×H) |
6000×2600×1600mm |
| Weight | About 2500 kg |

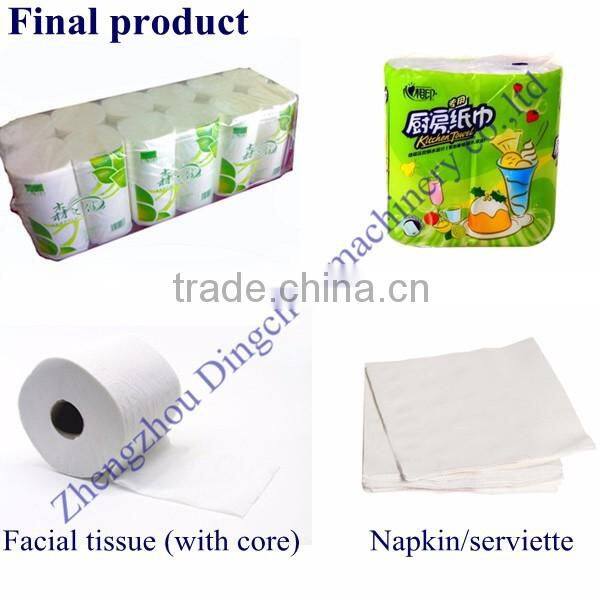

The Final Product:
Related Toilet Tissue PaperJumbo Roll Making Production Line for Model 1880mm:
1880mm 5TPD Toilet Paper Roll Making Machine to make Facial Paper/Napkin
Tissue Paper/Kitchen Paper
Technical Parameters:
1.Raw materials: waste paper,virgin pulp
2.Output paper: high and middle class napkin paper,toilet paper , tissue paper
3.Output paper weight: 13-30g/m2
4.Capacity: 5 tons per day
5.Net paper width: 2000mm
6.Wire width: 2300mm
7.Working speed: 60-120m/min
8.Designing speed: 180m/min
9.Rail gauge: 2800mm
10.Drive way: Alternating current frequency converter speed control, sectional drive.
11.Layout type:left or right hand machine.
Main Structure for the Napkin Paper Making Machine:
1 .Cylinder mold part: one set of stainless steel cylinder molde(1500mm×2300mm×2800mm), one set of couch roll (450mm×2300mm×2800mm ) which is coated by rubber, one set of stainless steel cylinder vat.
2. Dryer part: one set of alloy dryer cylinder(2500mm×2300mm×2800mm) , one set of touch roll(550mm×2300mm×2800mm) which is coated by rubber, pneumatic pressure device, and the dryer cylinder is also equipped with 2 sets of scraper knife and one set of double-layer dryer hood.
3. Winding part: one set of winding cylinder (900mm×2300mm×2800mm) ,wind paper on the sweat cylinder.
4. Paper converting section: one set of 1880mm rewinding machine with perforating and embossing 1set, 1 set of paper cutter and plastic bag sealing machine respectively.
Paper Making Machinery:
We are the professional Chinese manufacturer in the field of paper making machine, our products covers pulp making equipment, toilet paper machine, kraft paper machine, corrugated paper machine, A4 paper machine, paper coating paper and the related spare parts.
We are able to design and work out the production line that meet customers' needs.
So, welcome to visit our factory and I'm loking forward to establish a long-term cooperation with you!
Contact person: Grace Guo Skype: graceguo15
Mobile: 0086-15903665291
