Low Price Paper Core Making Machine Paper Tube Production Line For Sale

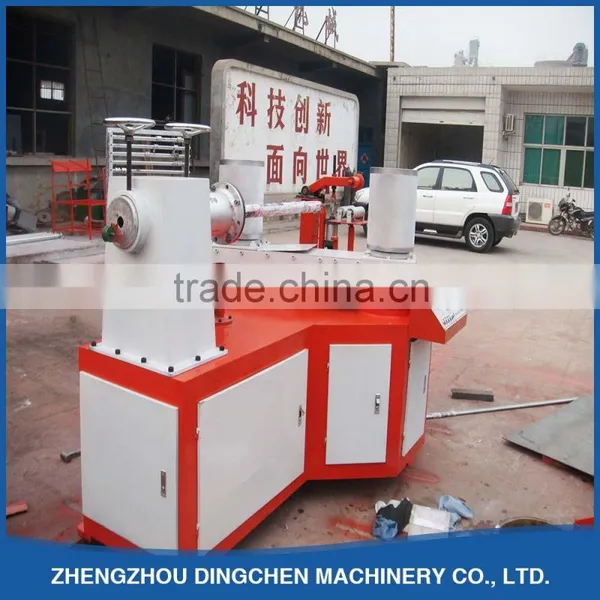

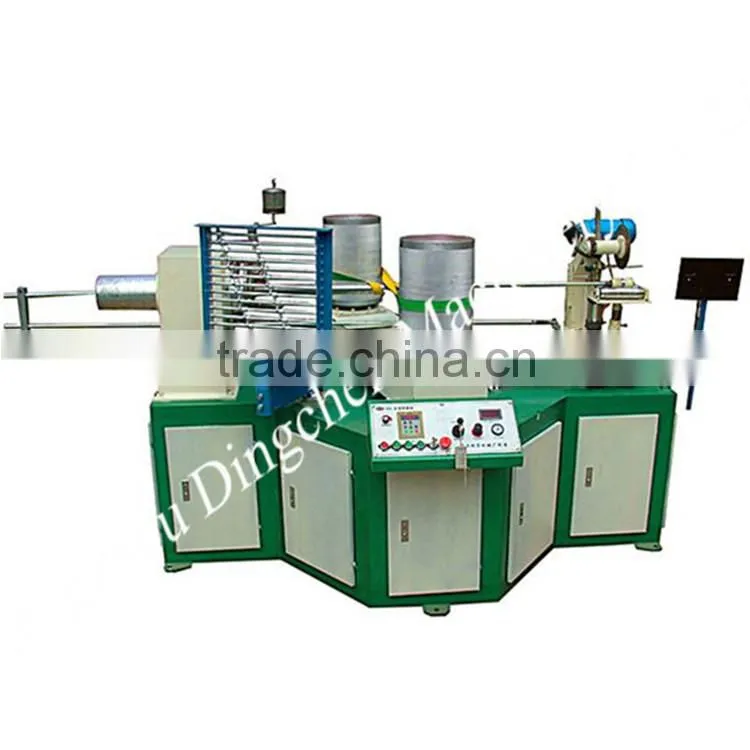

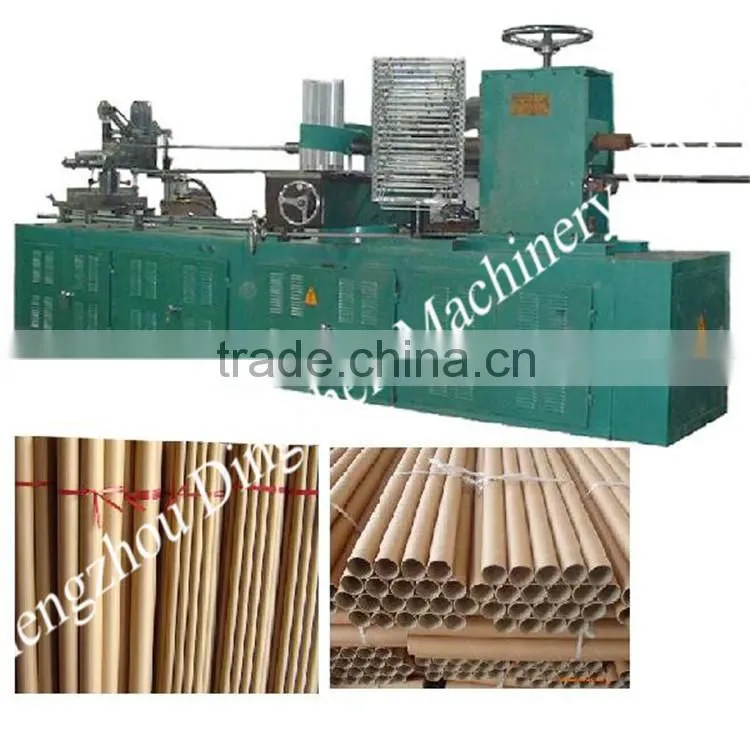

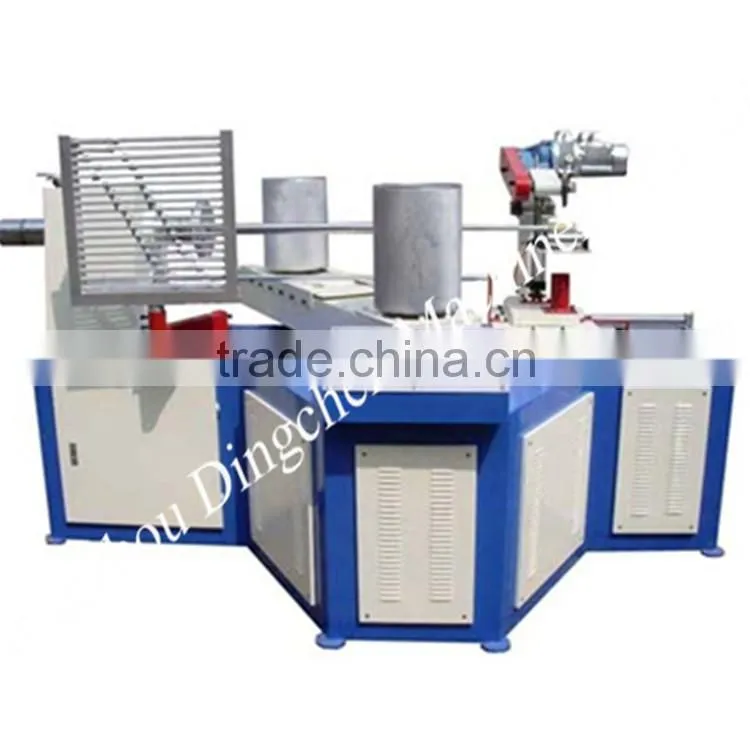

Automatic paper core making machine
1.dimension of roll core : Φ28-75mm(2-7ply) length:1200-2000mm
2.dimension of raw paper :300-400 g/m2 width :50-90mm
3.power :4.5kw (380V.50HZ)
4.dimension of main machine :3000*1800*1600mm
5.dimension of glue coating machine :1800×500×1800mm
6.dimension of paper feeder :4500×1300×800mm
7.weight of all machine :2.5ton
Model |
CZ-75 |
||||
Technical parameter |
Wheel hub driving |
4 wheels |
|||
Number of roll paper |
3-16 plies |
Cutting blade motor |
0.4 kw Servo & Stepping motors |
||
Max-diameter |
200mm |
bearing |
Wanxiang |
||
Min-diameter |
20mm |
Control system |
|||
Max-thickness |
10mm |
Controller |
PLC Delta |
||
Min-thickness |
1mm |
Program edition |
JS-E 2.0 |
||
|
Rolling core matrix fixed way |
fixation |
Man-machine interface |
Wenview |
||
Rewinding noses |
Four noses double belt |
Inverter |
YASKAWA 7.5KW |
||
Cutting way |
Single bladecutting |
Execute equipment |
Zhengtai |
||
Gluing way |
Double sides |
Signal component |
Omron |
||
Fixed length way |
Infrared/apron/ Numbering device |
Angle adjusting machine |
have |
||
opertor |
1-4 |
Pneumatical part |
Airtac |
||
Productive speed |
3-28m/min |
synchronized control |
Servo, |
||
|
Speed of adjust and control |
Inverter |
Synchronized follow cut-system |
Servo follow system |
||
Power input |
3x380V |
Outfit assemble |
|||
Size (mm) |
Remote control |
have |
|||
|
Mainframe size: L*W*H |
4150mm x 1850mm x 2050mm |
Auto falling tube shelf |
have |
||
Area space:L*W |
18000*6000 |
Angle of belt |
auto |
||
Wheel hub diameter |
215mm |
Belt adjust |
manual |
||
Wheel hub width |
200/350 |
Mainfram swing angle |
have |
||
Min-tread |
750 |
Stop when paper without |
have |
||
Max-tread |
950 |
Auto giving glue |
Screw pump 1.5 kw |
||
Total weight |
About 4500kg |
Paper-belt giving lubricating oil |
Auto |
||
( 2 head ) Model CT-80B
Winding Paper Ply |
3-16 ply |
Need worker |
1-2worker |
Winding Pole fixed ways |
Chucking + Flange |
Main frame speed ratio |
Turbine speed reducer 1:30 |
Winding pole diameter |
15-100 mm |
Winding Tube speed |
1-12m/min |
Winding Head |
2 head single belt |
Cutting ways |
Single blade/ saw blade |
Main power |
7.5 kw |
Mainframe size |
1800x1800x2200 mm |
Assist power |
1.1 kw |
Length fix ways |
Double infrared + positioning plate |
Gluing ways |
Single / Double side gluing |
Speed control |
Frequency + PLC |
Power |
3 phase |
Paper tube thickness |
1.5-8mm |
( 3 head ) Model CT-250BA
Winding Paper Ply |
3-23 ply |
Need worker |
1-2 worker |
Winding Pole fixed ways |
Chucking + Flange |
Main frame speed ratio |
Turbine speed reducer 1:30 |
Winding pole diameter |
30-200 mm |
Winding Tube speed |
1-12 m/min |
Winding Head |
3 head |
Cutting ways |
Single blade/ saw blade |
Main power |
11kw 9kw |
Mainframe size |
3200x2000x1800 mm |
Assist power |
0.55kw |
Length fix ways |
Double infrared + positioning plate |
Gluing ways |
Single / Double side gluing |
Speed control |
Frequency + PLC |
Power |
4 phase |
Paper tube thickness |
1.5-15 mm |
( 4 head ) Model CT-500B
Winding Paper Ply |
3-40 ply |
Need worker |
3-5 worker |
Winding Pole fixed ways |
Chucking + Flange |
Main frame speed ratio |
Turbine speed reducer 1:30 |
Winding pole diameter |
70-600 mm |
Winding Tube speed |
1-8 meters/ min |
Winding Head |
4 head double belt trapezoid setting |
Cutting ways |
Single blade/ saw blade |
Main power |
18 kw |
Mainframe size |
4100x1800x1600 mm |
Assist power |
3 kw |
Length fix ways |
Double infrared + positioning plate |
Gluing ways |
Single / Double side gluing |
Speed control |
Frequency + PLC |
Power Source |
Four Phase |
Paper tube thickness |
1.5-25mm |
Above model are just for your reference
if you have your own demands,pls tell us,so we can show you the most suit model
Model CT-1500B
Cut tube inside diameter |
50-125 mm |
Cut tube length |
50-1500 mm |
Cut tube thickness |
3-10 mm |
Model CT-1260B
Cut length |
500-1260mm |
Need worker 1 worker |
|
Cut tube diameter |
16-50mm |
Cut speed |
600-900 tubes/hour |
Main power |
1.1kw x 2 |
Main size |
2700x1100x1450 mm |
Cut blades quantity |
2 |
Cut thickness |
1.5-10mm |
Voltage |
380v |
Speed control |
PLC + words |
Model CT-800A paper tube cutter
Cut tube inside diameter |
15-100mm |
Cut tube length |
40-800mm |
Cut tube thickness |
0.5-10mm |
Cut tube speed |
10-20 tube/min |

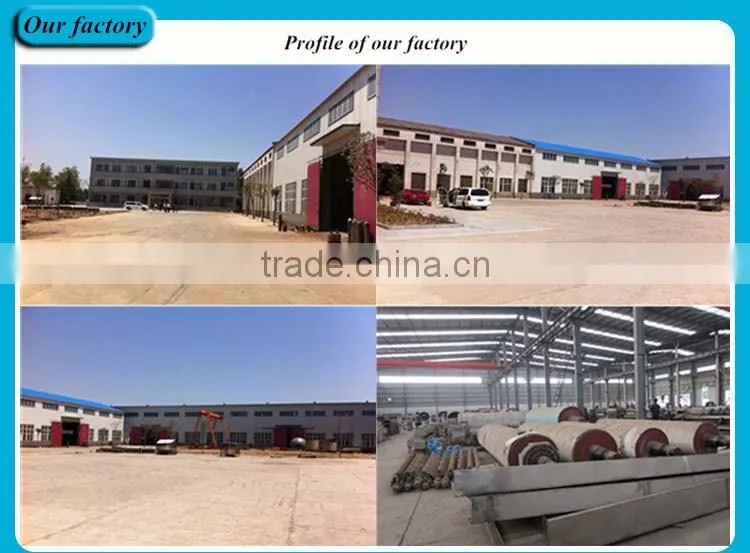

♣ABOUT FACTORY
We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With many years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
