Specifications

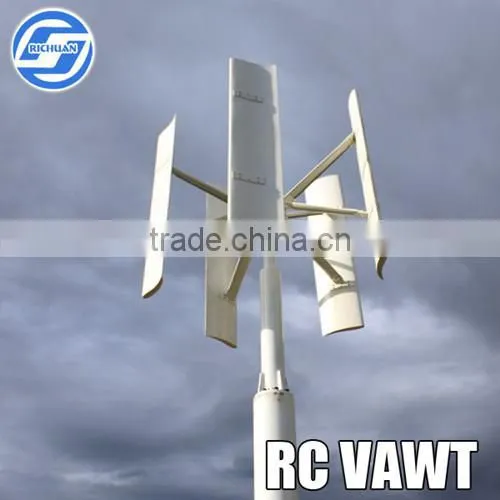

1 30kw vertical wind2 Low speed permanent magnet generator
3,Anti-rust,anti-corrosion
4,Good after-sale service
Product performance:
Start rapidly under ultra low wind speed
It can start generating power under very slow wind speed condition, wind speed
3m / s ~ 25m / s are the generating range. More than 1/3 of the time in advance of
the general wind power generation, the power generation efficiency has increased
of 30%, which greatly improves the utilization of wind energy.
Mute design multiple protection
Super mute double design, with FRP rotor blades and airfoil, it's toughness strength
is greatly improved, lighter weight, stronger tensile strength. Run more smoothly,
greatly reduced the occurrence of crashing.
Anticorrosive and antirust durability
Richuan generator has its unique internal design. It will work properly and smoothly
under the arctic, high temperature, high humidity, sands blown even in the sea, with
a high reliability. The life span is up to 20 years.
1.One year warranty for whole system
2.Unique waterproof, moisture-proof, anti-dust, anti-salt spray design
3.Low noise design
4.High-strength, corrosion-resistant special glass fiber reinforced plastic material
5.One-year warranty
2.Intuitive online installation instructions
3.Global coverage of the installation and maintenance
4.Improved after sale access and service system
Qingdao Richuan precision Machinery Co,Ltd. is a manufacture enterprise which
develops, manufactures and sells small and medium complete set of wind turbine.
Normally we produce the vertical axis and the horizontal axis wind-driven generator.
Our company has design department and system configuration team, thus we can
provide power supply system solutions depending on various customers' requirements.
Moreover, we have engineering department, our engineers can provide product's
installation guidance and training to our customers
| Rotor diameter (m) | 7 |
| Blade specification(m) | 10*1 |
| Swept area(m2) | 70 |
| Rated Rotated speed(r/m) | 60 |
| Rated wind speed (m/s) | 13 |
| Rated power(w) | 30000 |
| Max power(w) | 32000 |
| Output voltage(v) | 360 |
| Start up wind speed(m/s) | 3 |
| Operating wind speed(m/s) | 3-25 |
| Height of tower (m) | 15 |
| Weight of top section (kg) | 645 |
| Number of blade | 7 |
| Controller Parameter | 360V 120A |
| Inverter Parameter | DC216V→user’s local voltage & frequency |
| Recommend battery capacity & quantity |
9000AH 12V 150AH 60pcs |
| Can supply power for |
Refrigerator,washer, waterpump,tv, lighting,electric fan, charger,air condition, small village |
The permanent magnet generator:
Blades:
FRP, (Fiber Reinforced Polymer) acronym, the existing CFRP, GFRP, AFRP, BFRP so on.
Chinese in FRP refers GFRP. FRP composite material is a fiber material of the base material
according to a certain mixing ratio, after a special extrusion die, drawing the formation of
high-performance materials.Since the resin used in different varieties, so there are glass fiber
reinforced polyester, glass fiber reinforced epoxy , phenolic FRP said. Light and hard,
non-conductive, high mechanical strength, recycling less resistant to corrosion.
The inverter:
1.digital design, simple structure, powerful, stable and reliable
2.using annular isolation no-load loss of transformer, inverter with high efficiency
3.pure sine wave, automatic voltage regulator, output and frequency, waveform distortion rate ≤ 5%
4.strong overload capacity, 120% overload can work normally for 1 minutes; 150% overload can
work normally for 10 seconds
5.high reliability; high stability; high shock resistance; low noise, noise≤ 40dB
6.input / output circuit complete isolation design, improve product stability
7.has over-voltage, under-voltage, overload, overheating, short circuit, lightning protection function
and alarm function
Tower:
In plywood boxes:
