Specifications
1.CE2.Automatic braking system
3.Low noise lever, low
4.Remote control
5.Low rated torgue,low request to air
1.Product parameters and advantages:
Rated power |
60KW |
Max power |
65KW |
Output voltage |
360V (Optional) |
Rated wind speed |
12m/s |

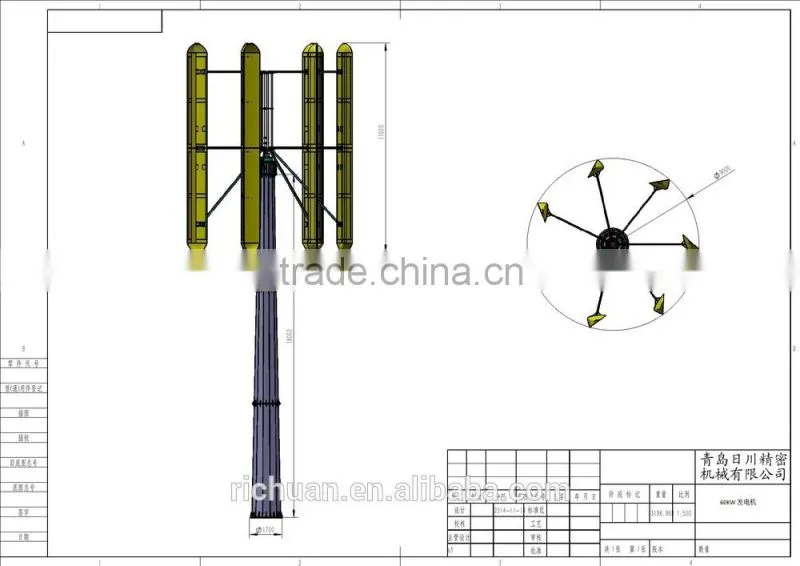

Rotor diameter |
9m |

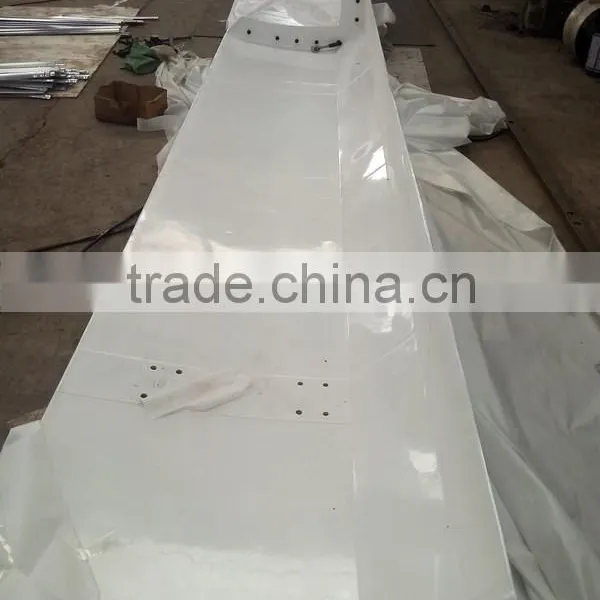

Blade material |
FRP 11m/pcs |
Start-up wind speed |
3m/s |
Work wind speed |
3-25m/s |
Balde rotated speed |
12 r/min |
Number of blades |
7 |
Turbine weight |
3500kg |
Tower height |
18m (height can be specially design and made) |
Tower type |
Steel (Q235B) |
Output controller system |
Controller , Inverter |
1. Low starting torque
2. Low start-up wind speed

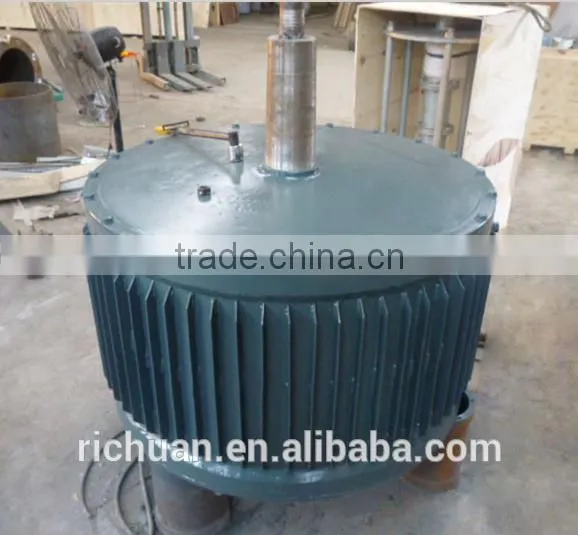

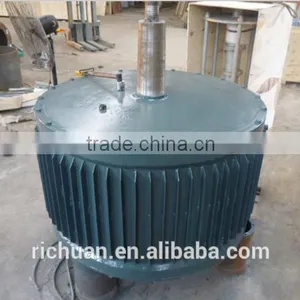

2. Low speed permanent magnet generator.

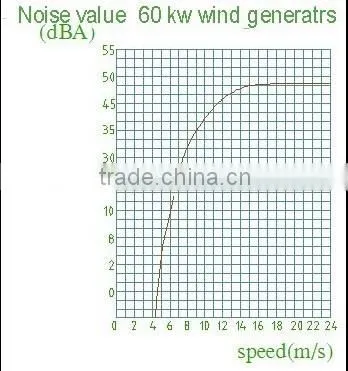

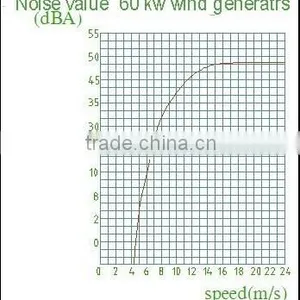

3. No vibration & low noise.

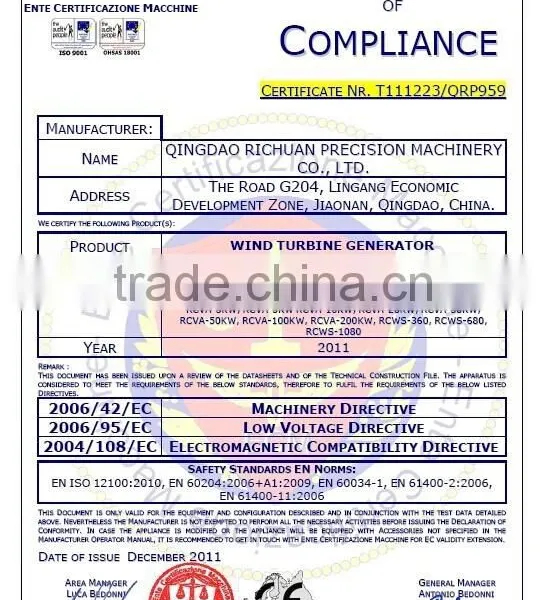

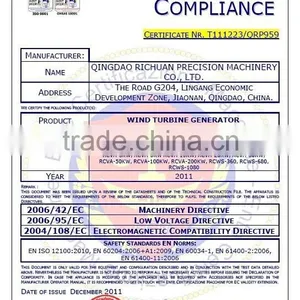

4. All of our products confirm to CE.
5. Reliable wind power system by multifunction controller.
6. PWM constant voltage recharge function provides stable output.
7. On-grid or Off-grid wind power system optional.
8. 1-year warranty for generator and 18-20 years service life.
9. Electronic brake and manual brake, optional.
10. High efficiency and Low mechanical resistance energy loss.
11. Special sealed wind turbines, moisture, sand and water proof.
2.Control System:
|
ON-GRID Control system |
Controller |
|
Rated output voltage of generator:AC360v Rated output current:70A way of protection:Manual,brake,unload. Operating environment temperature:-10℃~40℃ Relative humidity:30%~90%,>90%(No condensation) Operating environment height:<2000m Protective level:IP44 Way of cooling:enforcement Noise:30-40dB
|
|

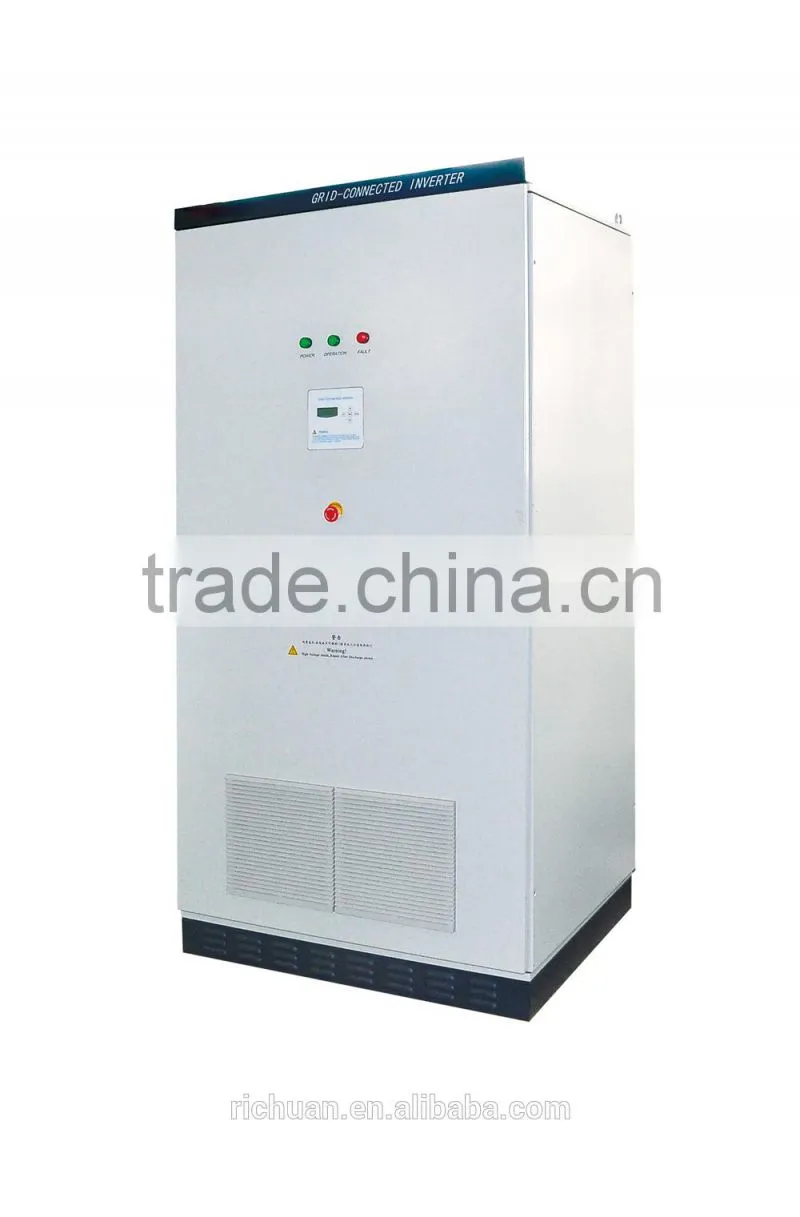

On-grid Inverter |
|
Output way of power:three phase/four lines Rated power:60KW Normal voltage:380v/220v±3% Normal frequency:50Hz/60Hz Waveform:pure sine wave Distortion of total sinusoidal:linear load 5%,nonlinear load <8% Dynamic load and voltage transient:<5% Overload capacity:overload125% 2min,overload 150% 1min Working temperature of environment:-10℃~40℃ Relative humidity:<90% Relative humidity:<2000m(100m increase 1% decreases) Way of cooling:enforcement air-cooled(temperature controlled) Noise :50-65dB |

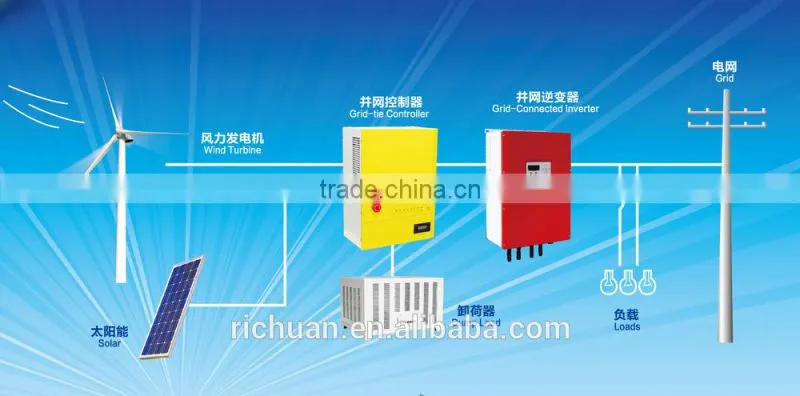

3.Connection Mode
4.Notes
a. Tower type and tower height can be changed according to customer’s requirement.
b. Working voltage can be adjusted according to customer’s requirement.
c. For the details, please feel free to contact us.
5.Company Profile
Qingdao Richuan Precesion Macinery Co., Ltd., located in a nice coastal city called Jiaonan is a hi-tech company specialized in research & development, production, sales and service of medium and small wind turbines and devoted to the development and utilization of natural environmental protection energy such as wind energy, solar energy, etc.
The main products of our company include off-grid and grid-connected wind turbines, wind turbine blades and wind solar lighting system. They are widely used in agricultural and pastoral areas, mountainous areas, islands, frontier defence sentries and observatories with no electricity or insufficient electricity and rich wind resources.
Our company has advanced equipment and manufacture process, complete quality management system and excellent technical team to provide high quality and environment-friendly products and improved power supply solution and first-class after-sales service for customers.
