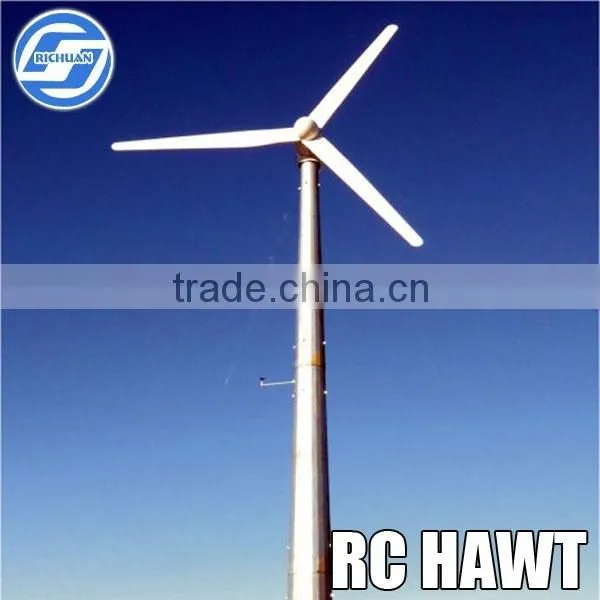

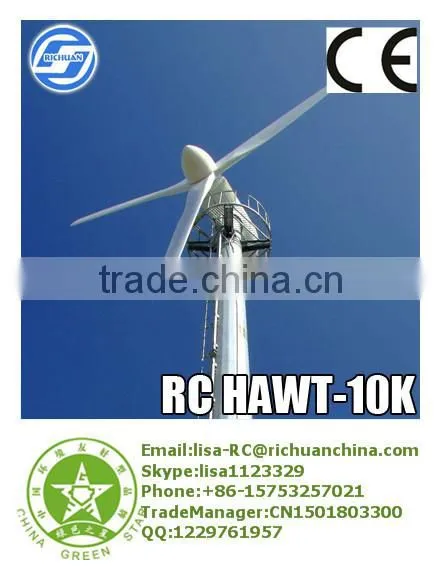

10KW Horizontal Axis Wind Turbine Generator(Alternator) Manufacture in China with Low rpm Low price for sale
Advantage:
1.Low starting torque
2.Low start wind speed
3.Low speed permanent magnet generator
4.No vibration & low noise
5.All of our products confirm to CE
6.PWM constant voltage recharge function provides stable output
7.Reliable wind power system by multifunction controller
8.On-grid or Off-grid wind power system optional
9.1-year warranty for generator and 10-15 years life cycle.
10.Electronic brake and manual brake, optional.
11.High efficiency and Low mechanical resistance energy loss
Product information:
Horizontal Axis Wind Turbine-RCHA-10KW
Power |
10000W |
Type of generator |
Permanent-magnet 240vA.C. |
Rotor diameter: |
7.8m |
Blade Material: |
FRP (Fiber glass reinforced*3) |
Blade length |
4m |
Rated rotor speed |
160r/min |
Rated speed |
10m/s |
Rated Power |
10000W |
Max Power |
12000w |
Output voltage |
DC240v/AC220 |
Start up wind speed |
3(m/s) |
Work speed |
3-25(m/s) |
Security wind speed |
40(m/s) |
Height of tower |
8m |
Top quality except tower |
600kg |
Output controller system |
Controller , Inverter |
Can supply power for |
refrigerator, washing machine , water pump , color TV, lighter, fanner, charger, air-conditioner, small village, etc |
Main Market:
High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America ,South America and Middle East.
Note:

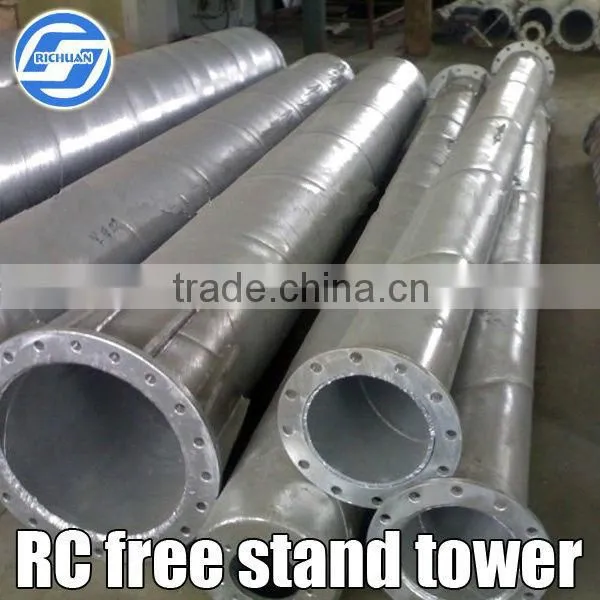

1. Tower type and tower height can be changed as per your request.
2. Working voltage can be specially designed according to your request.
3. CE Approved.
4. For the powrer curve and detail, please feel free to contact us.
Company Profiles:
Qingdao Richuan precision Machinery Co,Ltd. is a manufacture enterprise which develops, manufactures and sells small and medium complete set of wind turbine. Normally we produce the vertical axis and the horizontal axis wind-driven generator.
Our company has design department and system configuration team, thus we can provide power supply system solutions depending on various customers' requirements. Moreover, we have engineering department, our engineers can provide product's installation guidance and training to our customers.
Control System Introduce:
Pure sine wave inverter
1. Pure sine wave output can drive any household appliances.
2. Use integrated circuit, less wire connection.
3. Adopting micro-processor technology, improving system integration.
4. Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit protection, over thermal protection, etc.
5. Be able to work in wind power or wind&solar hybrid system
6. With high efficiency transformer instead of high frequency e-circuit design
7. Automatic regulate voltage,
8. LCD display operation status,
9. High running stability and reliability
10. True sine wave form power output
11. High efficient transformer isolation
12. Buzzer alarm while over-loading/voltage, high-temperature
Micro-computer intelligence controller
1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation .
2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.
3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current.
4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop charging the batteries.
5.the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%
6.Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.

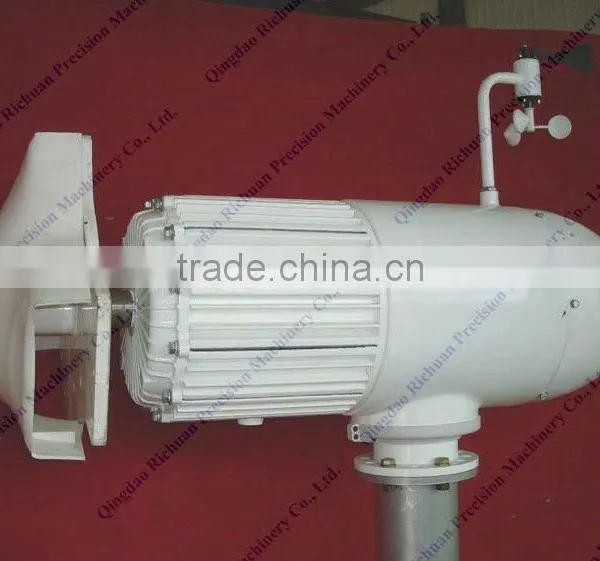

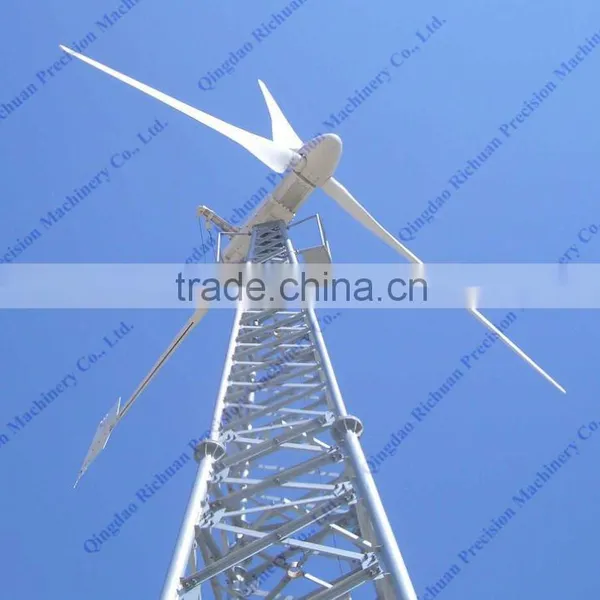

Detail parts pictures for reference:
