800W Residential Solar Wind Hybrid System Price

Specifications

800W residential solar wind hybrid system price
.Low wind start speed
.Permanent magnet generator
.High efficiency
.CE

800W residential solar wind hybrid system price





1.Product parameters and features



Model		RC-WS-800W
Power		800W
Wind turbine power		600W
Solar panel power		200W
System DC voltage		24V
Recommended accumulators		400AH (200AH 2PCS)
Charge control		Automatic intelligent control
WIND TURBINE  PARAMETER	Wind turbine type	PMG (on constant magnets)
	Rotor diameter	2.8M

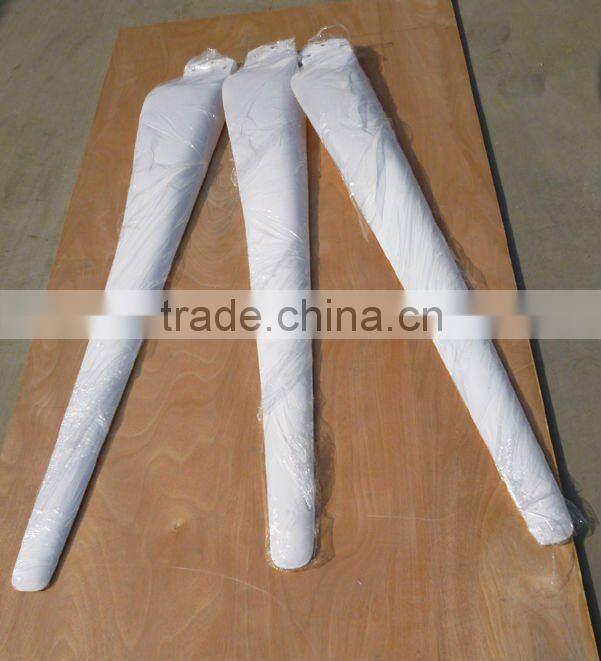

	Blades material	FRP(composite material)
	Rated wind speed	8m/s
	Start wind speed	3m/s
	Working wind speed	3-25m/s
	Security wind speed	40m/s
	Tower type	pulling wire tower
	Tower height	6m
	Weight(without tower)	60kg
SOLAR PANEL PARAMETER	Solar model	200W/100W 2PCS
	Wp max	100W
	Vmp	15.67V
	Imp	6.42A
	Voc	20.22V
	Isc	7.07A
	Size(mm)	1580×808×35
	Weight(kgs)	16.5



1) Low starting torque

2) Low start wind speed.

3) Low speed permanent magnet generator.

4) No vibration & low noise.

5) All of our products confirm to CE .

6) PWM constant voltage recharge function provides stable output.

7) Reliable wind power system by multifunction controller.

8) On-grid or Off-grid wind power system optional.

9) 2-year warranty for generator and 18-20 years service life.

10) Electronic brake and manual brake, optional.

11) High efficiency and Low mechanical resistance energy loss.

12) Special sealed wind turbines, moisture, sand and water proof.

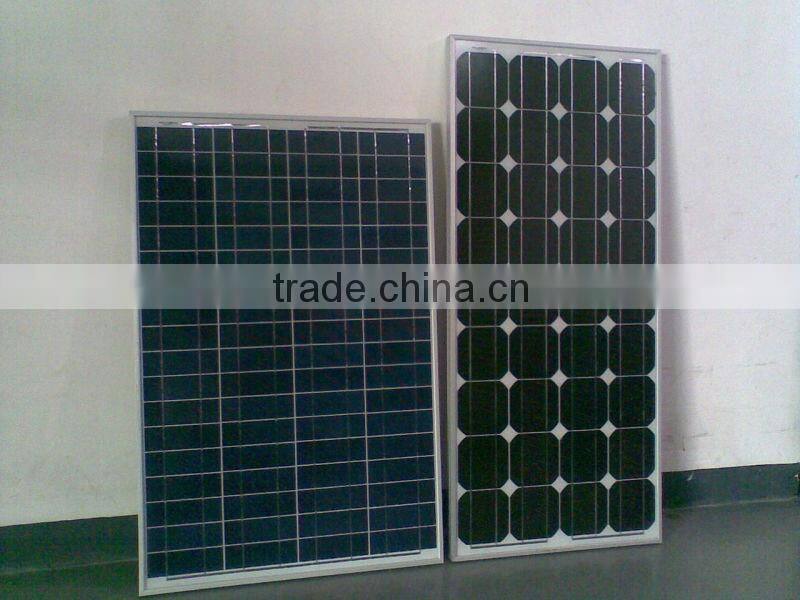

Features of solar panel:



1) High reliability with guaranteed +/-3% output power tolerance.

2) The modules can withstand high wind-pressure, snow load and extreme temperatures.

3) Bypass diodes to minimize power loss with shading.

4) High and stable conversion efficiency to ensure the highest quality.



2.  Controll system

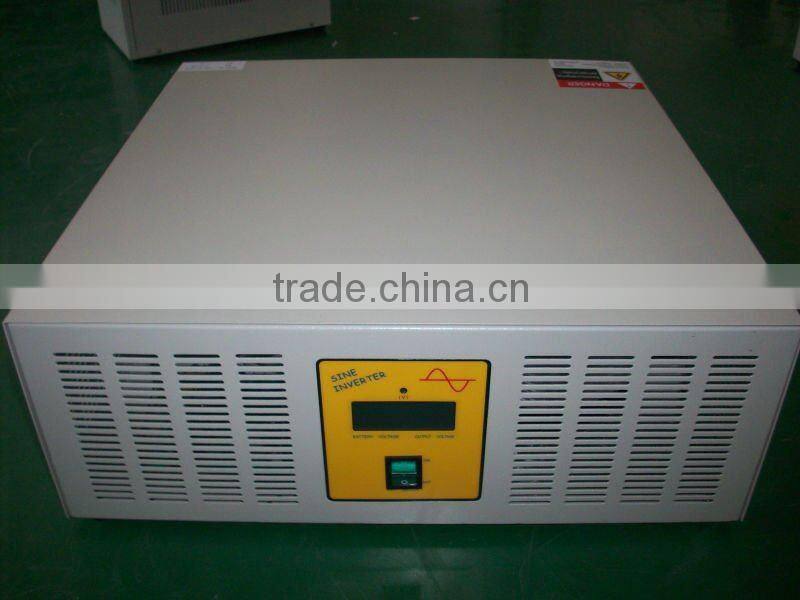

 Pure sine wave inverter



2.   Use integrated circuit, less wire connection.

3.   Adopting micro-processor technology, improving system integration.

4.   Excellent protection includes over voltage shutdown, under voltage shutdown, over load  protection, short circuit protection, over thermal protection, etc.

5.   Be able to work in wind power or wind&solar hybrid system.

6.   With high efficiency transformer instead of high frequency e-circuit design.

7.   Automatic regulate voltage.

8.   LCD display operation status.

9.   High running stability and reliability.

10. True sine wave form power output.

11. High efficient transformer isolation.

12. Buzzer alarm while over-loading/voltage, high-temperature.

  Micro-computer intelligence controller







1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation .

2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.

3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current.

4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop charging the batteries.

5.the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%.

6.Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.

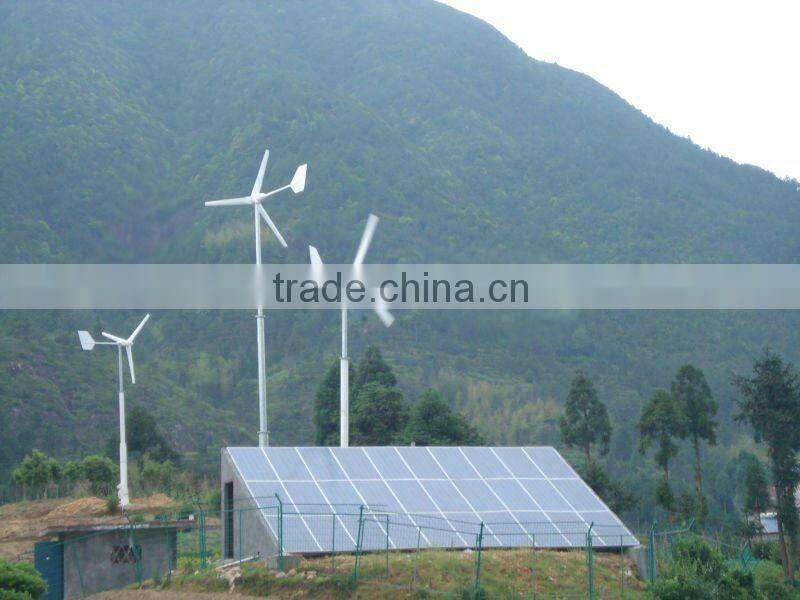

3.Site chosing







4.Notes



a. Tower type and tower height can be changed as per your request.

b. Working voltage can be special requested.

c. For the details,please feel free to contact us.



High quality and competitive price guarantee us a huge market all over the world , such as in Eastern Asia , Europe , North America ,South America and Middle East .

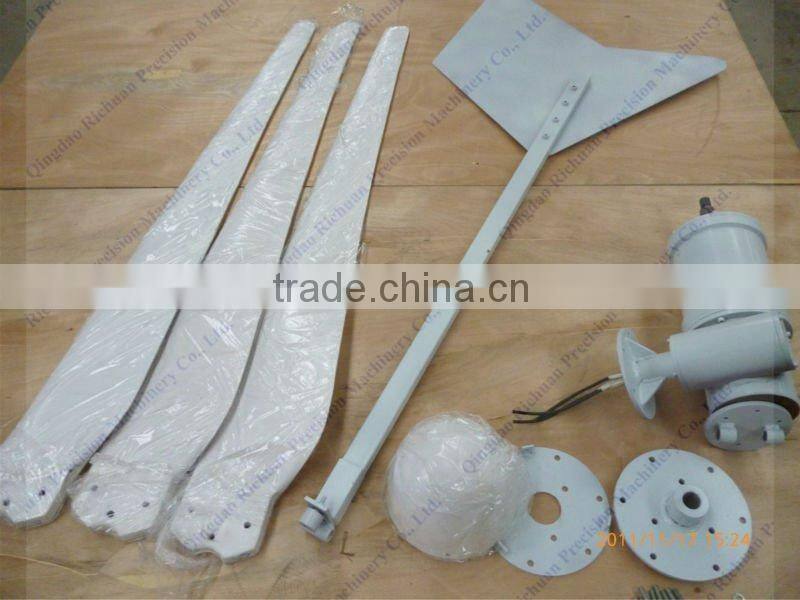

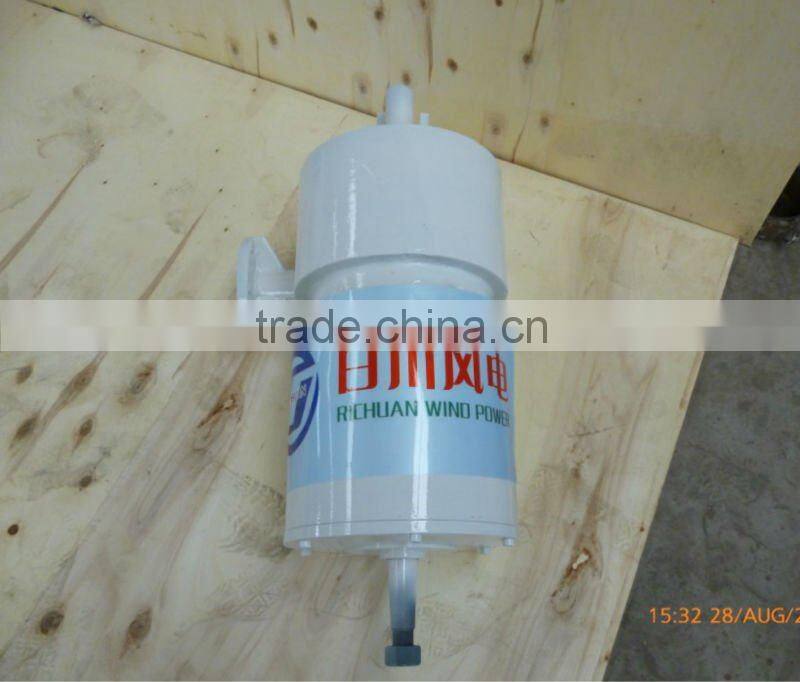

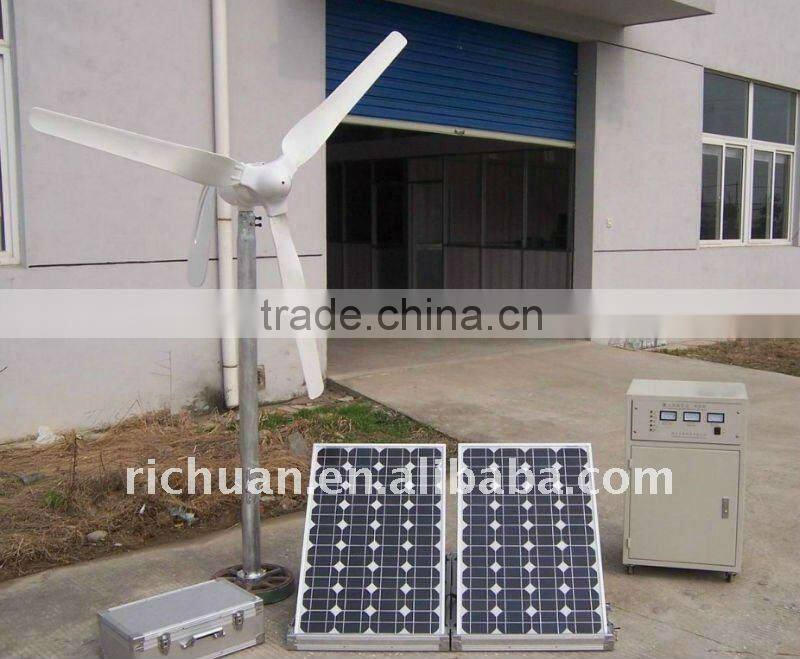

5. Pictures for your reference
