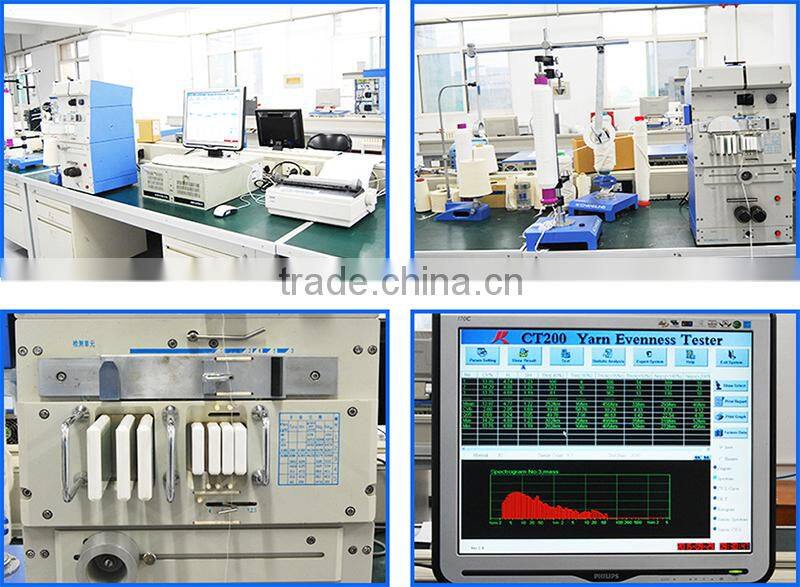

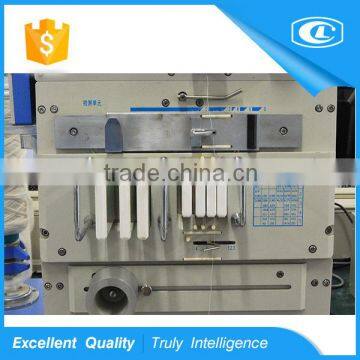

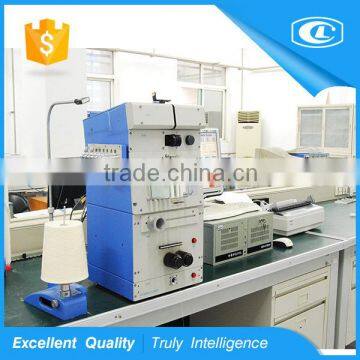

Automatic yarn evenness tester
Automatic yarn evenness tester is a kind of high precision instrument of testing and analyzing yarn evenness and hairiness, which is used to examine yarn quality and guide yarn production. It can be used to test evenness and hairiness of yarns which are spun with cotton, wool, silk, flax and short synthetic fiber.CT200 evenness tester is a kind of high precision instrument of testing and analyzing yarn evenness and hairiness, which is used to examine yarn quality and guide yarn production. It can be used to test evenness and hairiness of yarns which are spun with cotton, wool, silk, flax and short synthetic fiber.
Main features
♦It tests CV%,U%,H,SH,and defects value of twelve levels in real time.
♦It has various graphic indices,such as variation-length curve,unevenness curve,spectrogram,linear density-frequency distribution,etc of yarn and hairiness,fine continuous spectrum and 340 channels,which are convenient to evaluate yarn quality and analyze textile technical fault position accurately.
♦Expert system can help user analyze textile technical fault and evaluate yarn quality level.

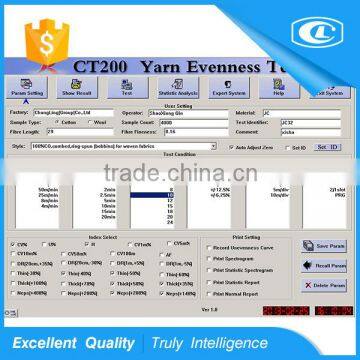

♦Host processor adopts PIV industrial control computer,monitor software bases on Windows platform,Chinese graphic interface,good system integration and high stability.
♦Transmission system adopts imported servo system,low noise and high reliability.
| CT200 | yarn 4tex~80ktex, hairiness 4tex~160ktex |
| Yarn testing speed | 4m/min,8m/min,25m/min,50m/min,100m/min,200m/min, 400m/min |
| Hairiness testing speed | 200m/min, 400/min |
| Testing time | freely set between 10s and 20m, take 10s as interval |
| Coefficient of Variation | (CV%) or Unevenness (U%) and CV (1) V-L curve |
| CV% or U% value testing range: 0.20%~99.99% | |
| V-L curve cutting length 1cm~1475m | |
| Deviation Rate (DR%) and DR curve | Dr value testing range 0.01%~99.99% |
| reference length and threshold 20cm,+35%; 20cm,-30%; 1m,+5%; 1m,-5% | |
| Dr curve: reference length is 1cm, 10cm, 20cm, 50cm, 1m, | |
| threshold is DR curve from 0 to 50% plus-minus | |
| Faults value | output faults value of twelve levels sensitivity at same time |
| thin places -30%, -40%, -50%, -60% | |
| thick places +35%, +50%, +70%, +100% | |
| neps +140%, +200%, +280%, +400% | |
| Spectrogram | ordinary spectrogram measurable wave-length range 1cm~2937m |
| spectrum channels 85 | |
| fine spectrogram measurable wave-length range 1cm~2937m | |
| spectrum channels 340 | |
| Linear density frequency distribution graph | two linear density frequency distribution graphs, one is within the range of |
| -100%~+100%, one is beyond the range of +100% | |
| Statistical function | two kinds of statistical functions, one is statistics of testing data, |
| such as Mean value, CVb, 95% confidence interval (Q95), | |
| max value, min value, etc; one is statistics of batch | |
| testing spectrogram and V-L curve by graphics mode. | |
| Statistical distribution graph | statistical distribution graph of common testing indices (CV%, H value, |
| thin places -50%, thick places +50%, neps +200%), | |
| freely set “day” as unit of statistical time | |
| Hairiness index | hairiness (H) value, standard deviation (SH) |
| Hairiness graph | include hairiness spectrogram, hairiness V-L curve, |
| hairiness distribution graph, hairiness unevenness curve, etc. |
♦Transportation
Transportation will be launched about 10 days after receiving the payment of the instrument.
♦After -sale service
No maintenance cost during ONE year warranty.And guarantee the southeast Asia and the central Asia company once a year.
♦Installation of new instrument
It is depending on the complexity of the instrument and the technology of the local technological staff.
♦What if the voltage different with China?
We considered that the foreign countries' plugs and the voltage is different with the plugs and the voltage in China,we can provide a booster or a buck converter for the foreign buyers.

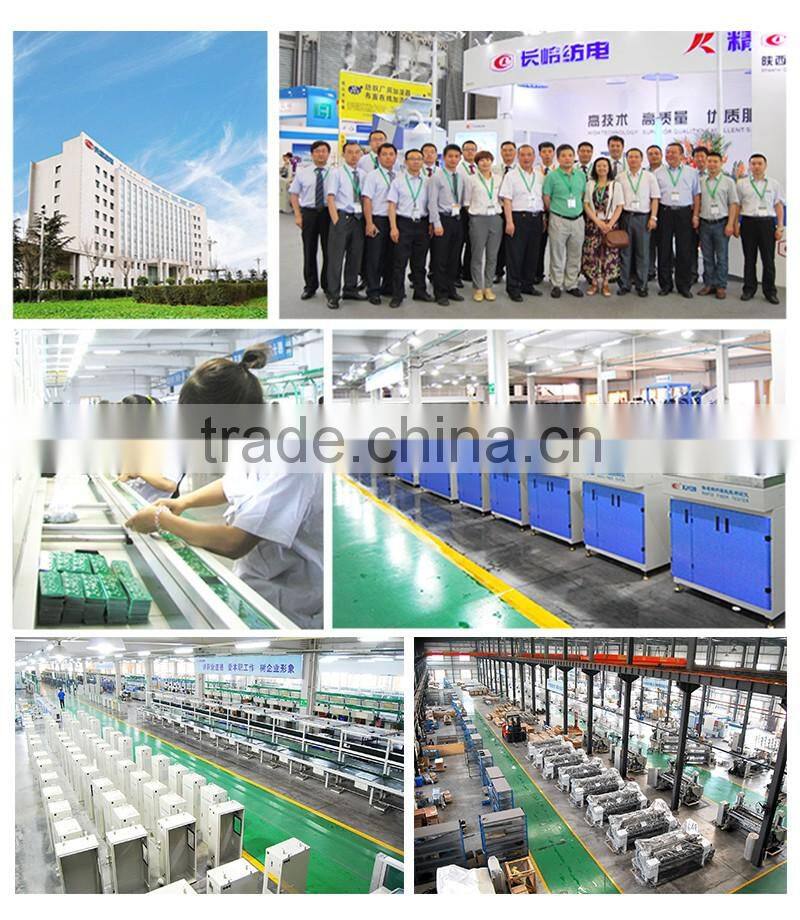

♦Are you a manufacturer or trade company?
We are a professional manufacturer holding our own international trade department,for that we can better understand customer's needs and offer a reasonable price.
♦Others
In order to ensure that the buyers can using the facilities and simple maintenance,changling textile company will provide the place and the training resources for free for foreign buyers communicate and study in changling.
