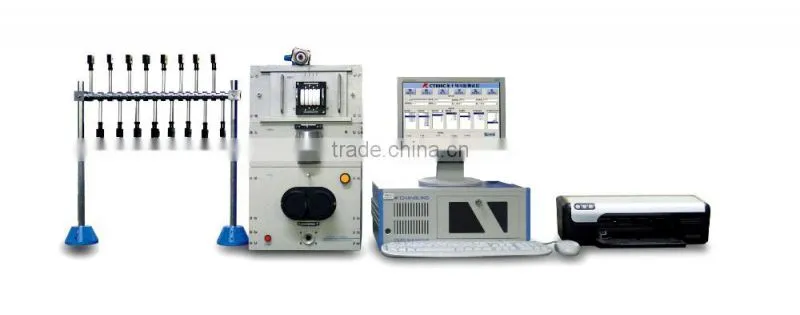

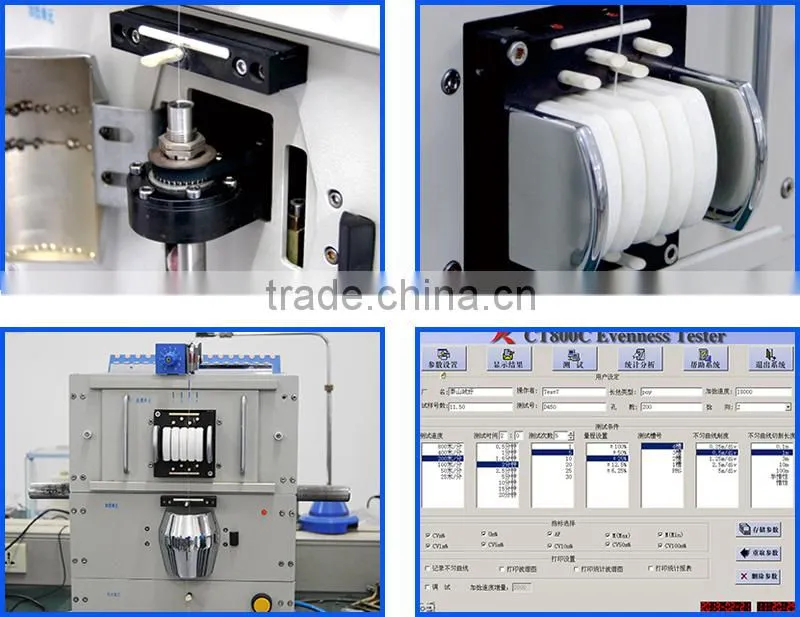

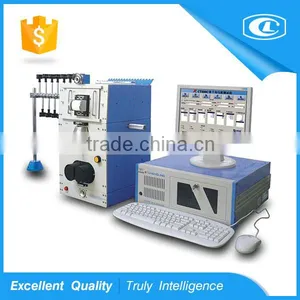

CT800C yarn evenness and hairiness tester
Main features
♦It can be used to check the quality of product.
♦It can be used to seek the best technological condition for filament process.
♦It is used to master the best technological condition of filament equipments.
♦It is one of the bases of upgrading or washing out the equipment.
♦It is used to evaluate and improve equipments of textile mills.
♦The top testing speed is up to 800m/min,which improves testing efficiency greatly.

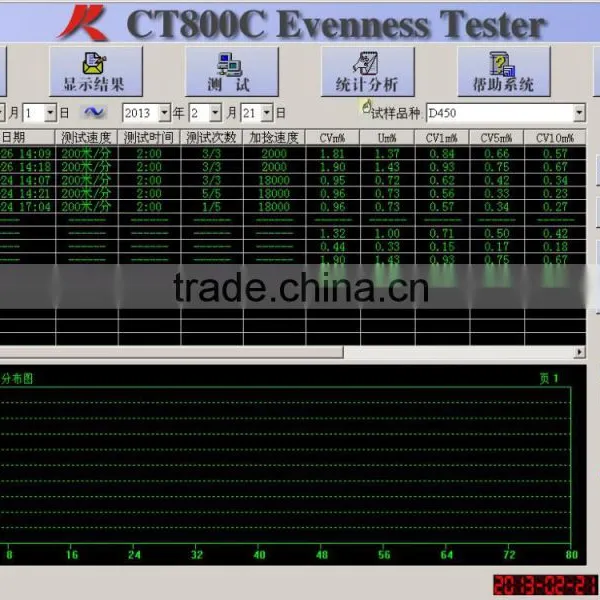

♦Testing indices are abundant.It has spectrogram,variation-length curve,linear density-frequency distribution,and fine continuous spectrum,etc graphic indices.

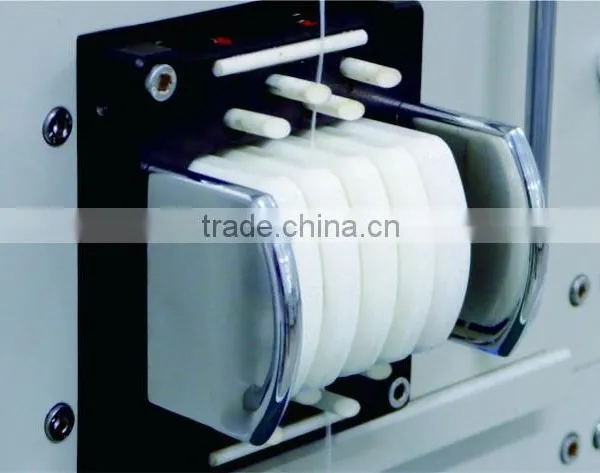

Capacitive measuring slot |
4 |
Testing range |
10dtex~1670dtex |
Traction speed |
25m/min, 50m/min, 100 m/min, 200 m/min, 400 m/min, 800 m/min |
Testing time |
freely choose between 10s and 20m, take 10s as the interval |
Coefficient of variation |
testing range of CV% value or U% value: 0.20%~100.00% |
Variation-length curve |
cutting length 1.7cm~1475m |
Max quality deviation |
equivalent cutting length is freely chosen between 0.1m, 1m, 3m, 10m, 100m, inertia and semi-inertia |
Spectrum analysis range |
1.7cm~2935m (ordinary spectrum has 85 channels, fine spectrum has 340 channels) |
Linear density frequency distribution |
give two graphs of within range and beyond range |
Batch number of tests |
≤30 |
Tension adjustment |
continuously adjustable between 0 and10 |
Twist direction and twisting speed |
two twist directions of S and Z, twisting speed 0~40000r/min |
Input power |
voltage AC220V±10% frequency 50Hz/60Hz power consumption ≤350VA |
|
Pressure range |
0.45MPa~0.6MPa |
Compressed air flow |
3m³~5m³/h |
♦Transportation
Transportation will be launched about 10 days after receiving the payment of the instrument.
♦After -sale service
No maintenance cost during ONE year warranty.And guarantee the southeast Asia and the central Asia company once a year.
♦Installation of new instrument
It is depending on the complexity of the instrument and the technology of the local technological staff.
♦What if the voltage different with China?
We considered that the foreign countries' plugs and the voltage is different with the plugs and the voltage in China,we can provide a booster or a buck converter for the foreign buyers.
♦Are you a manufacturer or trade company?
We are a professional manufacturer holding our own international trade department,for that we can better understand customer's needs and offer a reasonable price.
♦Others
In order to ensure that the buyers can using the facilities and simple maintenance,changling textile company will provide the place and the training resources for free for foreign buyers communicate and study in changling.
