Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Bulldozer > Construction Machinery Bulldozer SD7, SD7 Bulldozer

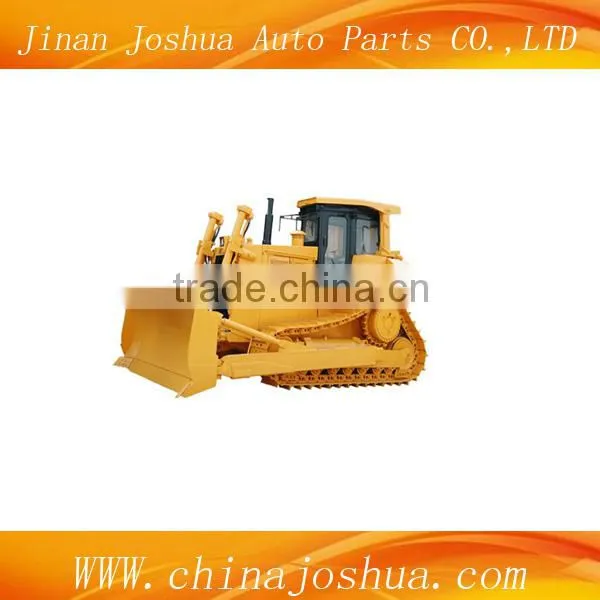

Construction Machinery Bulldozer SD7, SD7 Bulldozer
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Shantui
Model Number:
SD7
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HOT SALE LIU GONG QY8A 8 Tons Truck Cranes for SaleUS$ 30,000 - 35,000MOQ: 1 Set -
HOT SALE LIU GONG QY8E 8 Tons Truck Cranes for SaleUS$ 30,000 - 35,000MOQ: 1 Set
-
HOT SALE LIU GONG QY12C 12 Tons Truck Cranes for SaleUS$ 30,000 - 35,000MOQ: 1 Set
-
HOT SALE LIU GONG QY16L 16 Tons Truck Cranes for SaleUS$ 30,000 - 35,000MOQ: 1 Set
-
HOT SALE LIU GONG QY20A 20 Tons Truck Cranes for SaleUS$ 30,000 - 35,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Shantui
Model Number
SD7
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
23800 KG
Dimension(Long * Breadth * High)
76163*3500*3402
After-sales Service Provided
Overseas service center available
Specifications
SD7 Bulldozer1.engine:CUMMINS NTA855-C280S10
2.equipped with a hydraulic drive system with hydraulic control technology
Hot Sale SHANTUI SD32 Bulldozer
Product Description
| Specification | |||
| Dozer | Tilt | ||
| Operation weight | kg | 23800 | |
| Ground pressure | kpa | 71.9 | |
| Track gauge | mm | 1980 | |
| Min. Ground clearance | mm | 404 | |
| Gradient | º | 30/25 | |
| Dozing capacity | m3 | 8.4 | |
| Blade width | mm | 3500 | |
| Max.digging depth | mm | 498 | |
| Overall dimensions | mm | 5677X3500X3402 | without ridge buster |
| 7616X3500X3402 | with ridge buster | ||
| Engine | |||
| Type | CUMMINS NTA855-C280S10 | Option: Shangchai C6121ZLG83B | |
| Rated revolution | rpm | 2100 | |
| Reted power | KW | 169 | |
| Max. Torque | N.m/rpm | 1097/1500 | |
| Rated fuel consumption | g/KW.h | ≤ 235 | |
| Undercarriage system | ||
| Type | The track is triangle shape. The sprocket is elevated. | |
| Number of track rollers (each side) | 7 | |
| Pitch | mm | 216 |
| Width of shoe | mm | 560 |
| Gear | 1st | 2nd | 3rd | |
| Forward | km/h | 0-3.9 | 0-6.5 | 0-10.9 |
| Back ward | km/h | 0-4.8 | 0-8.2 | 0-13.2 |
| Implement hydraulic system | ||
| Max. system pressure | Mpa | 18.6 |
| Pump type | high pressure gears pump | |
| System output | L/min | 194 |
| Driving system | |||
| Toque converter | Torque converter is power separating hydraulic-mechanic type. | ||
| Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted. | ||
| Steering clutch | The steering clutch is hydraulic pressed, non-constant engaged clutch. | ||
| Steering brake | The braking clutch is hydraulic pressed by spring, separated hydraulic, constant meshed type. | ||
| Final drive | The final drive is two-stage planetary reduction gear mechanism, splash lubrication. | ||
