DAF-1 1.5kv 155 THERMAL Acrylic Fiberglass Insulation Sleeving
Negotiable
/ Meter
5000 Meters(Min. Order)
- Shanghai
You May Like
-
DAF-1 F Class Fiberglass Cable Protected Insulation Sleeving
-
DAF-1 High Temperature Fiberglass Cable Protected Insulation Tube
-
Acrylic Covered FG Sleeving Wire Protection Dielectric Pipe Sleeving
-
Acrylic Covered DAF-2 FG Sleeving Wire Protection Dielectric Tube
-
Acrylic Coated FG Electrical Insulation Sleeves Dielectric Tube DAF-2
-
Acrylic FG Braided Electrical Dielectric Sleeving DAF-2 Fclass
Product Details
| Place of Origin | Shanghai, China | Brand Name | DEAN | |
| Model Number | DAF | Type | Insulation Sleeving | |
| Material | Fiberglass |
Product Description
Specifications

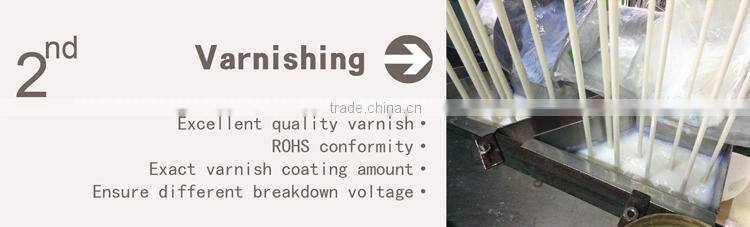

DAF is fiberglass braided with acylic resin and cured with high temparature.1)water resistance
2)dielectric strength
Description: Description: DAF is fiberglass braided sleeving Coated with acrylic resin and cured with high temperature.
Standard voltages: DAF-1(1.5KV), DAF-2(2.5KV), DAF-3(4KV)
Thermal class: F
Certificate: UL E338556, RoHS-confirm according to 2002/95/EC
Application: DAF is widely used in wiring insulation and mechanical protection for Class F electric motors, transformers, appliances, generators, wireless sets and other electrical instruments.
Color: Different colors could be provided on request.
| Voltage Breakdown | DAF-1: 1500 Volt; DAF-2: 2500 Volt; DAF-3: 4000 Volt; | |||
| Flexibility under low Temperature | No cracking and resin off under -10°C by 24h | |||
| Inside Dia. (mm) | Tolerance(mm) | Wall thickness(mm) | ||
| DAF-1 | DAF-2 | DAF-3 | ||
| 0.5—2.5 | +0.3 | 0.40±0.12 | 0.41±0.12 | 0.43±0.12 |
| 3.0—4.0 | 0.46±0.13 | 0.48±0.13 | 0.51±0.13 | |
| 5.0—8.0 | 0.50±0.15 | 0.52±0.15 | 0.55±0.15 | |
| 9.0—12.0 | 0.60±0.18 | 0.62±0.18 | 0.66±0.18 | |
| 14.0-16.0 | 0.62±0.18 | 0.65±0.18 | 0.80±0.18 | |
