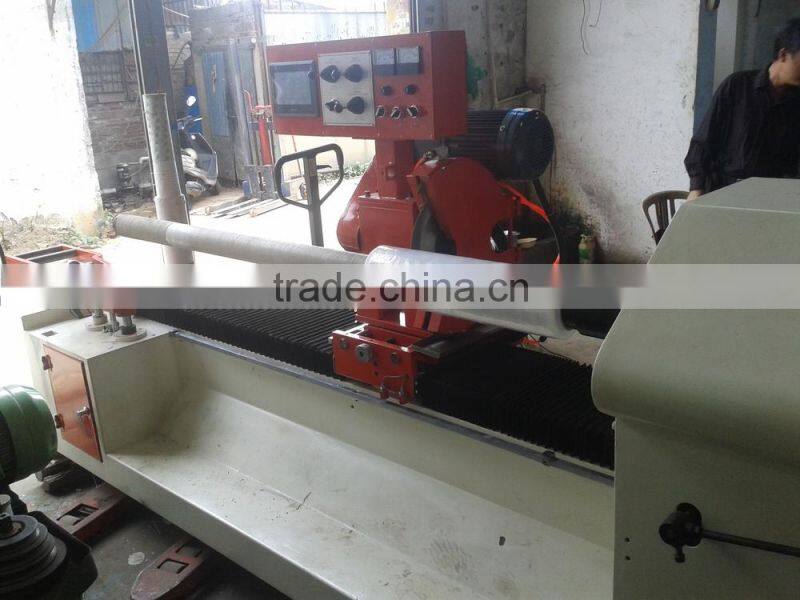

Automatic Film Cutting Machine

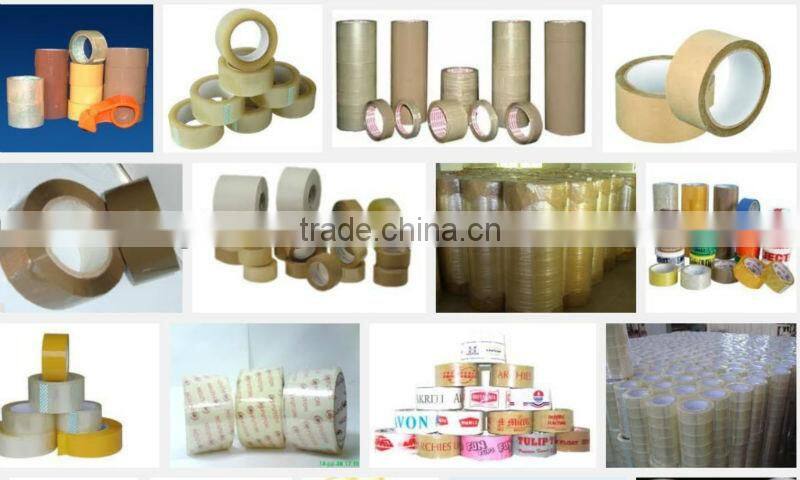

Applicable to cutting the rolls of various adhesive tape and film. For example :pvc tape, rolls of double faced adhesive tapes,masking adhesive tapes,building adhesive tapes,various special adhesive tapes and so on.
Feature:
Specification:
1, High cutting efficiency with single knife single shaft;
2, Ball spindle and rail driven by step (servo) motor. Cutting width can be randomly set up with high precision;
3, PLC programmable (human-machine interaction system optional) control for easy operation and maintenance;
4, knife angle is adjusted byu servo motor, Knife feeding controlled by servo motor or Knife feeding controlled by hydraulically, automatic spray for blade lubrication, smooth cutting ends ;
5, Cutting by circular knife, main shaft frequency convertible and stepless adjustable,
adaptable to various materials;
6, Paper Tube ID: 76mm
7, Max. Cutting Diameter: 150mm
8, Cutting Speed: 3~10sec/pc
9, Air Pressure: 5Kg/cm2
10, Power: ~6.5kW
11, Machine size:3.3x1.5x1.4M
12, Weight: 1800KGS
Parts Description of HFT-1350 automatic adhesive tape Cutting Machine
Parts description |
Qty |
Origin/Brand |
PLC |
1 set |
Japan |
Touch screen |
1 set |
Japan |
Invertor |
3 sets |
Japan |
Drive motor |
3 set |
YASKAWA, Japan |

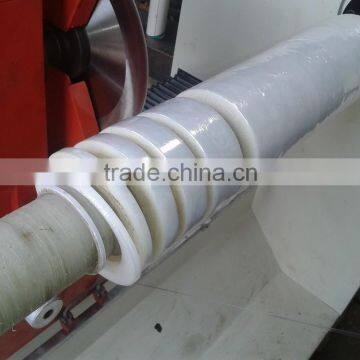

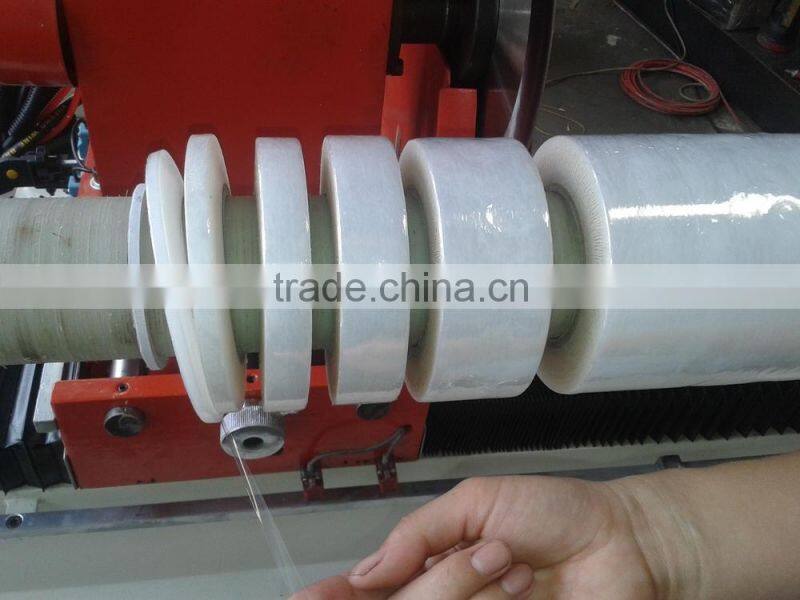

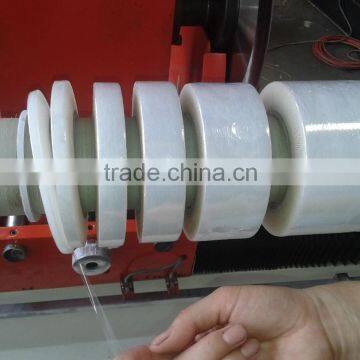

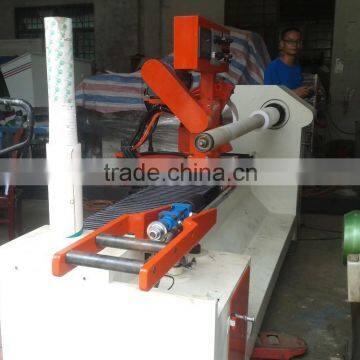

Details of Machine:
