Specifications
1.herb grinding machine2.Model:60B herb grinding machine

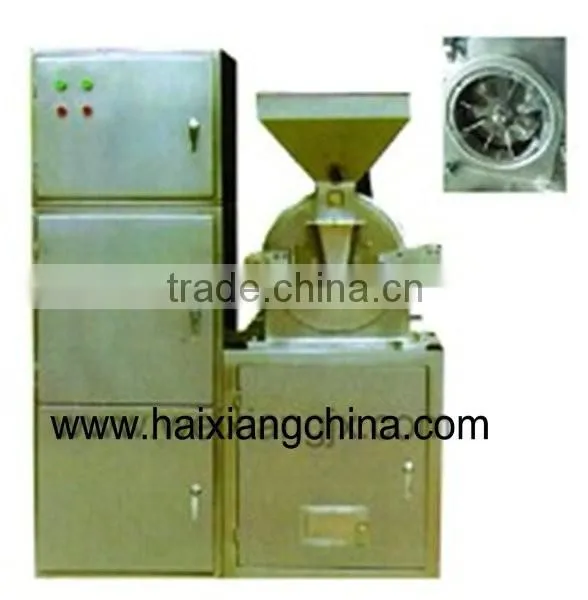

Model B Universal Foodstuff Pulverizer Machine
Main Application:
Model B Dust Collecting Crushing Set is used in the industries of pharmaceutics,chemical,food and etc.It is a new generation of grinding-and-dust-collecting equipment.
Operating Principle:
By means of relative motion between movable and fixed fluted discs,material is crushed through impact and friction of the teeth and impact among the material.Well crushed material runs to the catcher automatically by the rotary centrifugal force.Dusts are collected through the collector box and get filtered to recycle.The machine is designed according to GMP standard and made of stainless steel.There is no dust in the air during the crushing process.It not only improves the utilization rate of the material but also reduce the company cost.Its performance is up to the international advanced level.
Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.
| Model | 20B | 30B | 40B | 60B |
| Capacity(kg/h) | 60-150 | 100-300 | 160-800 | 250-1200 |
| Speed of spindle(rpm) | 4500 | 3800 | 3400 | 2800 |
| Size of imput gramules(mm) | less than 6 | less than 6 | less than 6 | less than 10 |
| Crushing fineness | 60-120 | 60-120 | 60-120 | 60-120 |
| Crushing Motor | 4 | 5.5 | 7.5 | 15 |
| Dust collecting motor | 0.55 | 0.75 | 1.1 | 1.5 |
| Overall Dimensions | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1750×1100×1950 |
