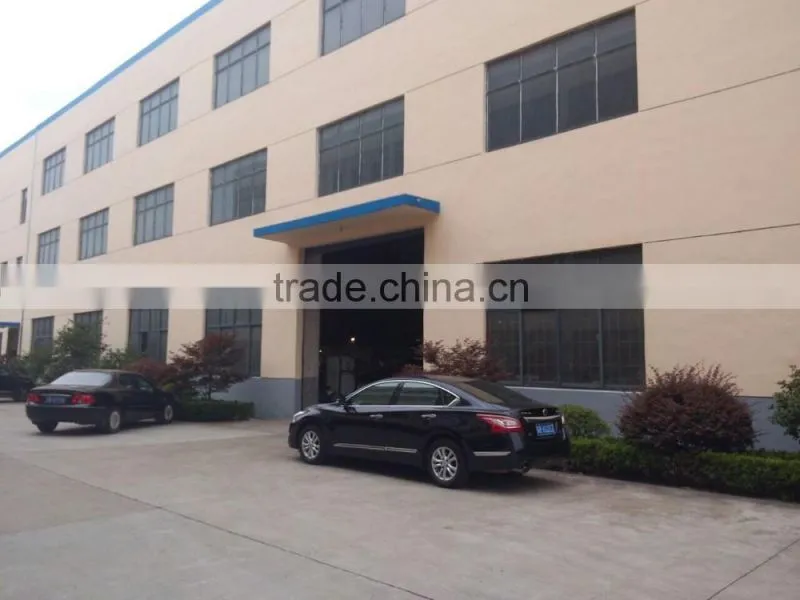

Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We have professional engineer and sales team.

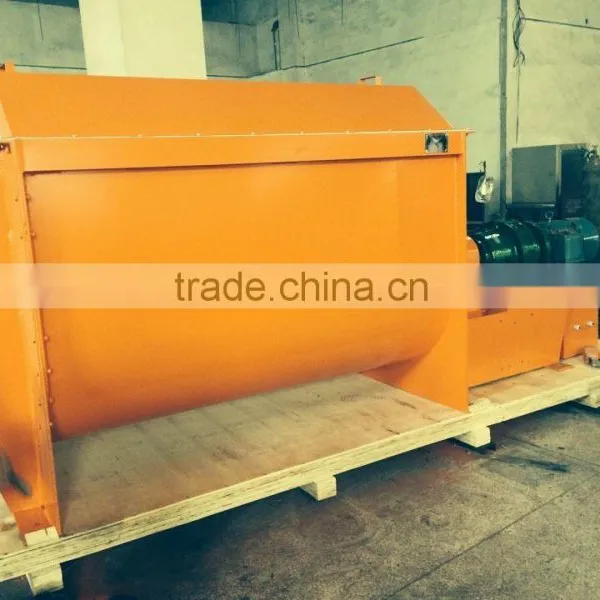

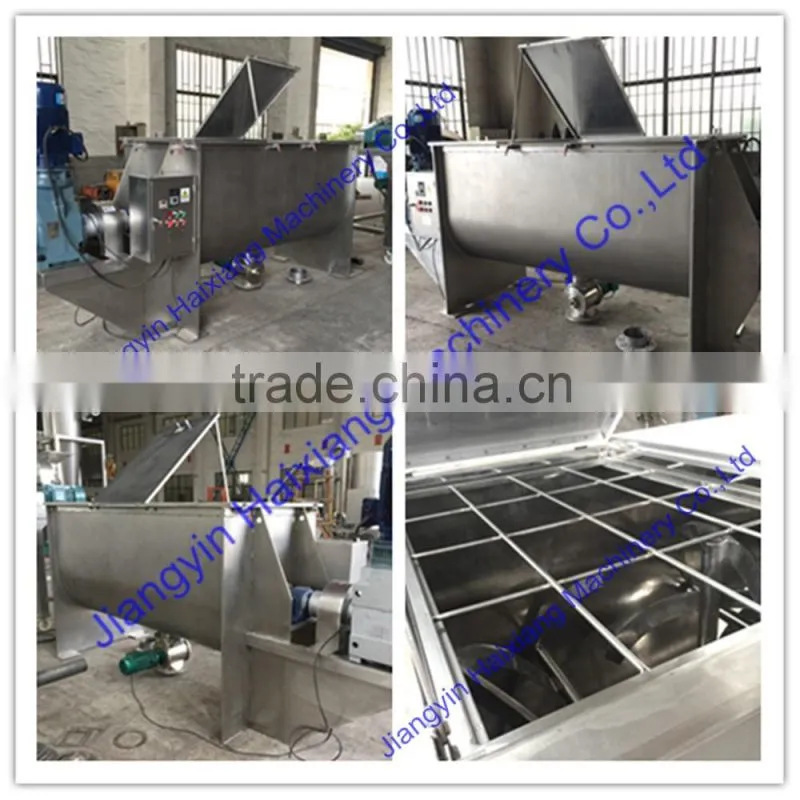

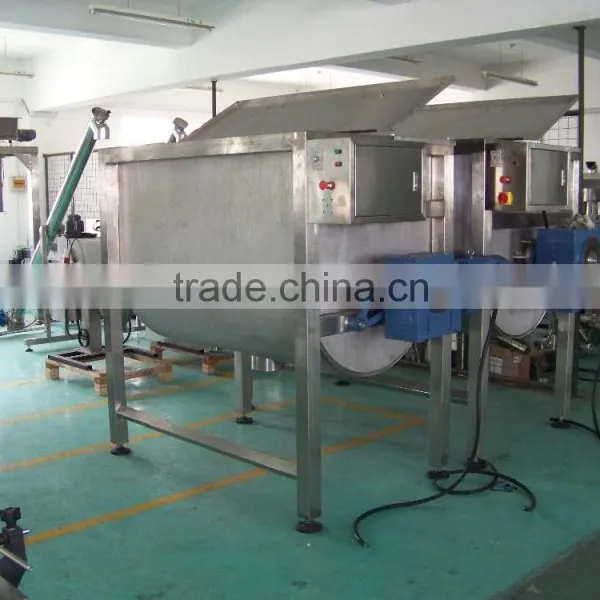

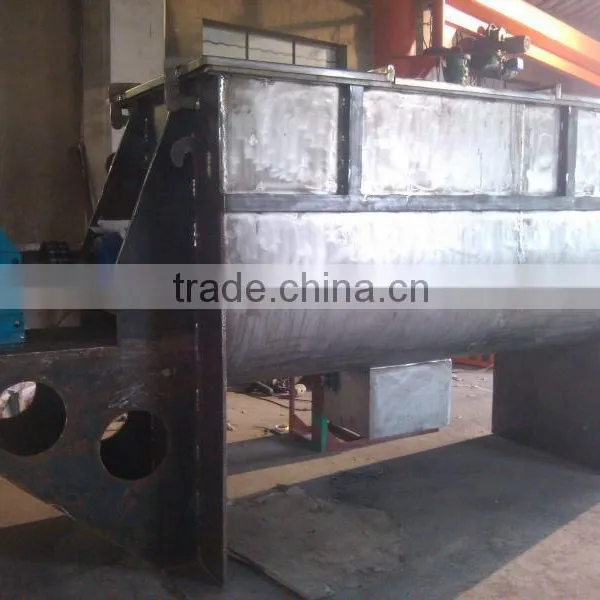

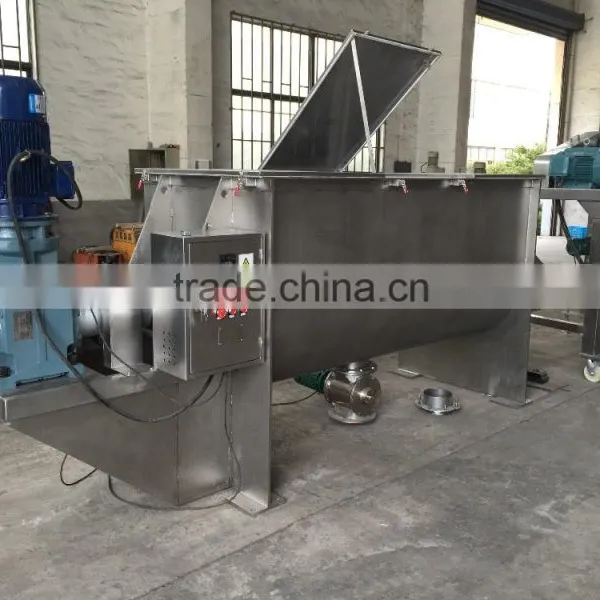

WLDH horizontal ribbon mixer
Working Principle & Structure:
WLDH Series Horizontal Ribbon Mixer belongs to low speed rotary machine. The wide ribbon makes the convection of the material to achieve the mixing effect.

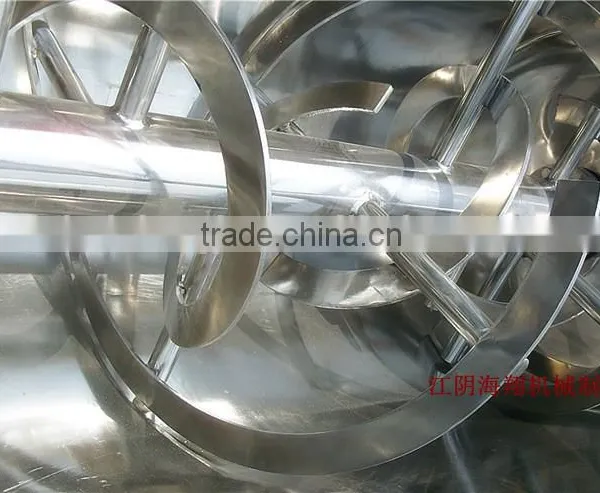

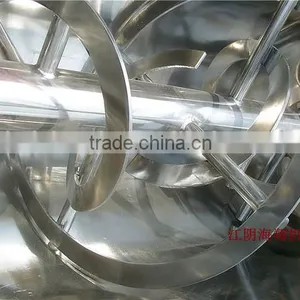

It consists of container, main shaft, and the drive transmission part. The container is U shape. The machine can be made of Carbon Steel (C model) and Stainless Steel (P model). It can be also equipped with the jacket for the container. It can heat, cool or vacuum in the jacket. The inside pressure of the jacket is less than 0.1 Mpa (The pressure can be customized). Two layers screw ribbons makes the convection of the material to achieve the mixing effect rapidly. There is a discharging valve in the middle of the container bottom. The drive parts adopt separated devices, that is, the motor is connected with reducer by the strap. Thus, It can save the space and has the overload protection.
Application:
For the big load factor, small work area, this machine is applied to mix the sticky powders or granule with large capacity and stable variety. Therefore, it is widely used in pharmaceutical, foodstuff, chemical, pesticide, plastic, dyestuff industries, etc.
Technical Parameter:
technical parameters
Model/Project |
All Volume (m3) |
Loads coefficient |
powder (kw) |
Size |
weight (kg) |
WLDH -0.1 |
0.1 |
0.4-0.8 |
3 |
1190×740×770 |
330 |
WLDH -0.3 |
0.3 |
4 |
2030×630×980 |
720 |
|
WLDH -0.5 |
0.5 |
7.5 |
2320×730×1130 |
980 |
|
WLDH -1 |
1 |
11 |
2800×920×1320 |
1700 |
|
WLDH -1.5 |
1.5 |
11 |
3180×1020×1550 |
1800 |
|
WLDH -2 |
2 |
15 |
3310×1120×1640 |
2100 |
|
WLDH -3 |
3 |
18.5 |
3750×1290×1820 |
3000 |
|
WLDH -4 |
4 |
22 |
4220×1400×1990 |
3980 |
|
WLDH -5 |
5 |
22 |
4220×1500×1990 |
4620 |
|
WLDH -6 |
6 |
30 |
4700×1610×2260 |
6180 |
|
WLDH -8 |
8 |
37 |
4420×2150×2470 |
8200 |
|
WLDH -10 |
10 |
45 |
5520×2960×2720 |
8920 |
|
WLDH -12 |
12 |
45 |
5720×3010×2840 |
9520 |
|
WLDH -15 |
15 |
55 |
5840×3540×2940 |
9950 |
Which payment terms can we accept?
1. Normally we can work on T/T term or western union.
2. On T/T term,30% down payment is required in advance. And 70% balance shall be settled before shipment.
Which incoterms can we work?
Haixiang company is a professional and sophisticated international supplier, and we normally work on EXW, FOB, CIF
Delivery time?
Normally, our delivery time is 30-45 days after we receive the deposit. If the order is big, we need to extend the delivery time.
What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.
Warranty time?
We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
