Specifications
Waste Tire Recycling Complete Line,used tire complete production line,waste tyre recycling production lineDouble Hook Tire Wire Debeader
Summary:
1.To granulate radial tires into fine rubber crumb of 5~200 mesh with steel and fiber completely recycled at ambient temperature.
2.The input is whole tires,after the processing,steel is completely separated and fiber can be separated up to 95% or above.The finish product is high and competitive in the market
3.Tight construction, small space and simple technique flow.
4. Low energy-consuming and good performance-cost ratio
5.Hight automatization, fewer labors requirement.
6.Reasonable construction,easy operation and low rate of breakdown
7.Environmental-protection,no pollution(no waste gas,no waste residue,no polluted water),meeting the environmental requirement of the government.
Main Process:
1.steel wire drawer: separate the wire in the tyre.
2.whole tyre crusher: crush the tyre to 30-80cm chips
3.rubbing/cutting machine: coarse crushing, fine milling, separating steel wire etc .
4.rubber powder screener: grading the crude fibre and rubber powder.
5.Belt Iron separator: mainly applied for separating the iron materials from the rubber particles.
6.Magnetic roller Iron separator: can be effectively used for separating small iron powder.
7.rubber fiber separator: used in separating the fine fluff fibre mixed in rubber powder.
8. rubber fine miller: fine grind the rubber granule to 5-100mesh.

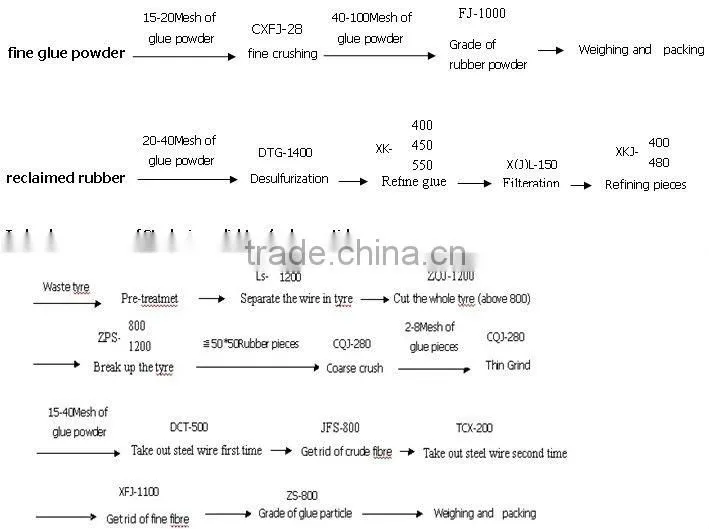

Technology Process:
Specifiction:
1.Convenient in operation and with good safety protection
2.High efficiency, low energy consumption
3.Widely used cutting machine
4.Big knives , high efficience
5.Hydraulic type
Application:
It could be applied to cut all kinds of rubber blocks and strips. It is good for cutting rubber tyre, rail tyre, rubber strips etc.
Structure & Principle:
It mainly consists of the motor, cutting blades, static blades, frame, oil cylinder, hydraulic system, control box, etc.
Its basic principle is: The oil cylinder and hydraulic system are driven by a motor. Put the tyre without wire bead on the stand of the static blades. The tyre is fixed by locking arms tightly then cut by the blades driven by oil cylinder. The tyre is cut into several blocks, which will be more easily crushed or shredded for the next process.
Technical Data:
| Model: | 900 | 1200 |
| Capacity(pcs/h) | 10~30 | 20~40 |
| Handling tire(mm) | ≤1000 | ≤1200 |
| Main power(kw) | 5.5 | 7.5 |
| Working pressure(mpa) | 8 | 12 |
| Length of Blade(mm) | 680 | 800 |
| Cylinder Hydraulic(mm) | 125 | 150 |
| Weight(T) | 1.2 | 2.2 |
Delivery time: 25-35 days after receiving 30% deposit.
Service: Provide Installation, maintenance and technical guidance for life.
Guarantee:Quality free for One year,maintainance for lifetime
P.S:The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
We produce rough crusher, shredder,automatic tire cutter,bead-wire drawing machine,tire splitting machine,separator,screener,conveyer and all kinds of waste tire recycling machines,and with the strong technology we can accept custom made!
