All kinds of Threaded EPDM Flexible Rubber Joint
Rubber expansion joint type:
1.single sphere rubber joint
2.double sphere rubber joint
3.heavy duty rubber joint
ucer type rubber joint
5.threaded sphere rubber joint
Rubber joint brief introduction:
1,Flexible rubber joint type is also called JGD flexible single rubber ball joints, pipe suspension shock absorber, rubber pipes, soft rubber joints, metal pipe’s flexible coupling, enhanced by inside rubber nylon cord fabric, rubber compound rubber ball and loose tube metal flange.
2,High pressure, good elasticity, large displacement, balance pipe deviation, absorption of vibration, good effect for reducing noise, convenient installation and other characteristics.
3,It can be widely used in water supply and drainage, water, Heating ventilation air conditioning, fire protection, paper making, pharmacy, petroleum chemical industry, ship, water pump, compressor, fan and other pipe system.
Scope of application:
Acid, alkali, corrosion, oil, hot and cold water, compressed air, gas, etc Joint material:Environmentally friendly synthetic rubber;Product environmental protection no pollution, no lead and other toxic substances.
Level of shock absorption:good vibration is very high.
Joint features:
In strict accordance with international standards and raw material quality requirement, put an end to cut corners, environmental protection standards, product raw materials not only needs a new material, environmental protection level of new material is needed.
technical conditions
| working pressureMPa(kgf/cm2 ) | 1.0(10) | deflection angle | (a1+a2 )45° | |
| burst pressureMPa(kgf/cm2 ) | 3.0(30) | vacuumeKPa(mm/Hg) | 53.3(400) | |
| applicable tempressure | -15~115`C(for special conditions)-30~250`C | |||
| applicable media | water,sea water,hot water,air,compressure,air oil,acid,alkali,etc. | |||
main connecting dimension
| nominal diameterDg | length(mm) | axinal displacemant | horizontal displacementmm | ||
| mm | inch | extension | compression | ||
| 20 | 0.75 | 180 | 5~6 | 22 | 22 |
| 25 | 1 | 180 | 5~6 | 22 | 22 |
| 32 | 1.25 | 200 | 5~6 | 22 | 22 |
| 40 | 1.5 | 210 | 5~6 | 22 | 22 |
| 50 | 2 | 220 | 5~6 | 22 | 22 |
| 65 | 2.5 | 245 | 5~6 | 22 | 22 |

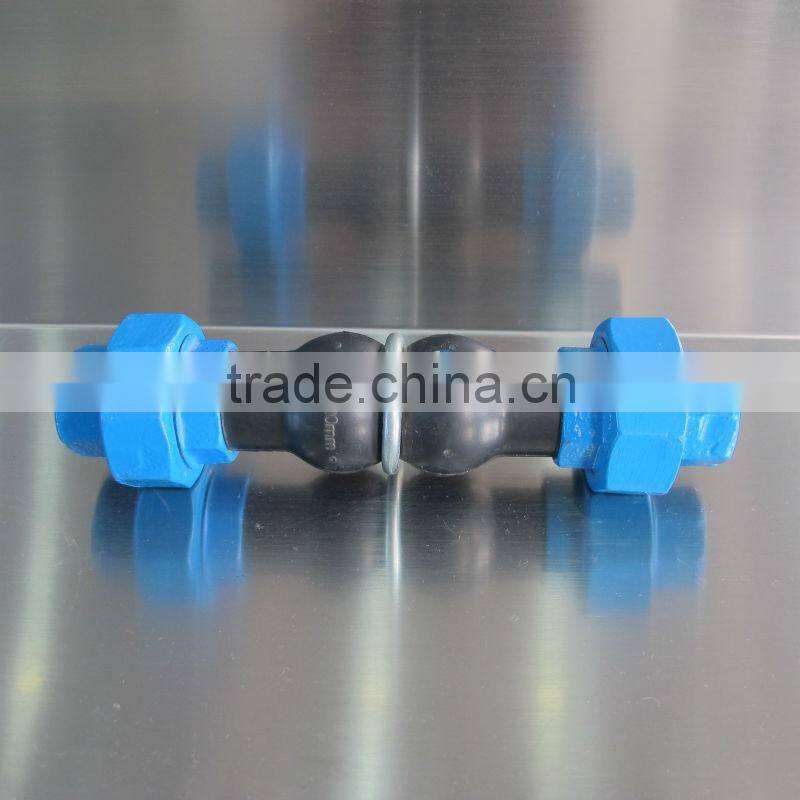

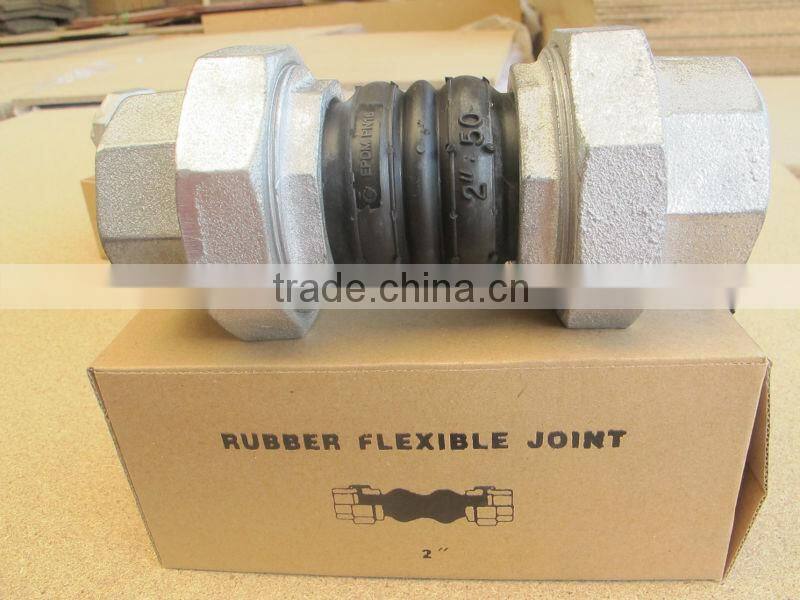

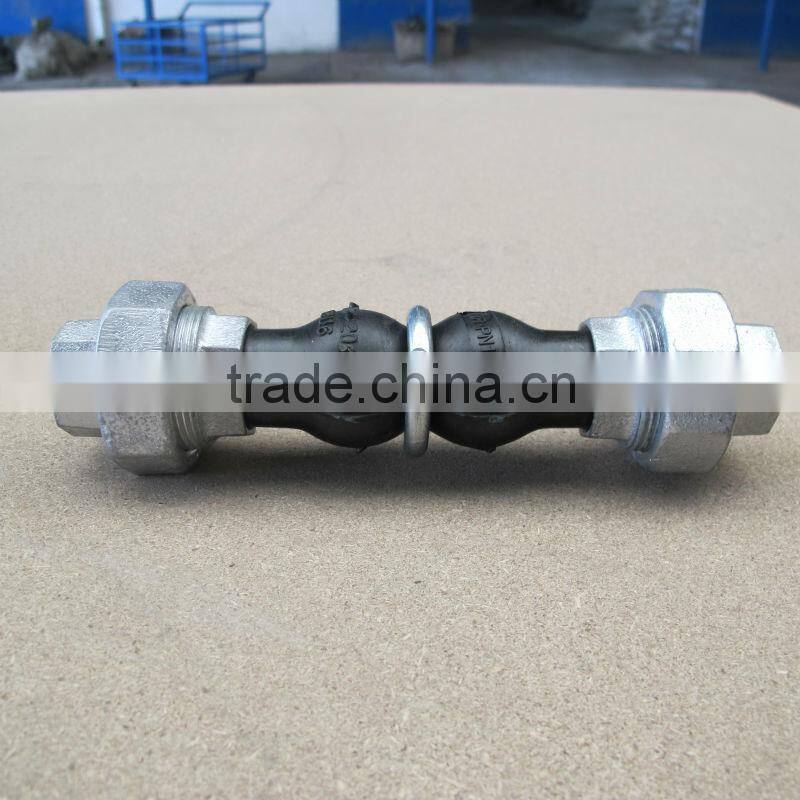

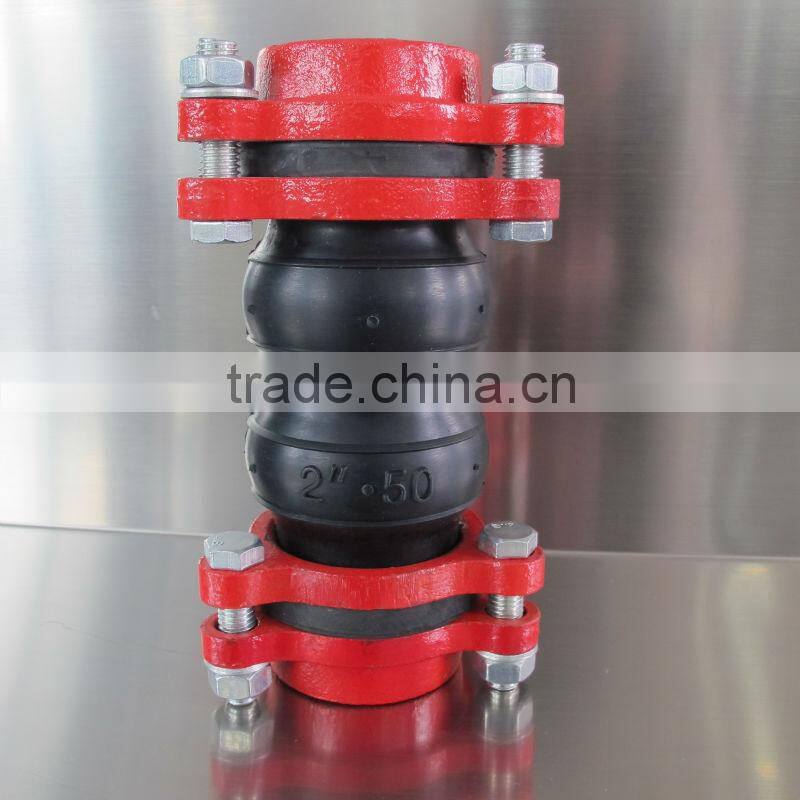

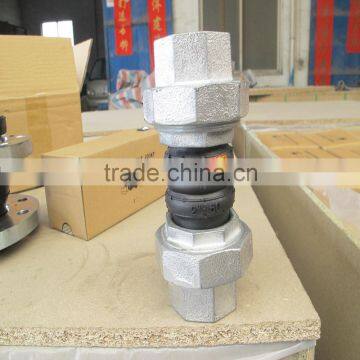

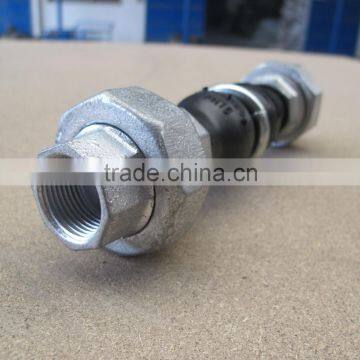

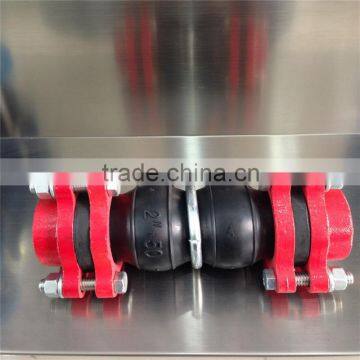

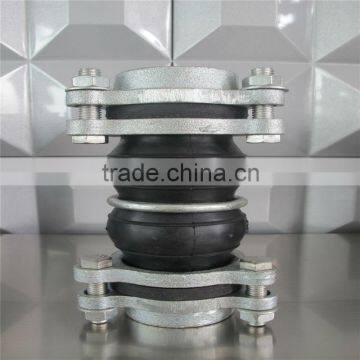

Threaded rubber expansion joint detail photos
Packaging :
1.Inner package:carton case
2.Outer package:wooden case
Shipping:
1.Lead time: about 25-30 days after order is confirmed.
2.If the order is urgent, we will try to give the best delivery time;
3.Our delivery time is accurate and fast, it is one of our advantages;
4.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on time.
5.There are many kinds of transport , depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
About us:
Gongyi Huayuan Water supply Equirement Co.,Ltd. is a leading manufacturer of rubber flexible joint in china, we have:
(1) Strong R&D strength;
(2) Strict Quality Control System;
(3) Perfect Test System;
(4) Professional After-sale Service Team;
Factory
. Gongyi Huayuan Water Supply Equirement Co.,Ltd. is specialized in water supply and drainage equipment, pipe and part.
Through 20 years production history,it is solid in strength and good in quality.
. At present,our products have over 30 types such as JGD flexible synthetic single sphere and double sphere rubber expansion joint,
thread joint, unequal diameter,DN15-DN3000 and so on.
.Our products are subject to stringent checks, so you can rest assured that the quality of products .And our products have gotten high praise from clients domestic and overseas.
Customer test process
Our low price, good quality products and promised delivery time brought the trust of client globally. If you are interested in our products, kindly please inform me anytime. We are glad to prepare a quotation for perchasing referance and quite sure our offer will extend an added advantage over to your current source of supplies. Furthermore, we are also able to process order as per your demand.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And What's your shipment and delivery time?
A:By sea or air.Normally 7~14 Days for delivery ,according to your order quantity.
