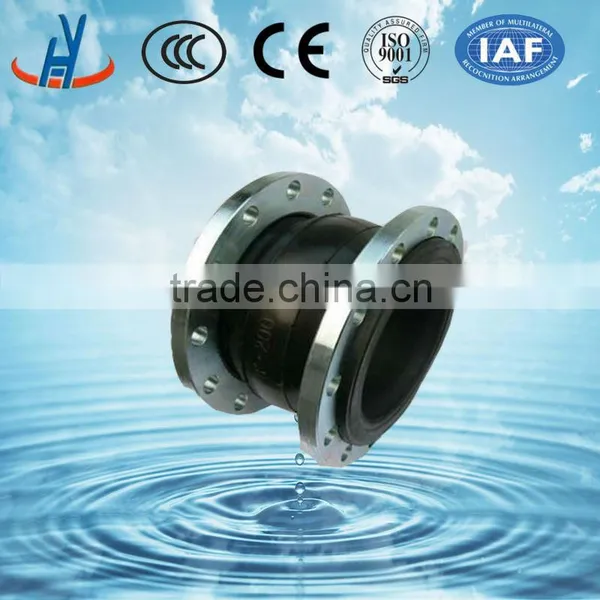

epdm single sphere rubber flexible joint
♦ Huayuan rubber joint is also called expansion joints or rubber expansion joint. It is a pipe joint of high-flexibility, high-gas tightness, resistance to medium and climate. rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements of industrial plant and equipment.
♦These include:
Accommodating for pressure loads.
Neutral axial, lateral and angular stress.
Reducing noise.
Isolating sources of vibration.
Compensating for misalignment at plant start up.
Prolonging the life of motive equipment.
They are used in all systems transporting fluids, slurries or gases under pressure, at ambient pressure or under vacuum over a wide range of temperatures.
♦Application areas are:
Air conditioning, heating and ventilating systems in industrial buildings, hospitals, hotels and on board ships.
Central and ancillary power generating stations in industrial buildings, factories, ships and off-shore.
Sewage disposal and water treatment plant, pumps, etc.
Process piping in pulp and paper manufacture.
♦ Advantage :
Small volume, light weight, good flexibility, easy installation and maintenance
Technical Conditions :
item |
type |
JGD-1 |
JGD-2 |
JGD-3 |
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
main connecting dimension
nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1 1/4 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

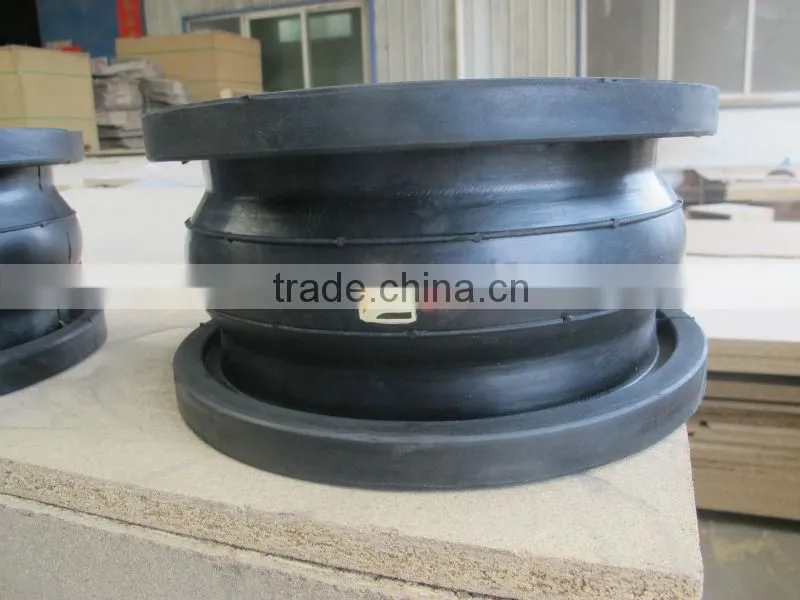

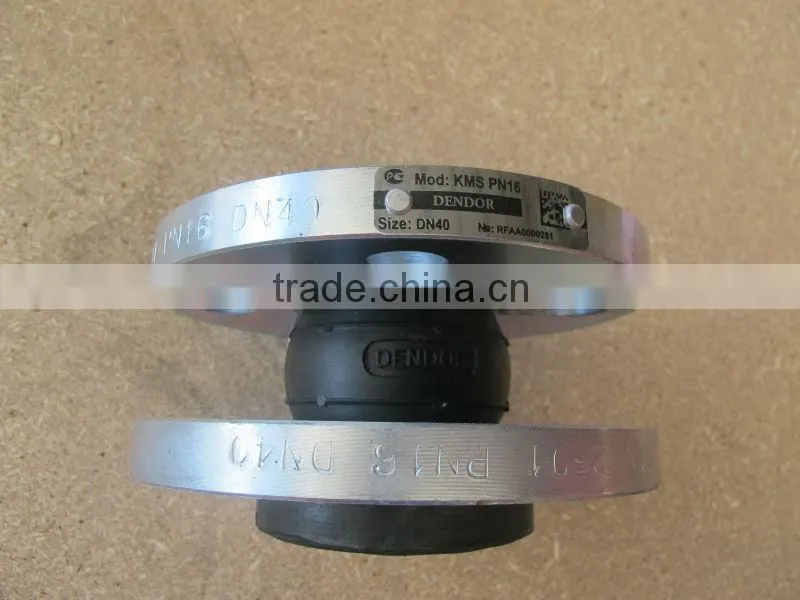

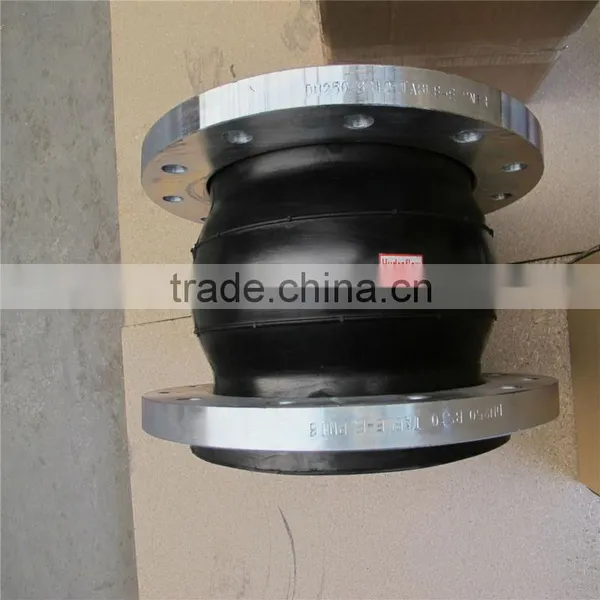

Details photos show of rubber joint
♦ Installation Instruction of Flexible Compound Rubber Joint
I. Installation over displacement limit is not allowed when installing the flexible compound rubber joint .
II. For ground-horizontally ,suspense and vertically installed rubber joints with over 1.0Mpa pressure,both sides of the pipeline shall have support or support bracket,to avoid fall or damage.
III.The force of fixing support or bracket shall be greater than the axial force of working.Otherwise the anti-fall devise is required .
IV. It shall install the GB/T9115.1(RF) standard flange(small diameter flange) when installing the corresponding flange of flexible compound rubber joints.The size of flange D2 and do shall not be too small for preventing the leakage of sealing face.
V. It shall screw down symmetrically and gradually when installing the flange screw of flexible compound rubber joint,To avoid the partly leakage or damaging the sealing face of the rubber joint.
VI. When the rubber joint is installed vertically or in suspense with over 1.0Mpa pressure ,the screw shall be installed with gasket for preventing partly leakage due to loosened screw.
VII.The flexible compound rubber joint shall have fixing support when vertical installation is made .Heavy press on the rubber joint is forbidden .
♦ Huayuan each rubber joint Conventional Packaging : First is carton case,then is wooden case. we can according to your requirements, If you need special packaging.
